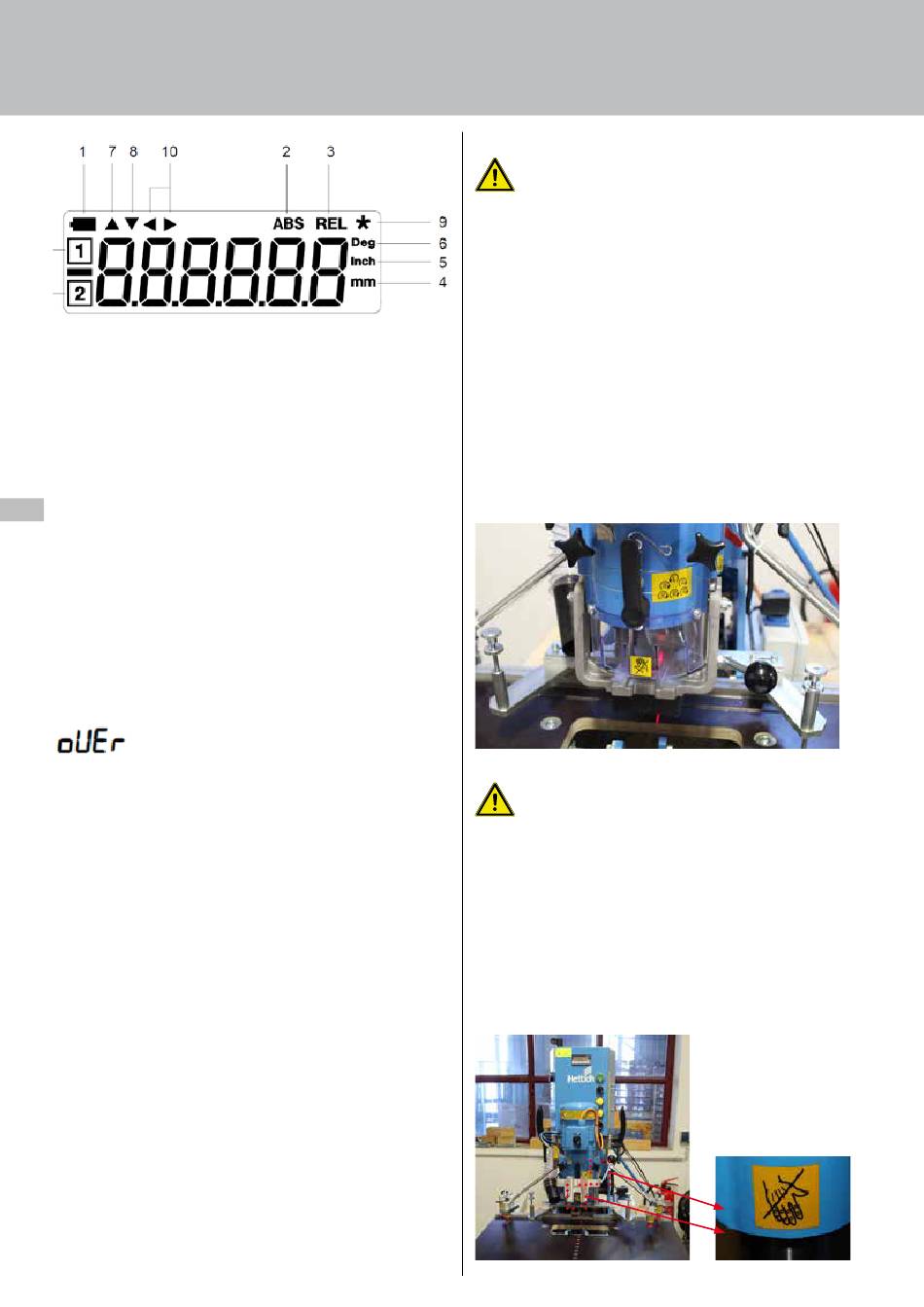

1. Low battery indicator: flashes when the battery charge falls
below a certain level - the display remains switched on for
one month before the battery runs down completely.
2. Display of absolute measured value.
3. Display of relative measured value.
4. Display for mm.
5. Display for inches.
6. Display for angle.
7. Display of positive offset shows that the dimension
en
is correct with a positive offset.
8. Display of negative offset shows that the dimension
is correct with a negative offset.
9. Display for a value change flashes while programming.
10. Display for the zero points shows that a change of zero
points is active.
11. Display for zero point 1.
12. Display for zero point 2.
Error message
T he value currently being displayed exceeds the maxi-

mum possible display value (possible range -99999 to
99999).
106 106

Setting

WARNING
Setup work may only be performed by qualified staff
who, on the basis of their specialised training, experience
and instruction, possess sufficient knowledge of
• safety rules,
• accident prevention regulations,
• guidelines and generally accepted codes of practice.
These qualified staff must be authorised to perform
setting up work by the person responsible for the
machine's safety.

5. Guards

Separating protective guards complying with EN 953 are
installed on the machine to protect staff from mechanical
hazards.
Warnings / pictograms are also provided on the machine.
Fig. 6: Transparent cover
WARNING
The guards must not be modified, tampered with or
taken out of operation.
The machine has no emergency stop button or
emergency stop facility. This means it is necessary to
take particular care when handling and working with
this machine.
Labelling
Area: entire machine
Warning of the risk of hands being crushed
Fig. 7: Labelling – entire machine
