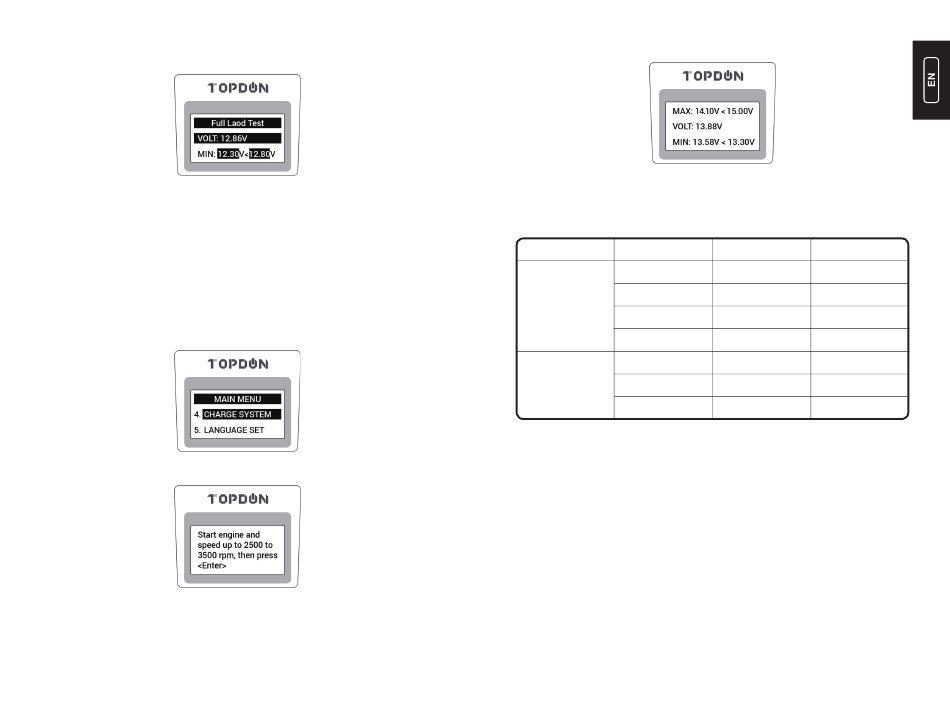

3) Press "ENTER" to complete FULL LOAD TEST. On the display is current volt:12.86V, standard
volt: 12.80V, and minimum volt: 12.30V (for 24V batteries it will be 25.60V).
4) Explanation for Max Work Load test results.
If the display volt value is above 12.8V (for 24V batteries it will be 25.60V), the load
system is working well.
If the display volt value is below 12.8V (for 24V batteries it will be 25.60V), please
check the engine belt and if electrical short circuit.
5. Charging Test
5.1 Before Test
The engine must be ON during test.
5.2 Steps
1) Select the "4. CHARGE SYSTEM" test on the main menu.
2) Press and hold "ENTER", and turn on loads and speed up to 2500-3500rpm.
10
3) Press "ENTER" again to test charging system.
4) Press the "ESC" to exit.
5) Explanation for charging system test results.
Please refer to the chart below to confi rm the test results.
Reference Table (for 12V battery)
12V Battery
Status
Voltage
13.3V-15.0V
13.0V~13.2V
Headlamps & A/C
OFF (Depress
Accelerator)
12.8V~12.9V
<12.7V
13.4V~14.6V
Headlamps & A/C
ON (Depress
13.2V~13.3V
Accelerator)
<13.1V
24V Battery
Engine Performance
Voltage
26.5V~30.0V Normal
26.0V~26.4V General
25.6V~25.9V Attention
<25.5V Inspection ASAP
26.8V~29.2V Normal
26.4V~26.7V Attention
<26.3V Inspection ASAP
