e expansion card riser
f heat sink and processor
g iDRAC port card, if installed
h internal dual SD module, if installed
Steps
1 Disconnect all cables from the system board.
CAUTION: Take care not to damage the system identification button while removing the system board from the chassis.
2 Remove the screws on the system board, and slide the system board toward the front of the chassis.
3 Hold the system board by the touch points and lift it out of the chassis.
CAUTION: To prevent damage to the system board, do not lift the system board by holding a memory module, processor, or
other components; hold the system board by its edges only.

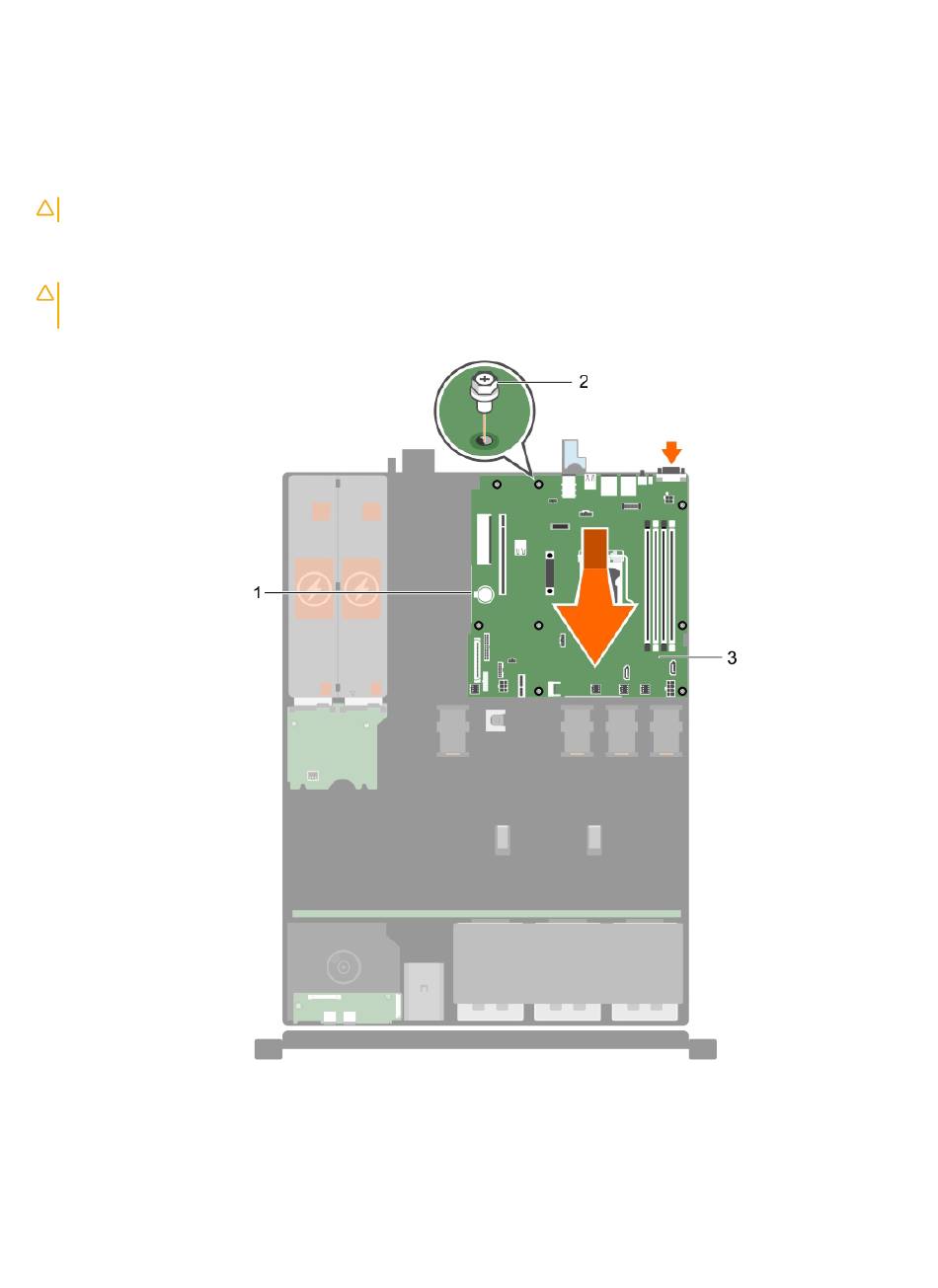

Figure 105. Removing the system board
1 touch point (2)
152 Instalación y extracción de los componentes del sistema
2 screw (8)
