Steps
1 Remove the screw from the PERC card lock.
2 Turn the PERC card lock to disengage the lock from the PERC card.
3 Push the PERC card lock until the tab on the PERC card lock clicks into the slot on the chassis.

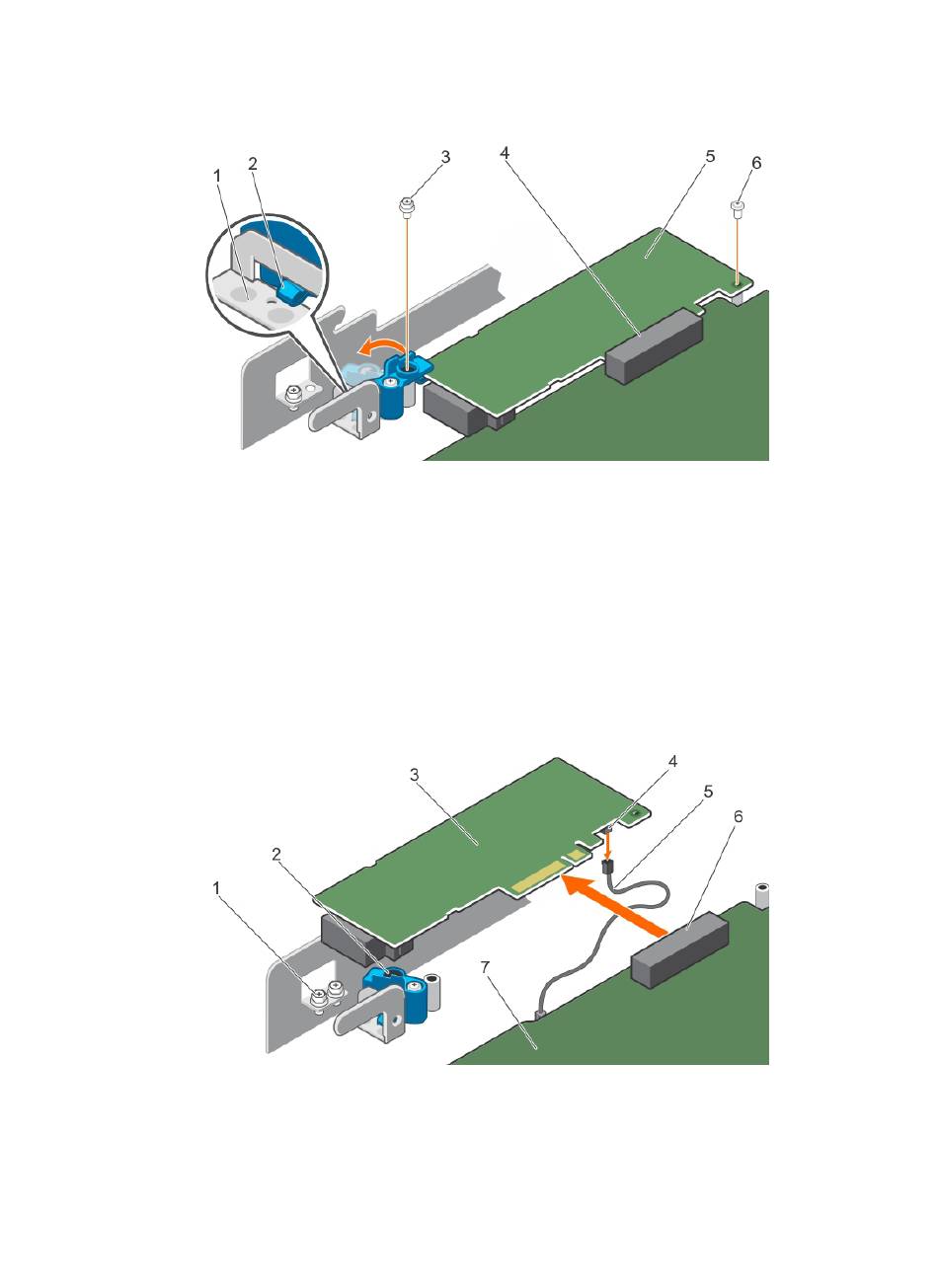

Figure 60. Opening the PERC card lock
1 slot on the chassis
3 PERC card lock
5 PERC card
7 screw securing the PERC card to the chassis
4 Remove the screw that secures the PERC card to the chassis.
5 Disconnect the PERC card LED cable from the system board.
6 Hold the PERC card by the edges and pull the PERC card to disengage it from the PERC card slot.
7 Lift the PERC card away from the chassis.
Figure 61. Removing the internal PERC card
1 screw (2)
3 PERC card
5 PERC card LED cable
106 Instalación y extracción de los componentes del sistema
2 tab on the PERC card lock
4 screw on the PERC card lock
6 PERC card slot
2 PERC card lock
4 LED cable connector on the PERC card
6 PERC card connector
