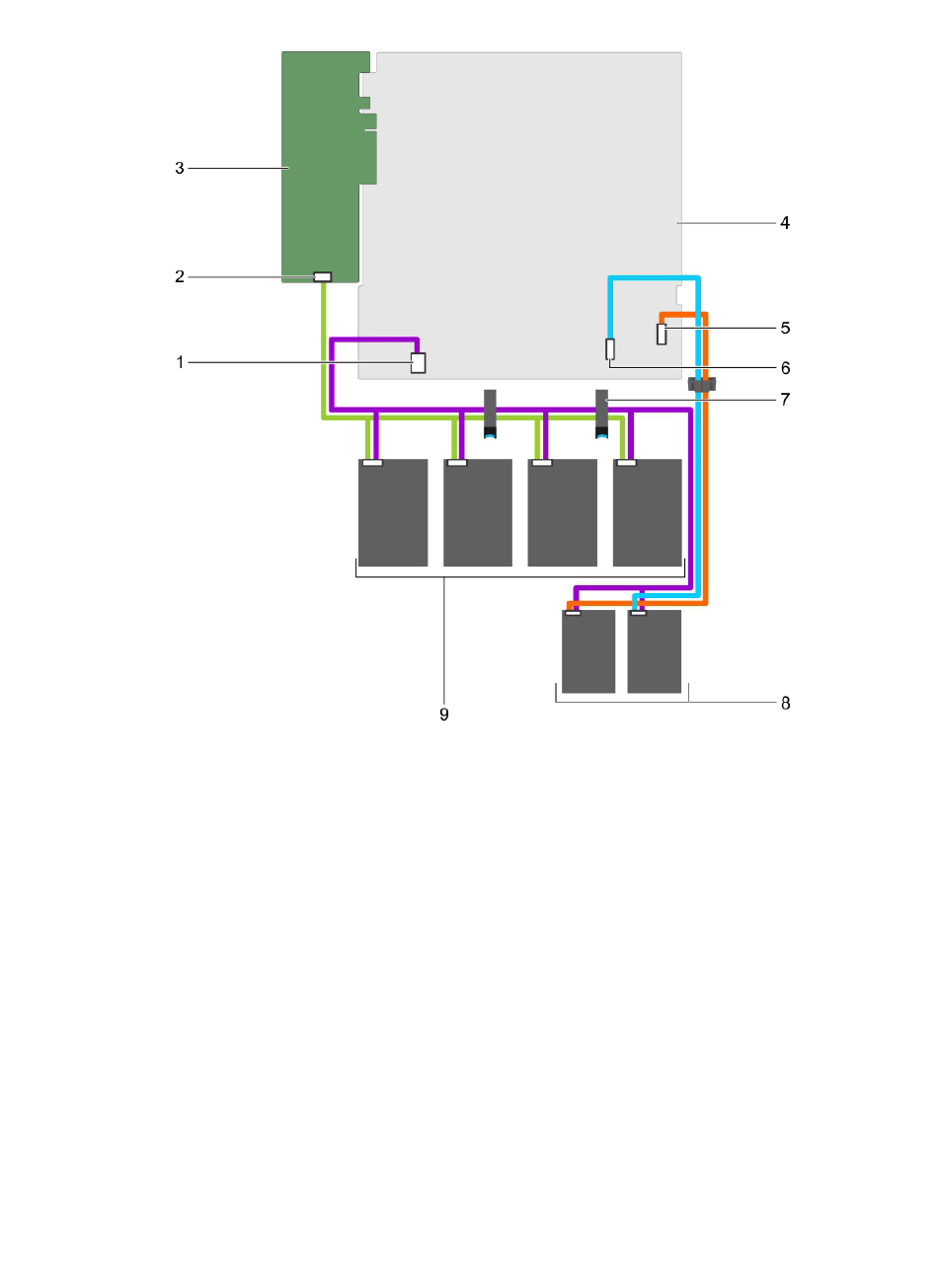

Figure 91. Cabling diagram—Four 3.5-inch cabled hard drives, two 1.8-inch SSDs, and PERC card
1 hard drive/SSD power cable connector on the system
board
3 PERC card
5 optical drive/solid state drive SATA connector on the
system board
7 cable routing latch
9 cabled hard drive (4)
Next steps
1 Install the hard drive backplane.
2 Follow the procedure listed in the After working inside your system section.
Related links
Extracción de un portaunidades de disco duro de intercambio directo
Installing the hard drive backplane
138 Instalación y extracción de los componentes del sistema
2 Connector A on the PERC card
4 system board
6 SATA SSD connector on the system board
8 1.8-inch SSD (2)
