Installation Instructions

Extended Programming Capabilities

The CM2C40 allows for extended programming to make the
mount compatible with other devices such as a Universal
Remote or other control devices through a serial connection.
Setting or changing the configuration of the CM2C40 is done
through the remote control provided with the mount.
The remote control has a range of 20-30ft (6-9m), and is
powered by 2 AAA batteries that are accessed from the back of
the remote.
NOTE:
If operation of the mount is required at a greater
distance than remote control will allow, the mount can
be controlled through a hardwired switch or similar
device. See Dry Contact Closures and (See figure
31) .

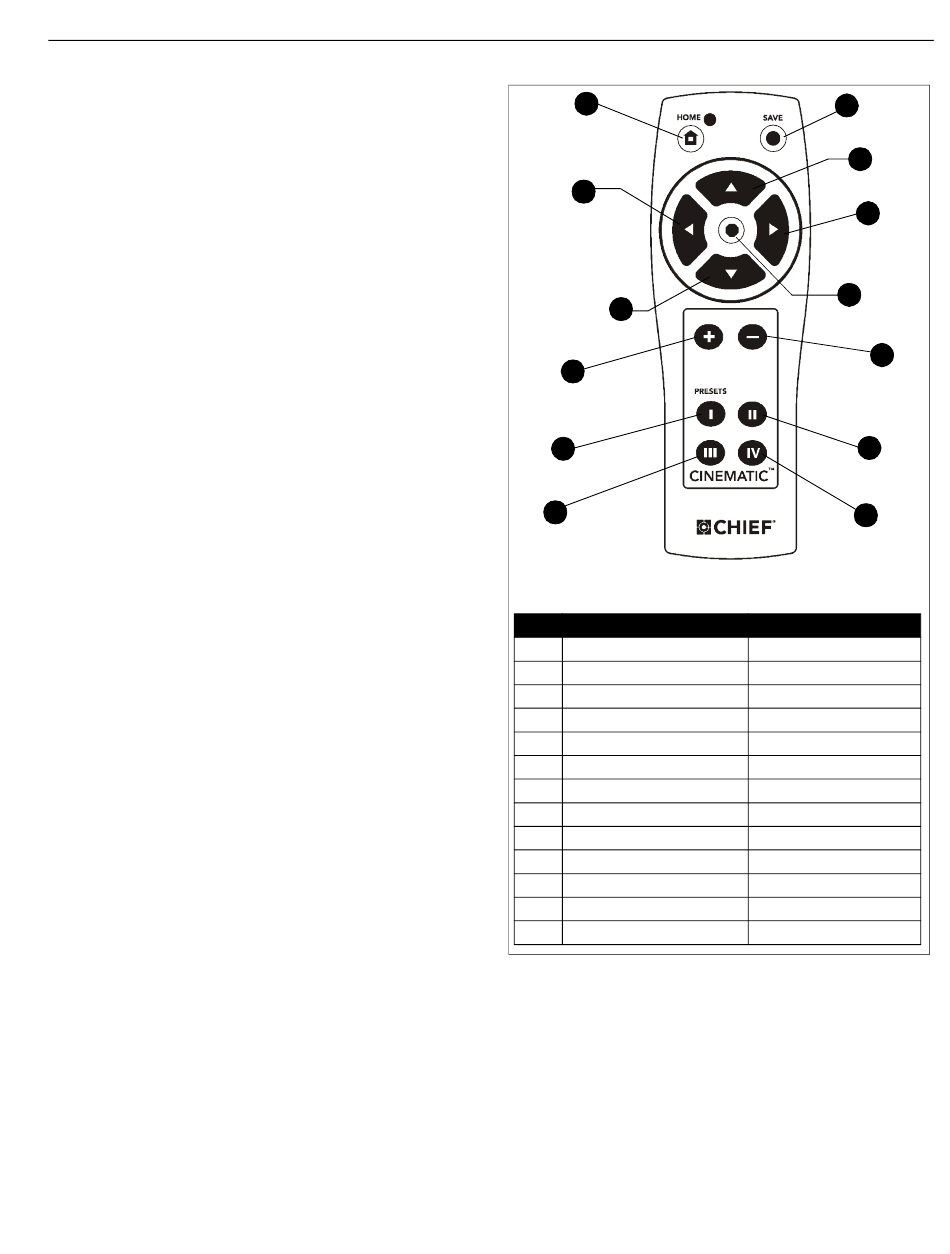

The following table and illustration identify mount functionality
and response by button on the remote control(s).
Normal Operating Mode
1
4
7
8
10
12
KEY FUNCTION
1 NOT USED
2 NOT USED
3 EXTEND DISPLAY
4 NOT USED
5 STOP
6 NOT USED
7 RETRACT DISPLAY
8 NOT USED
9 NOT USED
10 NOT USED
11 NOT USED
12 NOT USED
13 NOT USED
Figure 28
CM2C40
2
3
6
5
9
11
13
REQUIRED ACTION
N/A
N/A
PRESS
N/A
PRESS
N/A
PRESS
N/A
N/A
N/A
N/A
N/A
N/A
