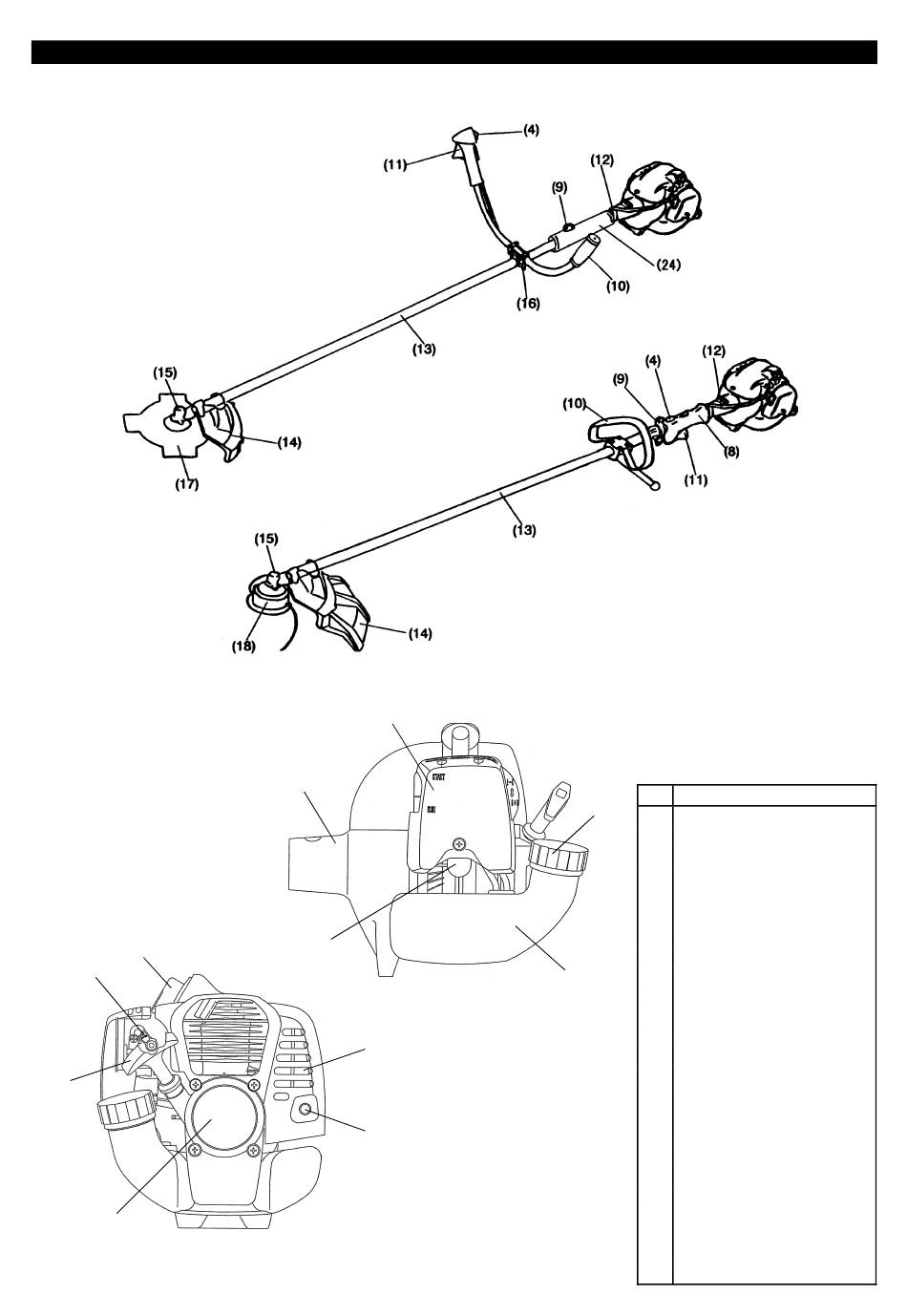

DESIGNATION OF PARTS

RBC2500 / RBC2500G
U Handle Type
(5)
(22)
(20)
(2)
(3)
(7)
(21)
(6)
(23)
8
RBC2510 / RBC2510G
Loop Handle Type
GB DESIGNATION OF PARTS
(19)
1 Fuel Tank
2 Rewind Starter
3 Air Cleaner
4 I-O Switch (on/off)
5 Spark Plug
6 Exhaust Muffler
7 Clutch Case
8 Rear Grip
(1)
9 Hanger
10 Handle
11 Control Lever
12 Control Cable
13 Shaft
14 Protector
15 Gear Case
16 Handle Holder
17 Cutter Blade
18 Nylon Cutting Head
19 Fuel Filler Cap
20 Starter Knob
21 Primmer Pump
22 Choke Lever
23 Exhaust Pipe
