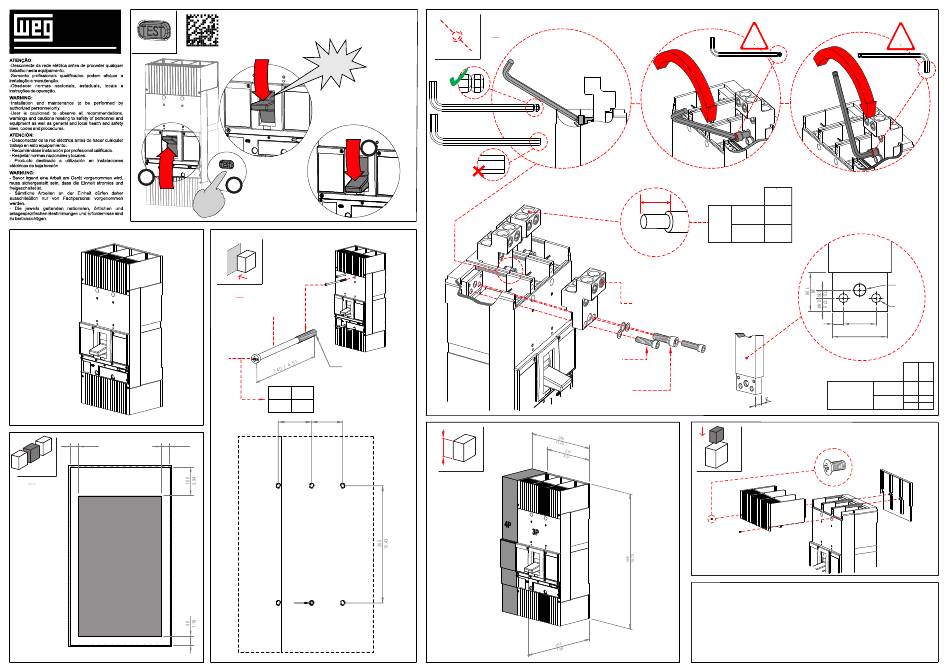

WEG DWA1600 Quick Start Guide

DWA1600
DWB1600
1
ON
10005201849.03
www.weg.net
WEG Automação
30 30
1.18 1.18
mm
in
DWA1600
DWB1600
CLACK
OFF
3
TRIP
2
mm
in
PHILLIPS #2
5 Nm
44 lb.in
M8
3P 4P
4X 6X
74 70
2.91 2.76
4P 3P
M8
mm
in
38 mm
1,5"
185...240 mm²
ALLEN #10
55 Nm (487 lb.in)
ALLEN #8
30 Nm (266 lb.in)
ALLEN #10
50 Nm (443 lb.in)
!
s
Cabo
1250A
4X185 mm²
Cable
Cable
1600A
4X240 mm²
Kabel
10 30
0.39 1.18
50
1.97
TOL: ±1mm
±0.04"
Barra de cobre
1250A
Copper bar
Barra de cobre
1600A
Stromschienen
PHIlLIPS #1
0,7 Nm (6.2 lb.in)
WEG IMPORTERS IN THE EUROPEAN UNION
AUSTRIA - WATT DRIVE ANTRIEBSTECHNIK GMBH - Wöllersdorfer Str. 68, 2753 Markt Piesting,
Wiener, Austria; BELGIUM - WEG BENELUX S.A. - Rue de l'Industrie 30/D, 1400 Nivelles, Belgium;
FRANCE - WEG FRANCE SAS - 13 Rue du Morellon, 38297 Saint Quentin Fallavier, France; GERMANY
- WEG GERMANY GMBH - Geigerstraße 7, 50169 Industriegebiet Türnich 3, Kerpen, Germany; ITALY -
WEG ITALIA S.R.L. - Via Viganò de Vizzi, 93/95, 20092 Cinisello Balsamo, Milano, Italy; NETHERLANDS
- WEG NETHERLANDS - Hanzepoort 23C, 7575 DB Oldenzaal, Netherlands; PORTUGAL - WEG
EURO-INDUSTRIA ELECTRICA S.A. - R. Eng. Frederico Ulrich 605, 4471-908 Maia, Portugal; SPAIN -
WEG IBERIA INDUSTRIAL S.L. - C/ Tierra de Barros, 5-7, 28823 Coslada, Madrid, Spain; SCANDINAVIA
- WEG SCANDINAVIA AB - Box 27, 435 21, 43533 Mölnlycke, Sweden; UNITED KINGDOM - WEG (UK)
LTD - Broad Ground Road, Redditch B988YP, Worcestershire, United Kingdom.
Information valid for WEG Group Importers.
!
Ø12.5+1mm
Ø0.49+0.04"
Ø10.5+1mm
Ø0.41+0.04"
E
QTY
(mm)
8 2
5 4
10 2
