Operating Instructions
Dual-Unit Chargers are intended for use only with the authorized
Motorola battery and power supplies listed in Table 1.1 and Table
1.2; usage with unauthorized products may prevent proper
operation and may damage the device.
The battery charger will accommodate a WRSM with an attached
battery or battery alone in either pocket. To charge a battery, use the
following procedure:
1
Plug the power supply cord into the barrel connector on the back of
the charger.
2
Plug the power supply into the appropriate AC outlet. The charger
LED will flash single green once to indicate a successful power-up.
3
Insert a WRSM with battery into the charger pocket by:
a
Aligning the groove on each side of the battery with the
corresponding raised rail on each side of the charger pocket.
b
Sliding the WRSM with battery into the charger pocket,
ensuring complete contact between the charger and battery
contacts.
4
When the WRSM with battery is properly seated in the pocket, the
charger LED will light in accordance with Table 1.3.
5
Insert a battery into the charger pocket by:
a
Aligning the slot on each side of the battery with the
corresponding raised rail on each side of the charger pocket.
All manuals and user guides at all-guides.com
6
NOTE:
b
Sliding the battery into the charger pocket, ensuring complete
contact between the charger and battery contacts.
When the battery is properly seated in the pocket, the charger LED
will light in accordance with Table 1.3.
Charge new batteries overnight to ensure full charge. To
minimize charge time, it is recommended to turn the WRSM
OFF. The Dual-Unit Charger is not designed to accommodate
the alkaline battery tray.

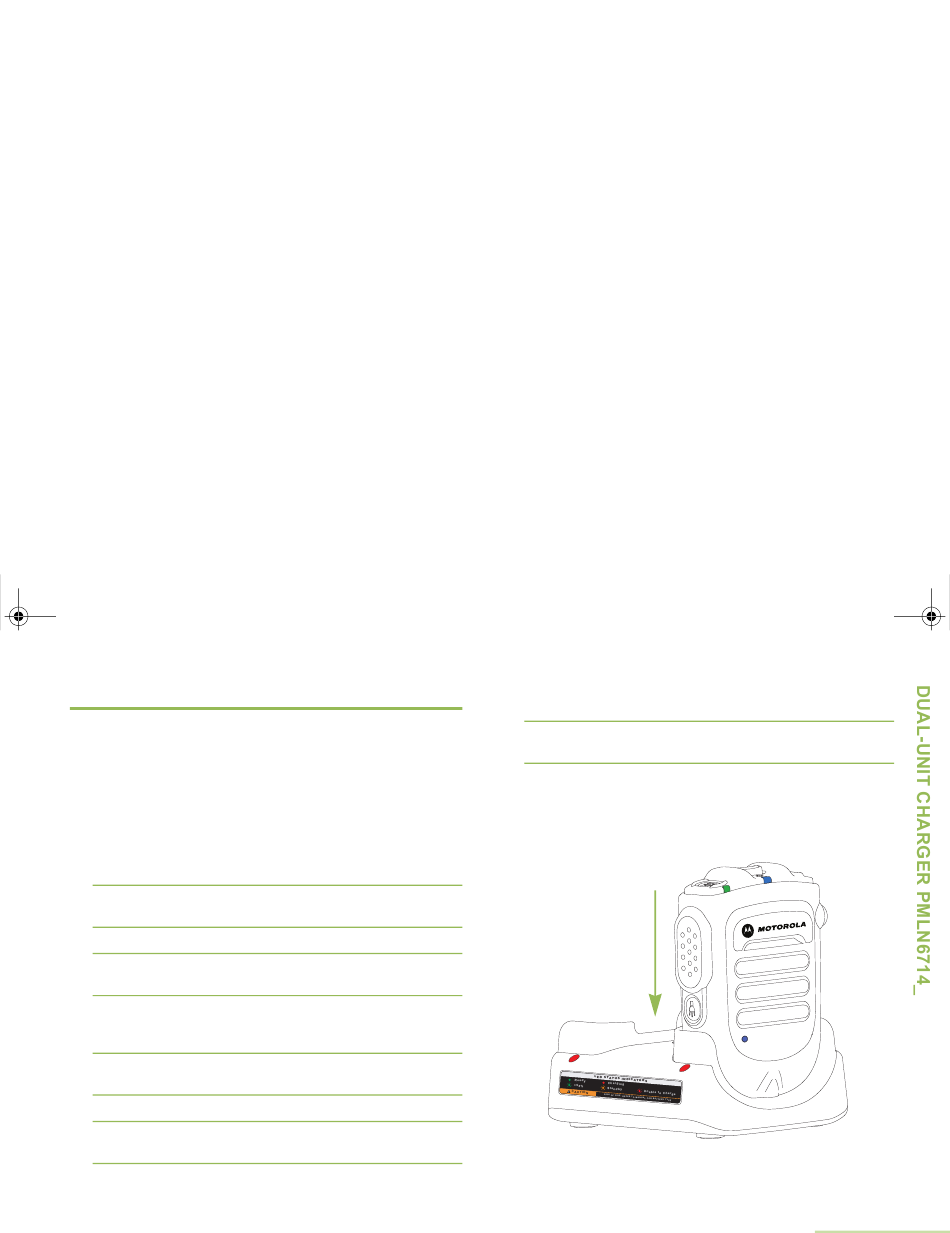

Figure 4.3: Charging position of the WRSM on a Dual-Unit Charger
