E.g. How to use the software "Cakewalk" with MIDI function?
Download the software Cakewalk on your computer, and then find the Edit in the menu bar and select Setting -
MIDI - Equipment. After entering the name of the piano "POP Piano", you can connect the piano with your
computer, and use the MIDI function. If your computer is Windows 10 system, after turning on the software,it
will pop-up window to ask you if you would like to connect it.
Note: this electronic piano is not equipped with any computer cable and MIDI editing software. Users need to
buy it by themselves.
If the computer cannot read the sound of the keyboard, please check whether the cable is plugged in
completely. If it still cannot be read,please contact us in time and inform us of the computer system and
software name you are using.

2. Performing and operating

1. Power switch:

Turn the power switch to the 'On' position, and the LED light will be on. It is now inplaying mode with 'Piano'
tone. Each time you restart, the instrument will automatically reset to '000' (Piano tone) and '000'
(Club pop rhythm).
The keyboards that will be used are as follows:
power switch: the first button in the upper left corner

2. Select tones:

There are 140 kinds of realistic tones, which can be chose freely from '000' to '139'.Before selecting, please hold
the 'Function' selector and press the 'Tone' selector, then choose the number. E.g. Select '018' tone. Hold
'Function' selector and please do not release, then press 'Tone' selector→press number '0'→press number
'1'→press number '8'and release the 'function' selector. The instrument is with'018' tone. E.g. Select '113' tone.
Hold 'Function' selector and please do not release, then press 'Tone' selector→press number
'1'→press number '1'→press number '3'and release the 'Function' selector. The instrument is with '113' tone.

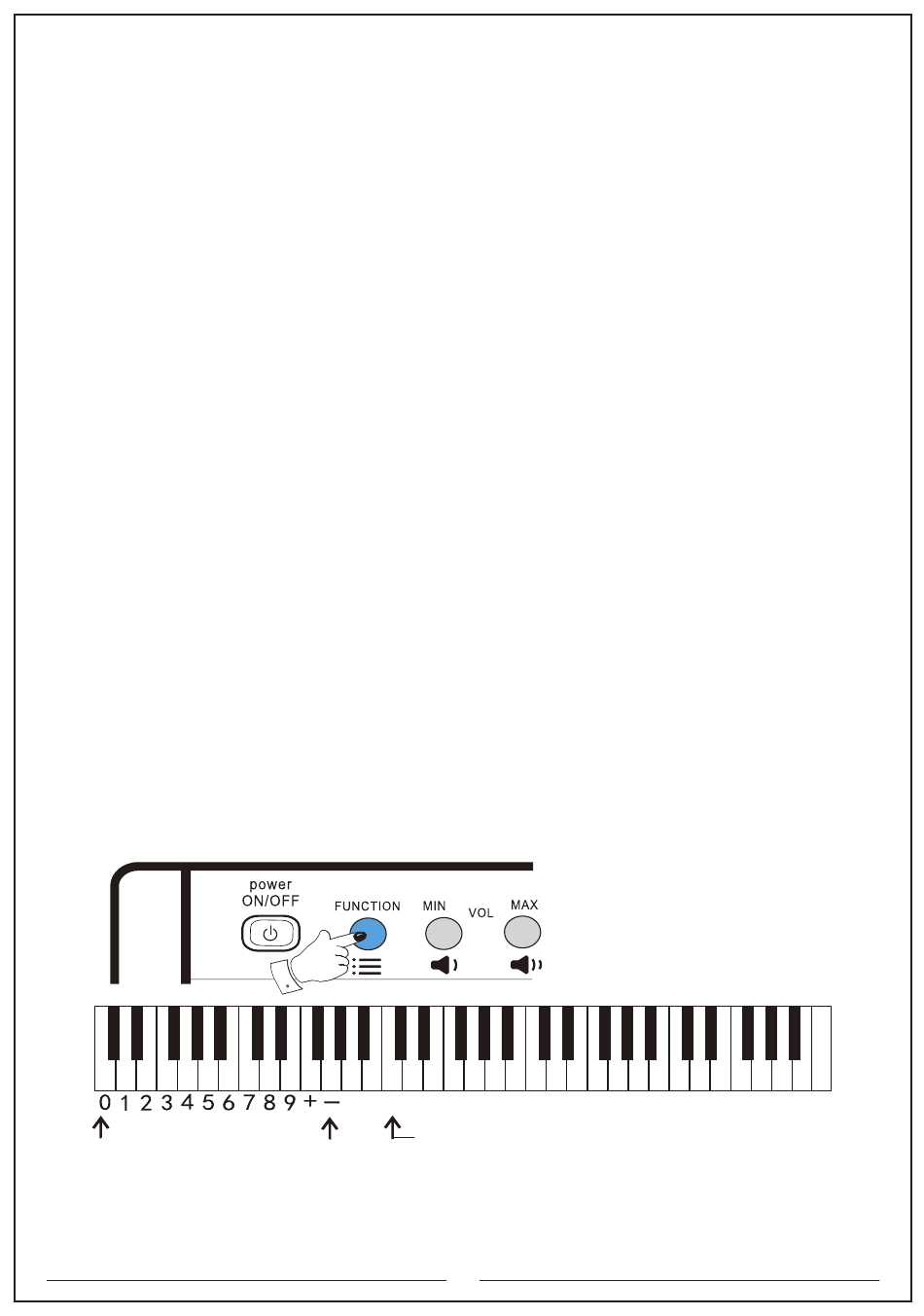

(See the figure below)
The keyboards that will be used are as follows:
power switch: the first button in the upper left corner Function key: the second button in the upper left c
orner Tone: the c1 key
Number: the C key to the e key
C D E F G A B c d e f g a b c
The numeric keyboard
3. Use of'+' and'-' buttons:
While holding the 'Function' selector, press the 'Tone' selector: in the toneselectionmode, press'+' button or'- '
button to increase or decrease the number of the tonein order until you select the desired tone.
d e f g a b c d
1 1 1 1 1 1 1 2 2
T one selection key
6
e f g a b c d e f
2 2 2 2 2 3 3 3 3
g a b c
3 3 3 4
