CAUTION: Two people are recommended for this step
STEP 5: ATTACH WALL CABINET SYSTEM TO THE CABINET
• Peel off the paper back from the EVA stickers (H), then
attach in appropriate position toward bottom of wall
cabinets' back. See Figure 6.1.
• Hang wall cabinets onto connecting brace (D)
and ensure the cabinet mounting bracket (C)
is properly seated on the connecting brace (D).
See Figure 6.2.
• Secure the wall cabinets to the backwalls by
positioning the L-shaped brackets (F&G) over the
holes on the pegboard (B) and the wall cabinet.
See Figure 6.3.
3in
H
E
DD
CC
BB
21in
D
E
• Attach with (3) M6 x 16mm bolts (AA) per L-shaped
brackets (F&G) and tighten with supplied hex key.
• Repeat this process for the other side of the pegboard
(B) to attach the wall cabinet to the cabinet (X).
NOTE: Wall cabinet may need to be hung on
connecting brace to determine the appropriate
position for EVA sticker.

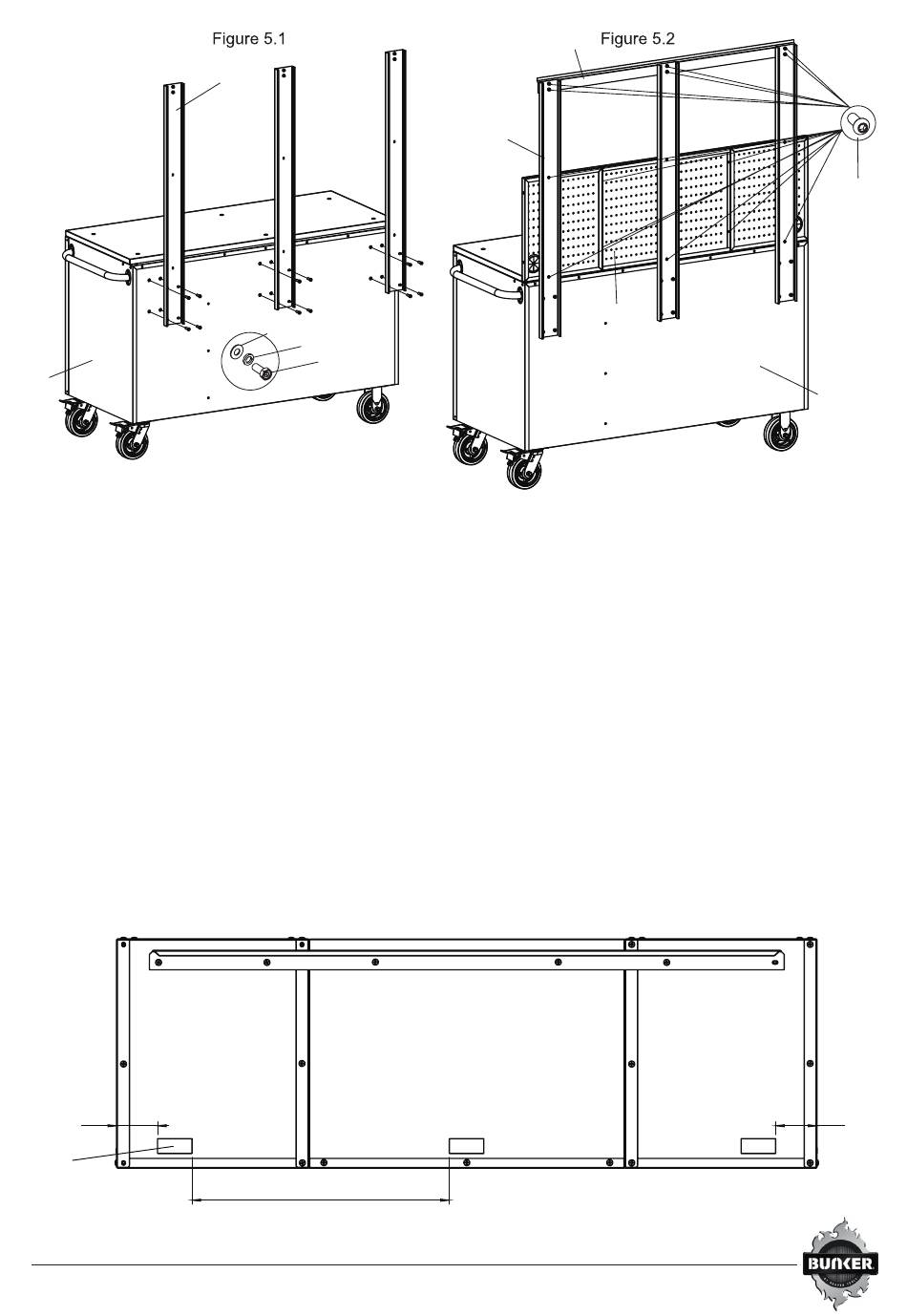

Figure 6.1
B
AA
X
3in
