43" Table, Monitor to Lift Column Installation
WARNING
RISK OF PINCHING OR CRUSHING USER
• Select hanger bracket hooks that will ensure monitor
screen is installed at proper height. Align monitor
screen, horizontally, on screen back plate. Make sure
that both hanger brackets are fully engaged and that
two (2) screenlocks are installed.
• Use care when lowering the lift column with mounted
monitor screen for the first time. Checkto ensure that no
interference will occur between themonitor screen and
cabinet structure.

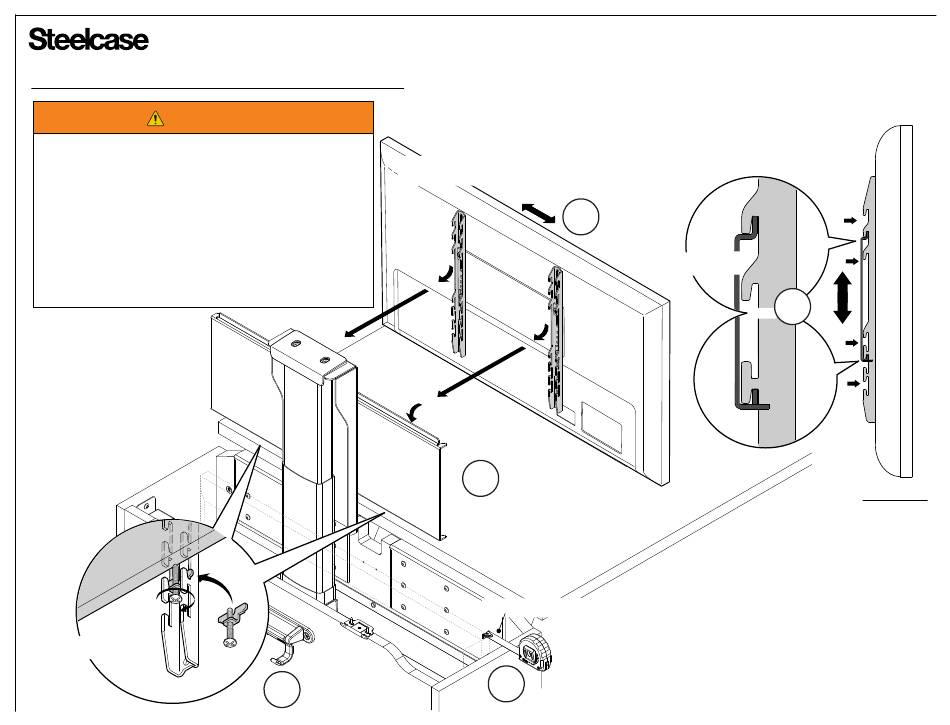

SCREEN LOCK (X2)
MONITOR SCREEN WITH
VERTICAL HANGER BRACKETS
5
3
SCREEN BACK PLATE
1
1" Minimum on both sides
4
TOP
HANGER BRACKETS
2
END VIEW
