17 Technical Information
Air Cooling Kit Installation TwisTorr 404 FS with TMP Rack Controller
To fix the fan to the pump bottom;
1
2
3

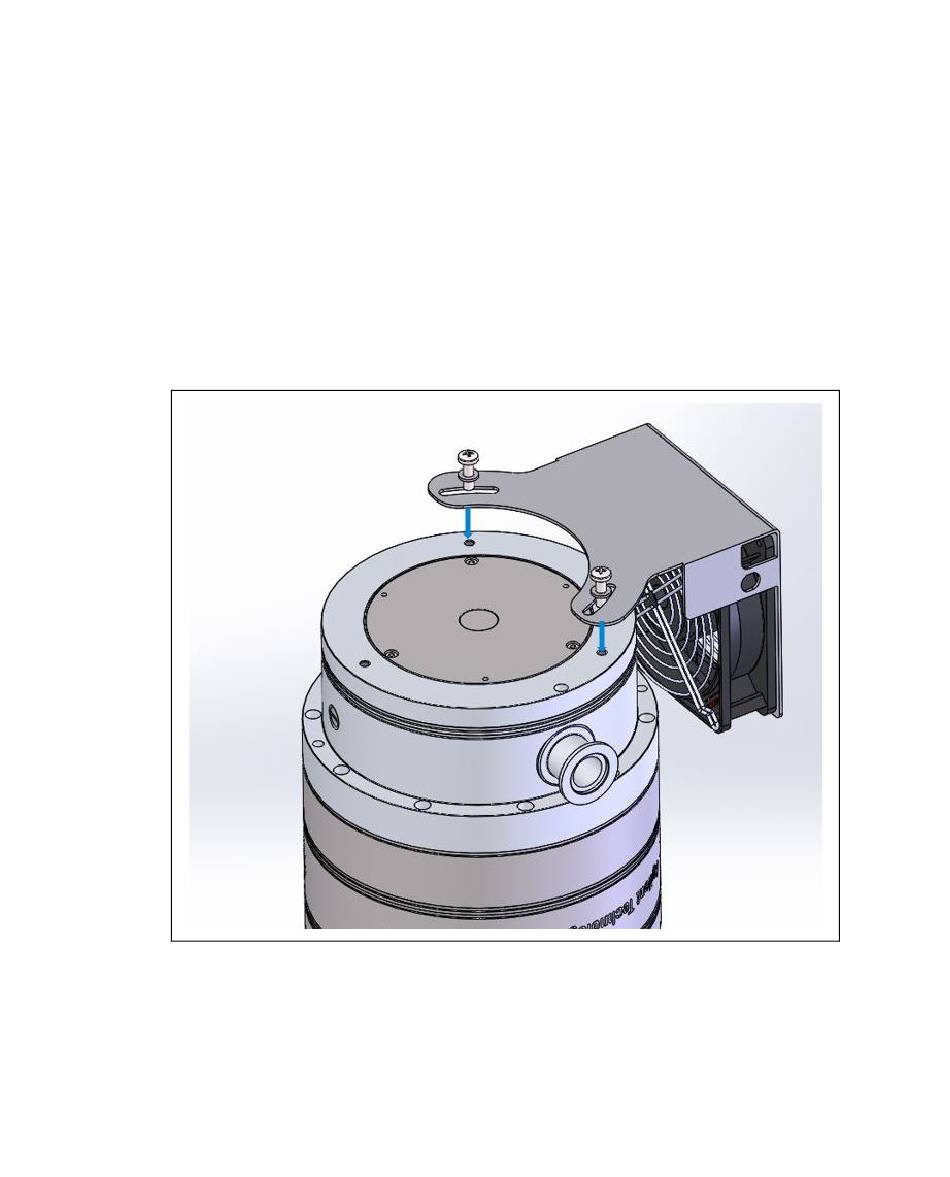

Figure 22
296/328
power input: 4.6 W

dimensions: 127 x 127 x 38 mm (5 x 5 x 1.5 in.)

Position it ensuring that the two slotted-holes in the sheet plate
are alined with the 2 holes in the pump base shown in the
image 22.
Then insert the respective washers and screws and tighten with
the supplied allen key.
Connect the fan to the controller.
