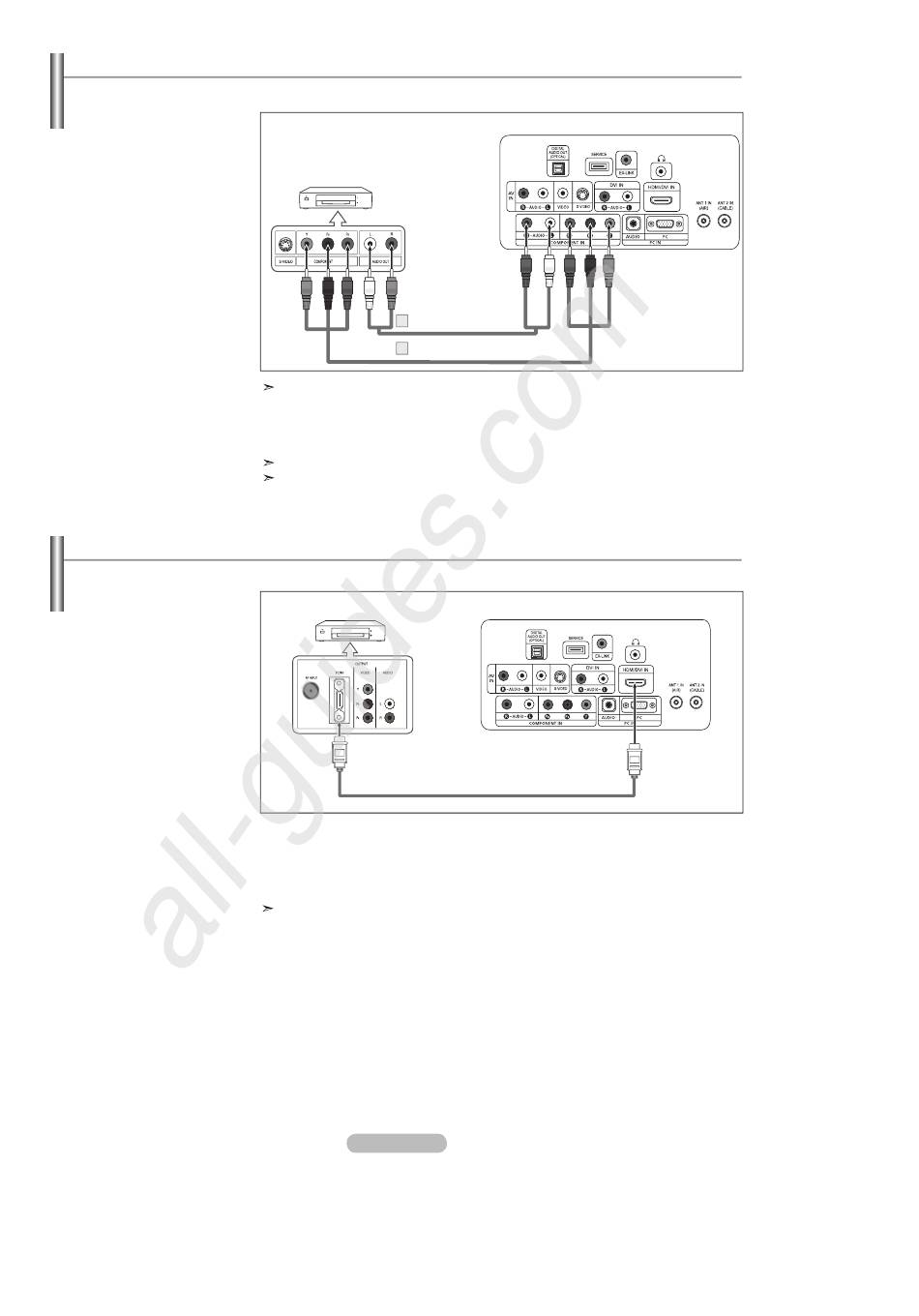

Connecting a dVd player/Set-top Box

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
. Connect a Component
Cable between the
COMPONENT IN(1 or 2)
[Y, P , P ] jacks on the TV
B R
and the COMPONENT
[Y, P , P ] jacks on the
B R
DVD/Set-top Box.
. Connect Audio Cables
between the COMPONENT
IN(1 or 2) [R-AUDIO-L]
jacks on the TV and the
AUDIO OUT jacks on the
DVD/Set-top Box

Connecting a dVd player/Set-top Box via hdmI

This connection can only be made if there is an HDMI Output connector on the external device.
. Connect an HDMI Cable
between the HDMI/DVI IN
connector on the TV and the
HDMI connector on the DVD
player/Set-Top Box
BN68-01184A-Eng.indd 9
All manuals and user guides at all-guides.com
dVd player/Set-top Box
 audio Cable (not supplied)
Component Cable (not supplied)

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and
Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections.
For example, if connecting the video cable to COMPONENT IN, connect the audio cable
to COMPONENT IN also.
Each DVD Player/STB has a different back panel configuration.
When connecting a DVD player/STB, match the color of the connection terminal to the
cable.
dVd player rear panel
hdmI Cable (not supplied)
What is HDMI?
• HDMI(High-Definition Multimedia Interface), is a next-generation an interface that
enables the transmission of digital audio and video signals using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size,
has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.
Each DVD player/STB has a different back panel configuration.
English -
tV rear panel
tV rear panel
