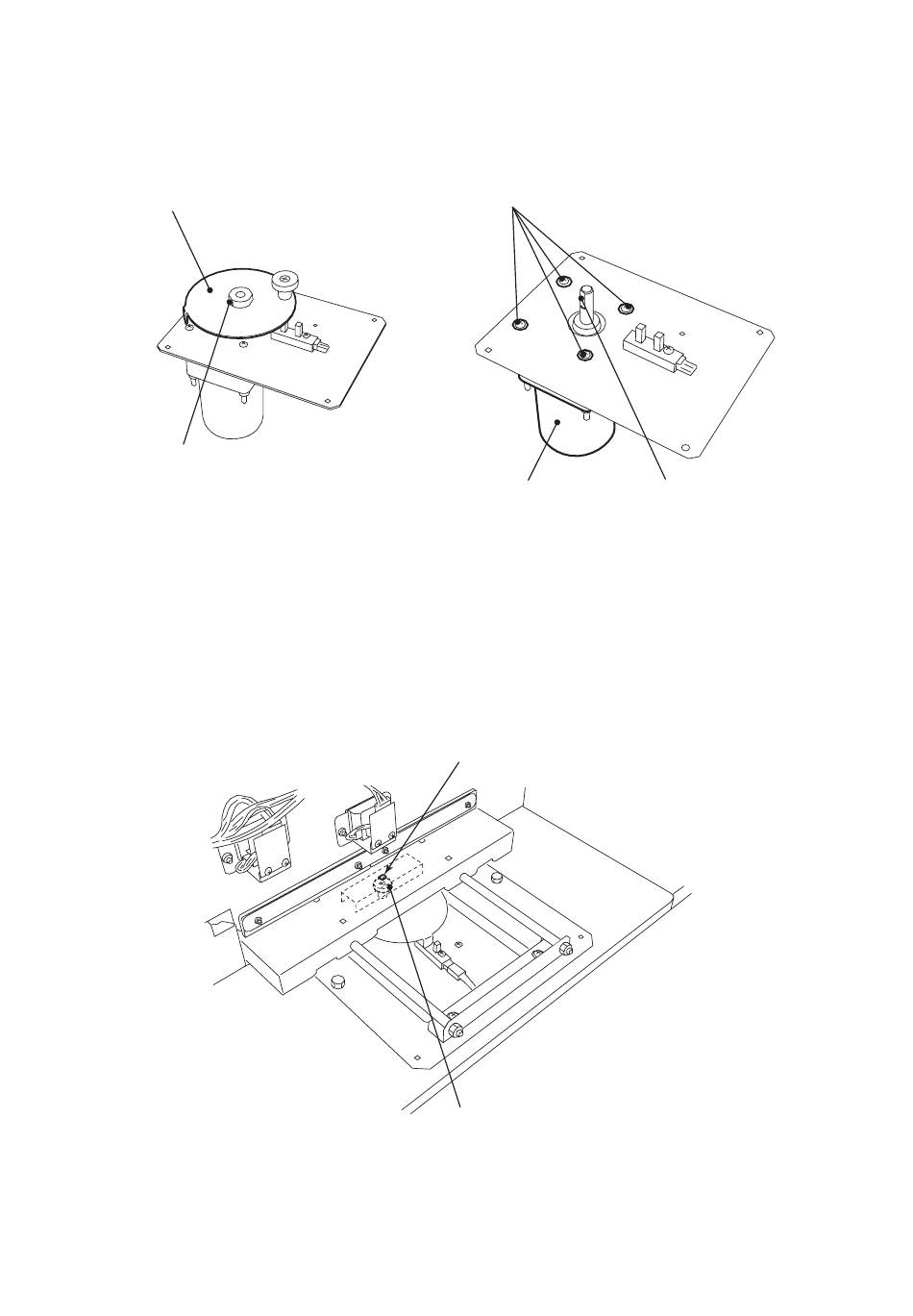

5. Loosen the 2off double-point screws (M4x5) and remove the Pusher Crank.
6. Remove 4off phillips head screws (M4x65) and remove the Motor.
Pusher crank
Double-point (M4 x 5)
7. Re-assemble in reverse order.
• When re-assembling, ensure that the connectors are fully engaged.
•
Make sure that one of the double-point screws is engaged with the flat
of the motor shaft.
• Ensure that the end of the motor shaft is flush with the pusher crank
end face.
Phillips pan-head screws (M4 x 65)
Pusher motor
Inspection hole in pusher table
Bearing for pusher crank
Page 104
Flat section on motor shaft
