2.3.

Mounting the Terminal

The terminal can be placed on a desktop, attached to a vertical surface or fastened to a column.
Mount the terminal where viewing is optimal and the terminal keypad is easily accessible.
2.3.1.

IND231Mounting

2.3.1.1. Desktop Mounting

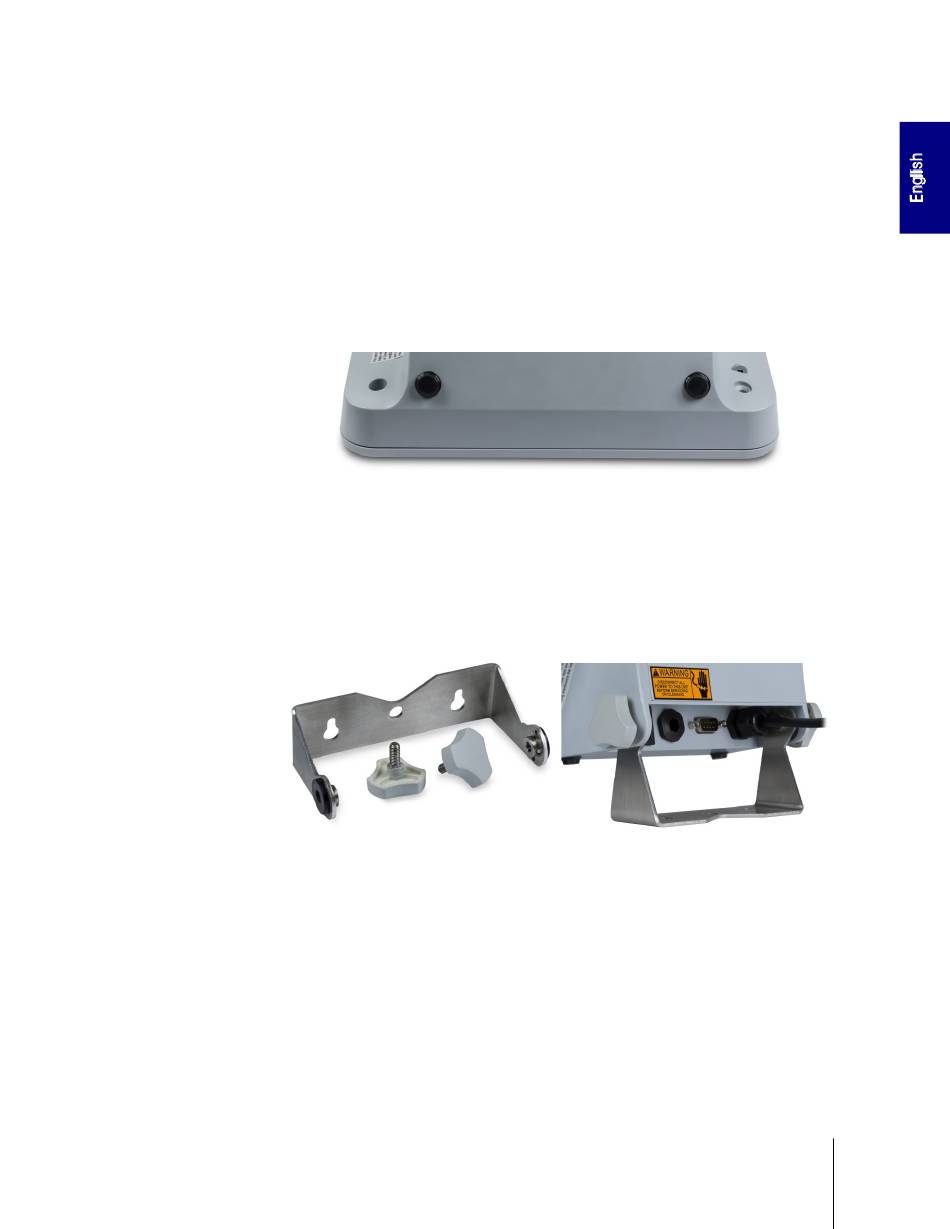

The IND231 has two self-adhesive rubber feet (Figure 2-4) attached to the bottom of the housing to
prevent sliding.
2.3.1.2. Wall Mounting& Column Mounting
One mounting bracket and two tightening knobs are included with the IND231. These can be used
to mount the terminal either to a column or to a vertical surface.
1. Use two bracket hand knobs to attach the brackets to the bottom of the terminal, as shown in
2. The bracket allows a wide range of adjustment, as shown in Figure 2-6.
30094803 | 00 | 08/2013
Figure 2-5.
Figure 2-5: Bracket and Tightening Knobs
Figure 2-4: IND231 – Rubber Feet
