OPERATION AND SERVICE INFORMATION
Read all of Manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings
Determine and record braking distance required to stop
vehicle for future brake performance tests.
Remove the protective clear plastic, that protect the seat
bottom and back rest during shipping, before placing the
vehicle in service.
ARTICULO
OPERACION DE SERVICIO
Baterías
Cargar la batería
Asientos
Quitar la cubierta protectora de plástico
Frenos
Comprobar su funcionamiento y ajustar si es necesario
Comprobar el nivel de líquido hidráulico de freno si lo hay
Establecer una distancia de parada aceptable
Neumáticos Comprobar la presión de aire (ver ESPECIFICACIONES)
Llenar el depósito con combustible adecuado
Combustible
Motor
Comprobar el nivel del aceite
Ref Isc 6

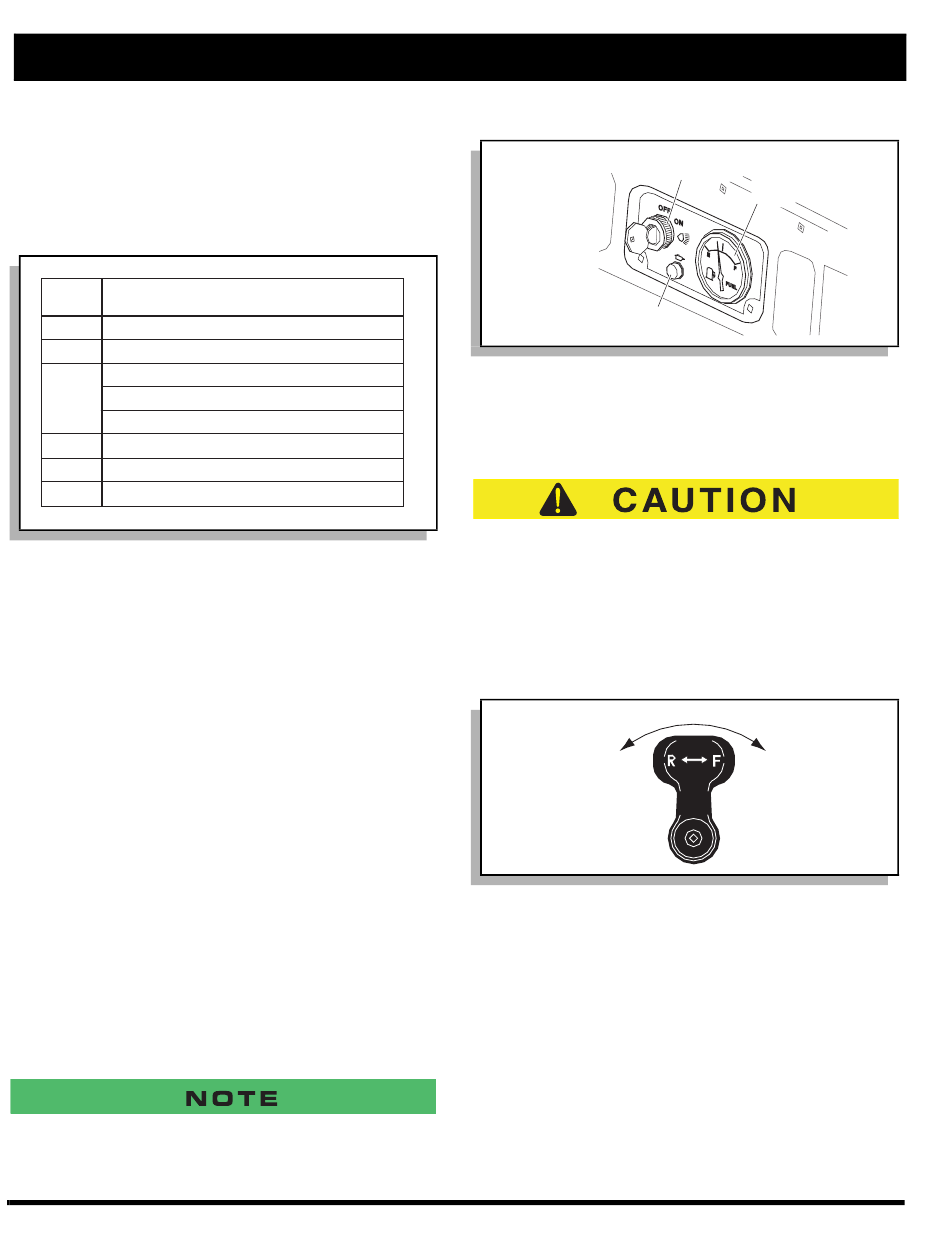

Fig. 5 Initial Service Chart
CONTROLS AND INDICATORS
Vehicle controls and indicators consist of:
•
key/light switch
•
direction selector
•
choke
•
fuel gauge
•
low oil pressure indicator light
•
accelerator pedal
•
combination service and park brake pedal with
front disc brakes (optional)
•
horn
KEY/LIGHT SWITCH
Located on the dash panel, this switch enables the basic
electrical system of the vehicle to be turned on and off by
turning the key. To prevent inadvertent operation of the
vehicle when left unattended, the key should be turned to
the 'OFF' position and removed (Ref Fig. 6 on page 6).
If the vehicle is equipped with lights, the key switch has a
position to operate them, indicated by the light icon.
If the vehicle is equipped with factory installed custom accesso-
ries, some accessories remain operational with the key switch
in the 'OFF' position.
Page 6
Fig. 6 Key/Light Switch, Low Oil Pressure Light and
DIRECTION SELECTOR
To reduce the possibility of component damage, the
vehicle must be completely stopped before moving
the direction selector.
Located on the seat support panel, this lever permits the
selection of either 'F' (forward) or 'R' (reverse) (Ref Fig. 7
on page 6). Vehicle should be left in 'F' when unattended.
CHOKE
The choke is used to aid cold starting (Ref. Fig. 8 on
page 7). See COLD STARTING section for operating
instructions.
FUEL GAUGE
The fuel gauge (if equipped) will either be located on the
dash panel (electric) (Ref Fig. 6 on page 6) or directly on
the fuel tank (mechanical).
Owner's Manual and Service Guide
Interruptor de llave
de contacto/luces
Luz indicadora de presión
baja de aceite
Ref Kes 2
Fuel Gauge
Marcha
atrás
Ref Dsl 2
Fig. 7 Direction Selector
Indicador de
combustible
Hacia
delante
