17 Technical Information
Air Cooling Kit Installation TwisTorr 704 FS with TMP Rack Controller
To fix the fan to the pump bottom:
1
2
3

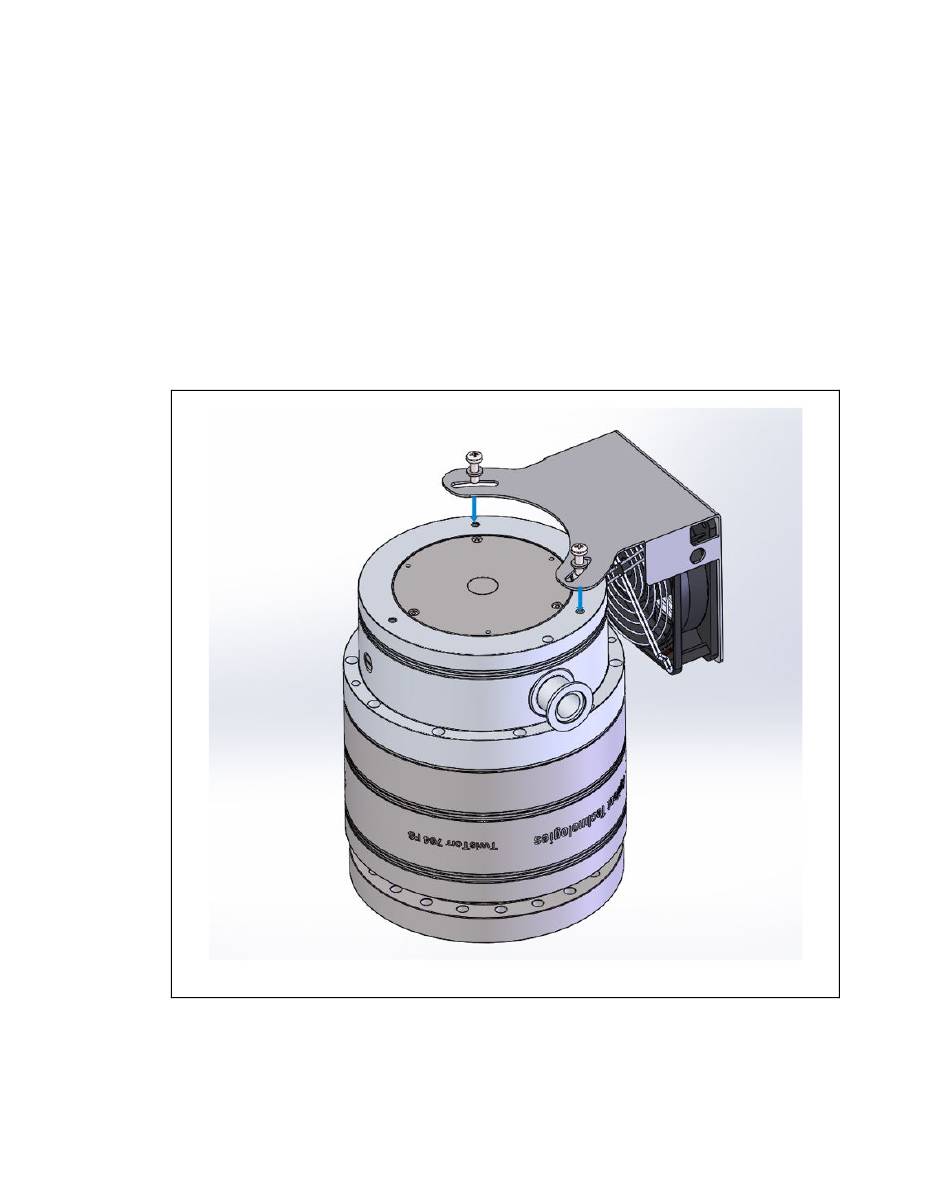

Figure 28
304/336
power input: 4.6 W

dimensions: 127 x 127 x 38 mm (5 x 5 x 1.5 in.)

Position it ensuring that the the two slotted-holes in the sheet
plate are aligned with the 2 holes in the pump base shown in the
image 28.
Then insert the respective washers and screws and tighten with
the supplied allen key.
Connect the fan to the controller.
TwisTorr 704 FS User Manual / 87-901-051-01
