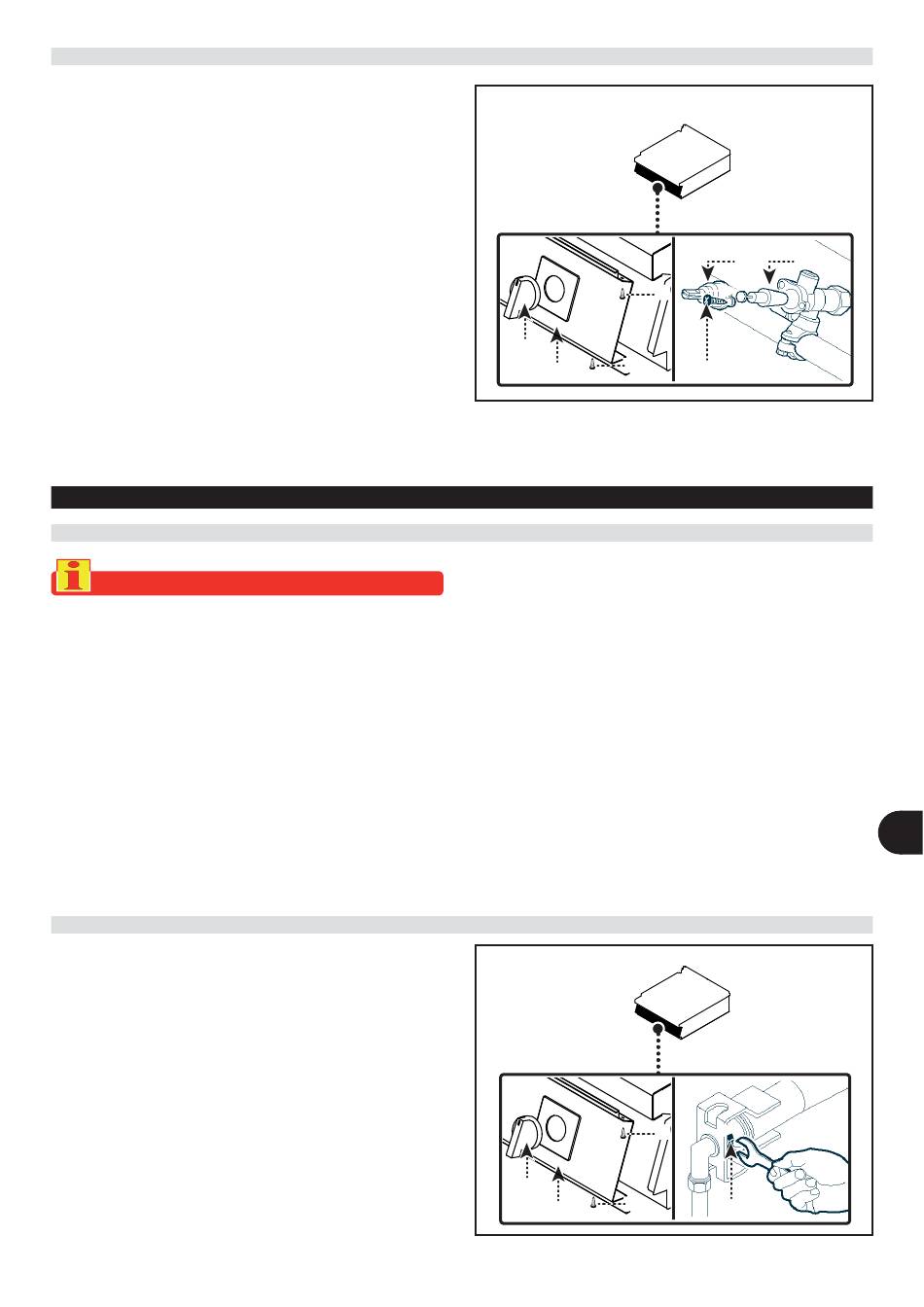

Greasing The Gas Tap; Replacing Parts; Instructions And Warning For Replacing Parts; Replacing The Plate Burner Nozzle - Angelo Po 0N0TPG Manual De Uso

Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Undo the screws (C) and remove the control
3)
panel (B).
Undo the screws (D) and extract the cap (E).
4)
Pull off the cone (F).
5)
Clean the cone (F) and its seat.
6)
Coat the cone with grease (F), fi t it in its seat
7)
and turn it a few times.
Pull off the cone (F) to remove the excess
8)
grease.
Replace the cone (F) and the cap (E).
9)
Replace the control panel (B) and the knobs
10)
(A) on completion of the operation.

INSTRUCTIONS AND WARNING FOR REPLACING PARTS

Important
Before carrying out any replacement proce-
dure, activate all the safety devices provided
and decide whether staff at work and those
in the vicinity should be informed.
In particular, turn off the gas supply tap, cut
off the electricity supply using the master
switch and prevent access to all devices that
might cause unexpected health and safety
hazards if turned on. If worn parts have to be
replaced, use original spare parts only.
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Pull off the knob (A).
2)
Undo the screws (C) and remove the control
3)
panel (B).
Unscrew the nozzle (D) and replace it with
4)
the one suitable for the type of gas in use (see
table at back of manual).
Replace the control panel (B) and the knobs
5)
(A) on completion of the operation.
3320090_inst_GB_rev.1

GREASING THE GAS TAP

REPLACING PARTS

REPLACING THE PLATE BURNER NOZZLE

A
B
The manufacturer declines all responsibly for
injury or damage to components due to the
use of non original parts, or extraordinary
work on the appliance which may modify the
safety requirements without the manufactu-
rer's authorisation. When ordering compo-
nents, follow the instructions provided in the
parts catalogue.
Also make sure that during the maintenance
procedure, that the operator is always able
to check whether the plug is disconnected
from the power outlet.
