To compensate probes

Perform this adjustment to match the characteristics of the probe and the channel input.
This should be performed whenever attaching a probe to any input channel the first time.
I. From CHI menu, set the Probe attenuation to Iox (press
Set the switch to lox on the probe and connect it to CHl of the scope meter.
When using the probe hook-tip, insert the tip onto the probe firmly to ensure proper
connection.
Attach the probe tip to the Probe compensator connector and the reference lead to the
ground pin, Select CHI, and then press AUTO.
2. Check the shape of the displayed waveform.
©Copyright Abacanto Digital SA.
26

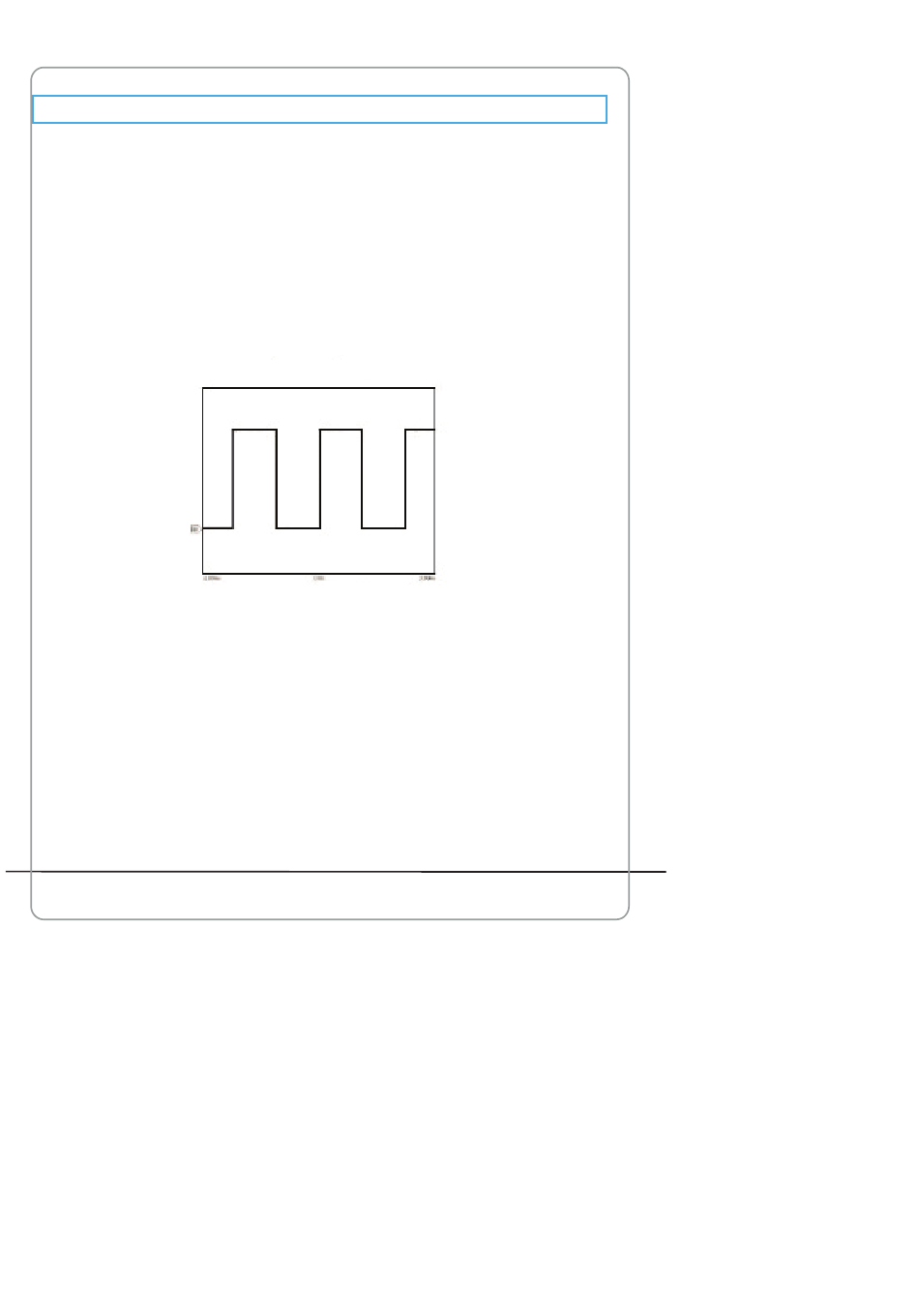

Correctly Compensated
Manual de usuario AD1062P
CH1→Probe→10X
).
