FUSE CHECK/REPLACEMENT/RESET
Circuit breaker check
1.
Drive the machine on a level ground.
2.
Engage the parking brake.
3.
Turn the ignition key (57) to "O" and remove it.
4.
On the panel (38), check for deactivation of one of the following fuses (Fig. 8):
•
(A): F1 (10 A), dust vacuuming
•
(B): F2 (10 A), fi lter shaker
•
(C): F4 (16 A), ignition key
•
(D): F5 (10 A), motor auxiliary
•
(E): F3 (2 A), DustGuard system (if equipped)
•
(F): F6 (10 A), working lights (optional)
•
(G): F8, cab blower (optional)
Reset any deactivated fuse, when the component that caused deactivation has fully cooled down.
Fuse check/replacement
1.
Drive the machine on a level ground.
2.
Engage the parking brake.
3.
Turn the ignition key (57) to "O" and remove it.
4.
Open the fuse box cover (23).
5.
Check the following fuses (Fig. 9) for integrity:
•
(A): F0 (250 A), main pump motor
•
(B): F10 (30 A) (B), auxiliary circuits
Replace any open fuse. Install the cover.
6.
Close the fuse box (23).
A
B
C
28
INSTRUCTION FOR USE
E
D
G
F

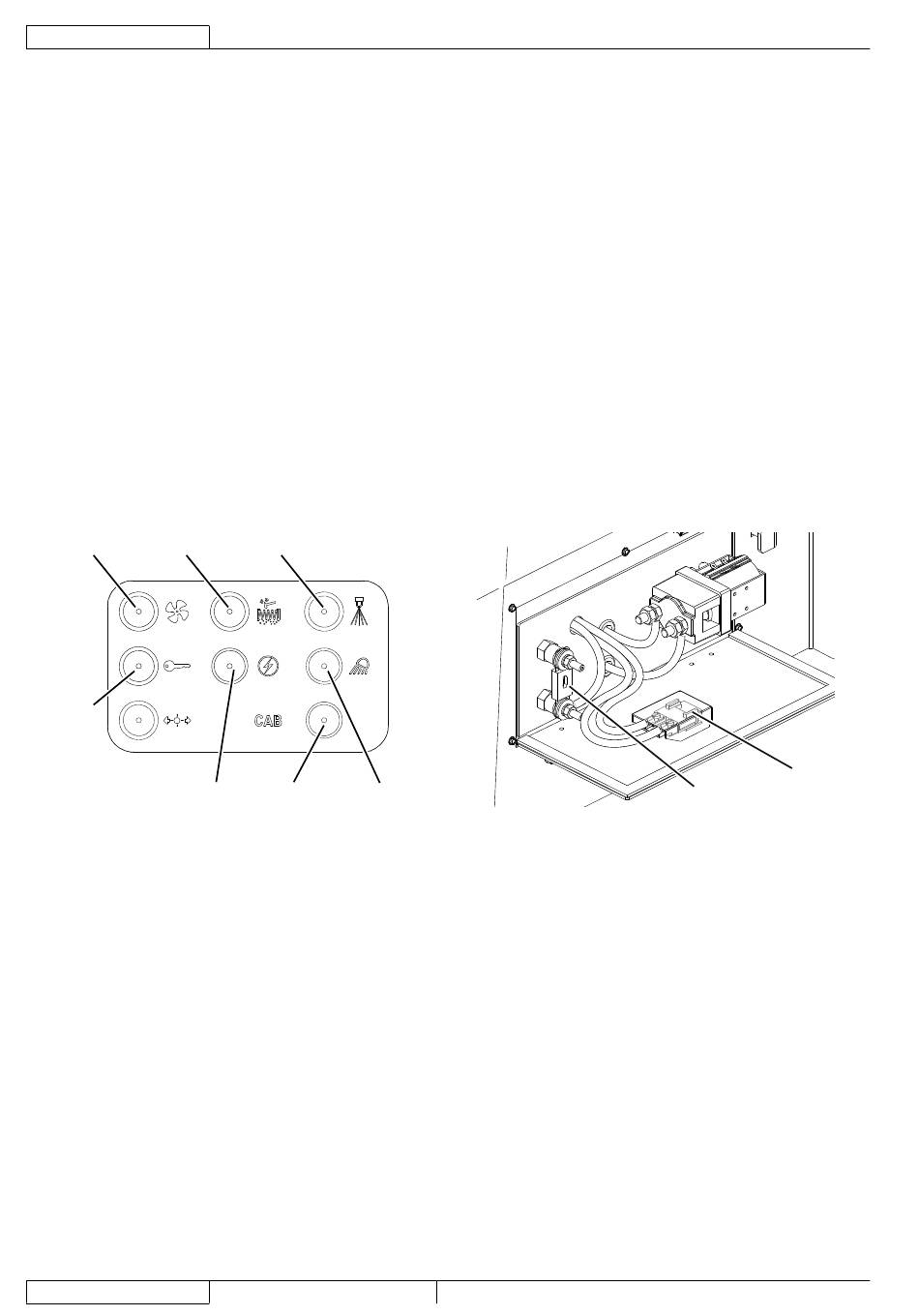

Figure 8
33019867(2)2010-09
P100338
Proterra™
B
A
Figure 9
P100339
