LIFTING

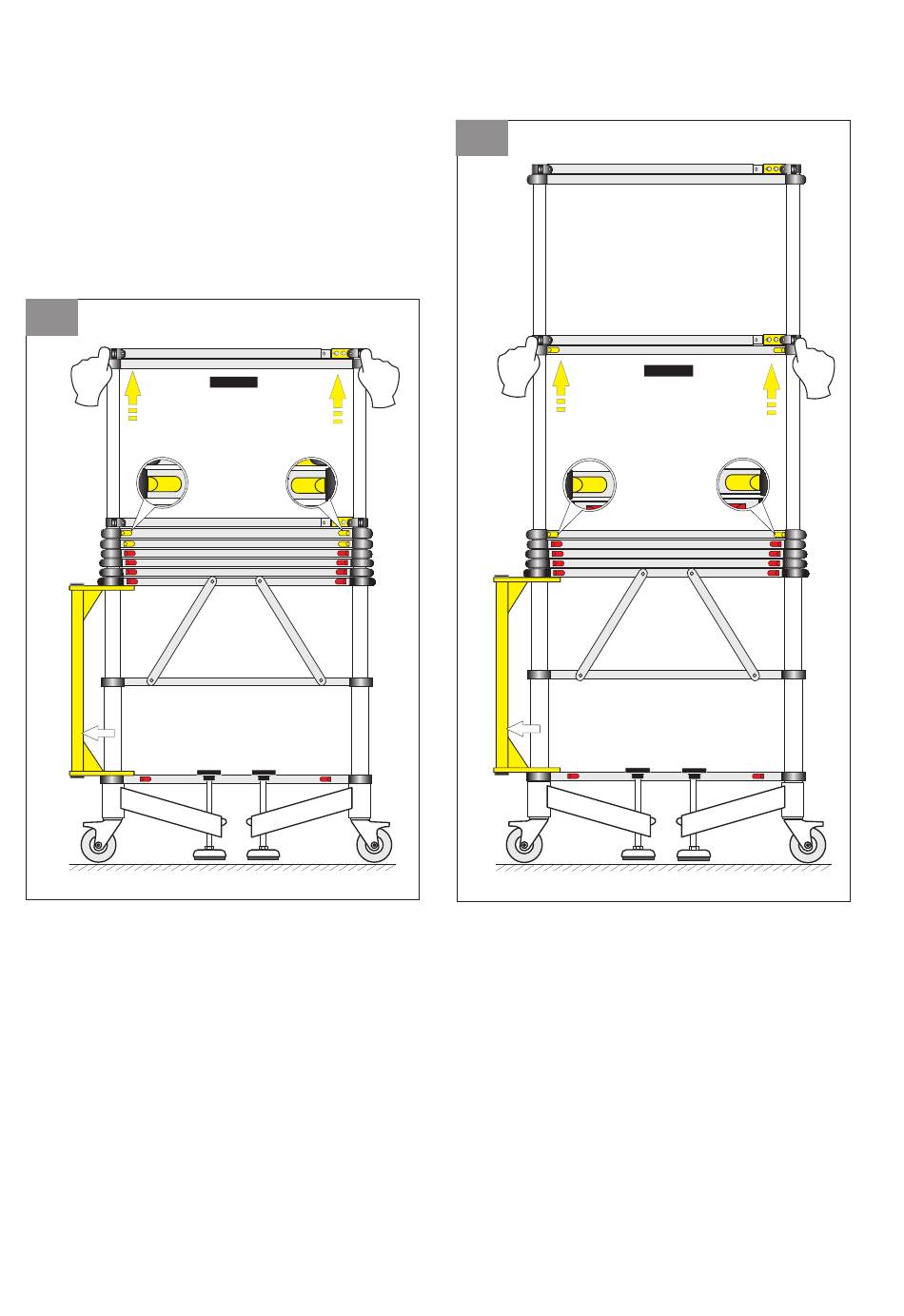

Hold both ends of RUNG 1 (Figure 1.3)
1.
and place one foot on RUNG 9. Lift
RUNG 1 until it locks in place. A click
will be heard when it locks and the
yellow buttons on RUNG 2 should
then be in the locked position. This
has lifted the hand guardrail, see
Figure 1.3.
1.3
Locked
Locked
Click
Click
RUNG 2
RUNG 2
RUNG 3
RUNG 3
RUNG 4
RUNG 4
RUNG 5
RUNG 5
RUNG 6
RUNG 6
RUNG 7
RUNG 7
RUNG 8
RUNG 8
LOCKING
LOCKING
GATE
GATE
RUNG 9
RUNG 9
Now hold both ends of RUNG 2. Place one foot on RUNG 9 and lift RUNG 2 un til
2.
it locks in place, Fig ure 1.4. This is in di cated by the yel low but tons on RUNG 3
be ing in the locked po si tion. This has lifted the hand and knee guard rails into
position, see Figure 1.4.
Repeat steps (1) and (2) on the opposite frame of the TELETOWER®.
3.
Note. There is a pair of hand rails and a pair of knee-rails on the left and right
frames of the TELETOWER®. The lower part of each pair comprises a side rail,
RUNG 1 and RUNG 2 (fixed), and the upper parts, adjustable hand-rail and
adjustable knee-rail (movable). The latter is the front rail or the rear rail (rear on the
left frame, front on the right frame).
