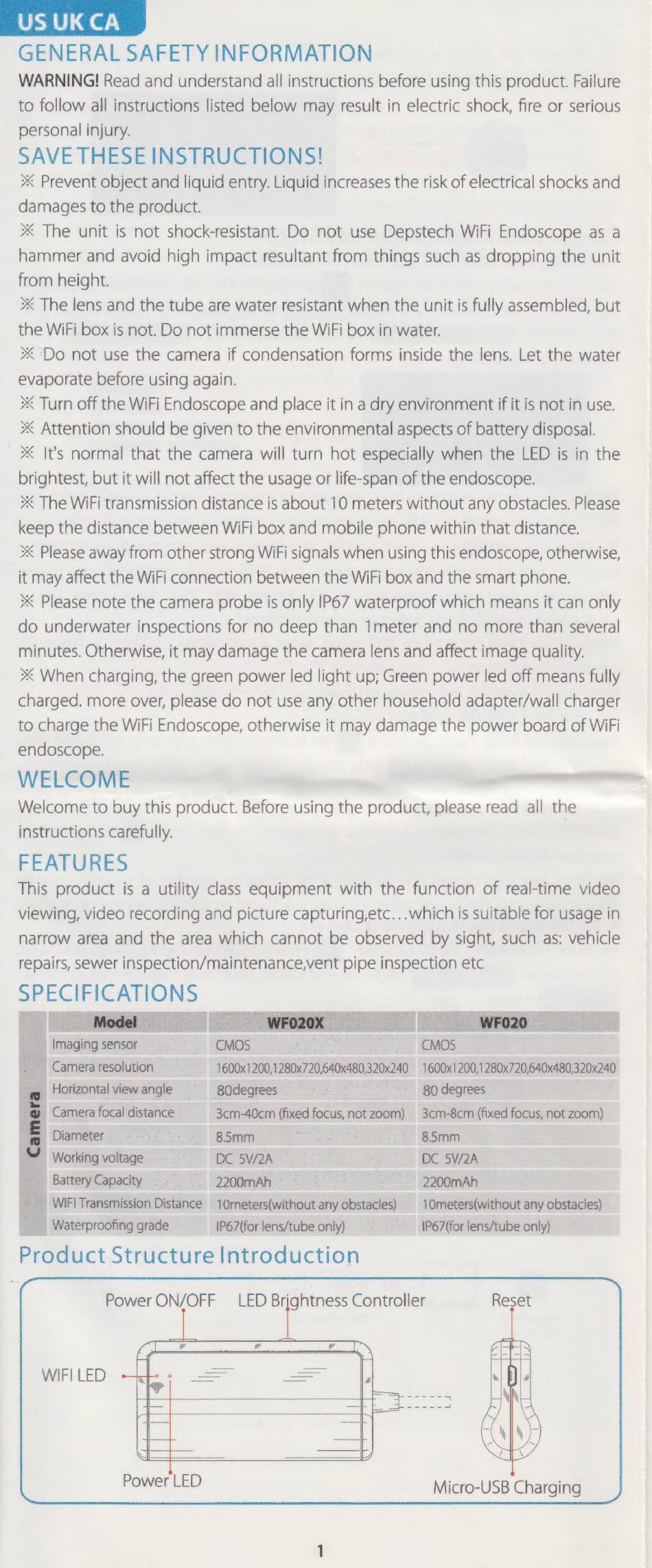

GENERAL SAFETY INFORMATION
WARNING! Read and understand all instructions before using this product. Failure
to follow all instructions listed below may result in electric shock, fire or serious
personal injury.
SAVE THESE INSTRUCTIONS!
※ Prevent object and liquid entry. Liquid increases the risk of electrical shocks and
damages to the product.
X The unit is not shock-resistant. Do not use Depstech WiFi Endoscope as a
hammer and avoid high impact resultant from things such as dropping the unit
from height.
X The lens and the tube are water resistant when the unit is fully assembled, but
the WiFi box is not. Do not immerse the WiFi box in water.
X Do not use the camera if condensation forms inside the lens. Let the water
evaporate before using again.
※ Turn off the WiFi Endoscope and place it in a dry environment if it is not in use.
※ Attention should be given to the environmental aspects of battery disposal.
X It's normal that the camera will turn hot especially when the LED is in the
brightest, but it will not affect the usage or life-span of the endoscope.
X The WiFi transmission distance is about 10 meters without any obstacles. Please
keep the distance between WiFi box and mobile phone within that distance.
X Please away from other strong WiFi signals when using this endoscope, otherwise,
it may affect the WiFi connection between the WiFi box and the smart phone.
X Please note the camera probe is only IP67 waterproof which means it can only
do underwater inspections for no deep than 1meter and no more than several
minutes. Otherwise, it may damage the camera lens and affect image quality.
X When charging, the green power led light up; Green power led off means fully
charged. more over, please do not use any other household adapter/wall charger
to charge the WiFi Endoscope, otherwise it may damage the power board of WiFi
endoscope.
WELCOME
Welcome to buy this product. Before using the product, please read all the
instructions carefully.
FEATURES
This product is a utility class equipment with the function of real-time video
viewing, video recording and picture capturing,etc...which is suitable for usage in
narrow area and the area which cannot be observed by sight, such as: vehicle
repairs, sewer inspection/maintenance,vent pipe inspection etc
SPECIFICATIONS
maging sensor CMOS CMOS
amera resolution 1600x1200,1280x720,640x480,320x240 1600x1200,1280x720,640x480,320x240
orizontal view angle 80degrees 80 degrees
amera focal distance 3cm-40cm (fixed focus, not zoom) 3cm-8cm (fixed focus, not zoom)
Diameter 8.5mm 8.5mm
Working voltage DC 5V/2A DC 5V/2A —
Battery Capacity 2200mAh 2200mAh
WIFI Transmission Distance 10meters(without any obstacles) 10meters(without any obstacles)
Waterproofing grade !P67(for lens/tube only) IP67(for lens/tube only)
Power ON/OFF LED Brightness Controller
WIFI LED
Power LED Micro-USB Charging
