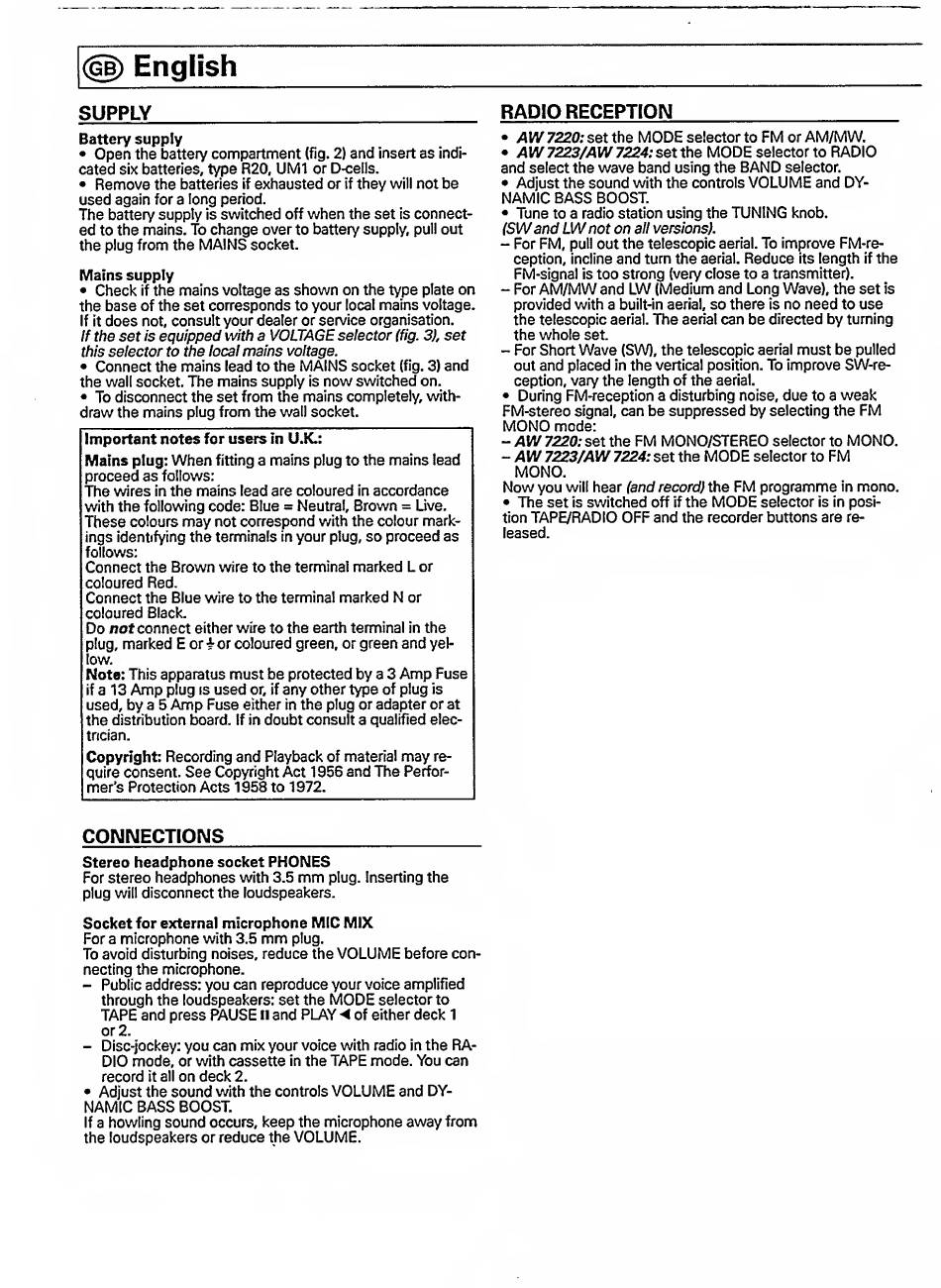

(gb) English
SUPPLY_
Battery supply
• Open the battery compartment (fig. 2) and insert as indi¬
cated six batteries, type R20, UM1 or D-cells.
• Remove the batteries if exhausted or if they will not be
used again for a long period.
The battery supply is switched off when the set is connect¬
ed to the mains. To change over to battery supply, pull out
the plug from the MAINS socket.
IVIains supply
• Check if the mains voltage as shown on the type plate on
the base of the set corresponds to your local mains voltage.
If it does not, consult your dealer or service organisation.
If the set is equipped with a VOLTAGE selector {fig. 3), set
this selector to the local mains voltage.
• Connect the mains lead to the MAINS socket (fig. 3) and
the wall socket. The mains supply is now switched on.
• To disconnect the set from the mains completely, with¬
draw the mains plug from the wall socket.
Important notes for users In U.K.:
Mams plug: When fitting a mains plug to the mains lead
proceed as follows:
The wires in the mains lead are coloured in accordance
with the following code: Blue = Neutral, Brown = Live.
These colours may not correspond with the colour mark¬
ings identifying the terminals in your plug, so proceed as
follows:
Connect the Brown wire to the terminal marked L or
coloured Red.
Connect the Blue wire to the terminal marked N or
coloured Black.
Do not connect either wire to the earth terminal in the
plug, marked E or ■ f or coloured green, or green and yel¬
low.
Note: This apparatus must be protected by a 3 Amp Fuse
if a 13 Amp plug is used or, if any other type of plug is
used, by a 5 Amp Fuse either in the plug or adapter or at
the distribution board. If in doubt consult a qualified elec¬
trician.
Copyright: Recording and Playback of material may re¬
quire consent. See Copyright Act 1956 and The Perfor¬
mer's Protection Acts 1958 to 1972.
RADIO RECEPTION
• AW 7220: set the MODE selector to FM or AM/MW.
• AW 7223/AW 7224: set the MODE selector to RADIO
and select the wave band using the BAND selector.
• Adjust the sound with the controls VOLUME and DY¬
NAMIC BASS BOOST.
• Tune to a radio station using the TUNING knob.
(SW and LW not on all versions).
- For FM, pull out the telescopic aerial. To improve FM-re-
ception, incline and turn the aerial. Reduce its length if the
FM-signal is too strong (very close to a transmitter).
- For AM/MW and LW (Medium and Long Wave), the set is
provided with a built-in aerial, so there is no need to use
the telescopic aerial. The aerial can be directed by turning
the whole set.
- For Short Wave (SW), the telescopic aerial must be pulled
out and placed in the vertical position. To improve SW-re-
ception, vary the length of the aerial.
• During FM-reception a disturbing noise, due to a weak
FM-stereo signal, can be suppressed by selecting the FM
MONO mode:
->W 7220; set the FM MONO/STEREO selector to MONO.
- AW 7223/AW 7224: set the MODE selector to FM
MONO.
Now you will hear (and record) the FM programme in mono.
• The set is switched off if the MODE selector is in posi¬
tion TAPE/RADIO OFF and the recorder buttons are re¬
leased.
CONNECTIONS_
Stereo headphone socket PHONES
For stereo headphones with 3.5 mm plug. Inserting the
plug will disconnect the loudspeakers.
Socket for external microphone MIC MIX
Fora microphone with 3.5 mm plug.
To avoid disturbing noises, reduce the VOLUME before con¬
necting the microphone.
- Public address: you can reproduce your voice amplified
through the loudspeakers: set the MODE selector to
TAPE and press PAUSE II and PLAY ◄ of either deck 1
or 2.
- Disc-jockey: you can mix your voice with radio in the RA¬
DIO mode, or with cassette in the TAPE mode. You can
record it all on deck 2.
• Adjust the sound with the controls VOLUME and DY¬
NAMIC BASS BOOST.
If a howling sound occurs, keep the microphone away from
the loudspeakers or reduce the VOLUME.
