Ryobi A90FS01 Quick Start Guide

FLEXIBLE SHAFT
ATTACHMENT /
A90FS01
For use with RYOBI PCL480, TVM01, RRT100, and
RRT200 Rotary Tools.
NOTE: Some flex shaft attachments are equipped with a traditional
nut and collet.
WARNING!
To reduce the risk of injury, user must read and understand the
operator's manual for their rotary tool and this instruction sheet.
Always wear eye protection with side shields marked to comply
with ANSI Z87.1. Ensure compatibility and fit before using this
accessory. Do not use this accessory if a part is damaged or
missing. If you are not comfortable performing any of the functions
described in these instructions, take your unit to an authorized
service center.
WARNING:
Never install, remove, or adjust any accessory while rotary tool
is running. Failure to stop the motor can cause serious personal
injury. Never operate rotary tool without an attachment head or
the collar installed.
WARNING:
Always hold the hand piece firmly in your hand. To avoid serious
injury, do not mount the flex shaft hand piece into any hobby
station.
WARNING:
To avoid serious personal injury, never use a router bit in the flex
shaft attachment.
NOTE: Follow all guidelines and warnings in your rotary tool operator's
manual.
Use the flexible shaft attachment to access hard to reach places and
perform precision work.
INSTALLING THE FLEXIBLE SHAFT
ATTACHMENT

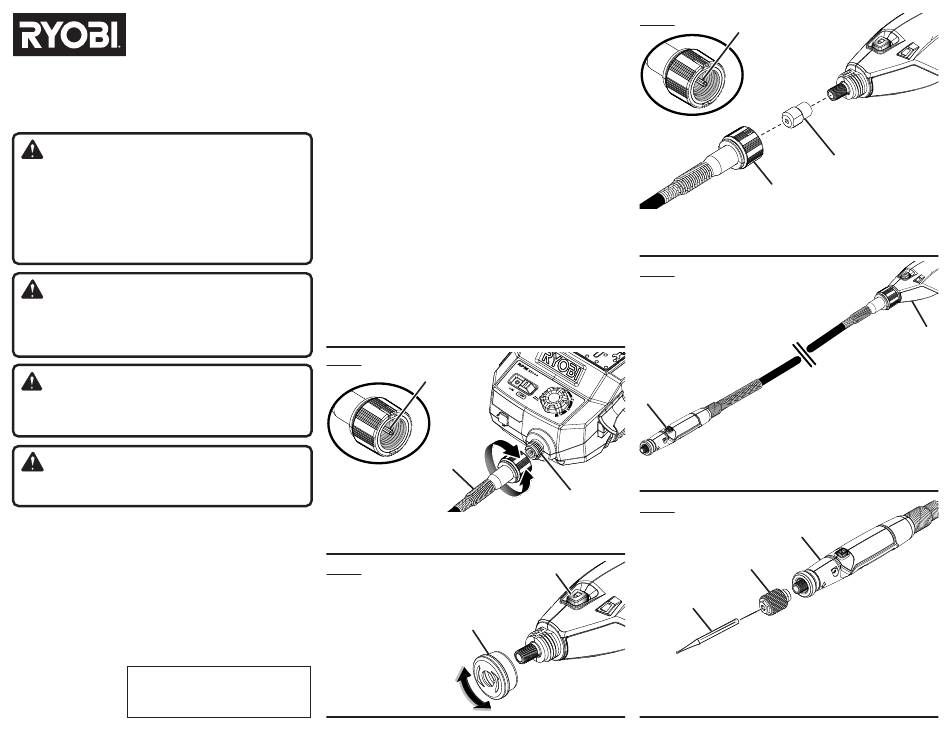

See Figures 1 - 5.
The flexible shaft attachment connects directly to the threaded outlet
of the PCL480 rotary tool. For all other compatible rotary tools, follow
the steps below:
TTI Consumer Power Tools, Inc.
P.O. Box 1288, Anderson, SC 29622
Phone 1-800-525-2579
998000808
www.ryobitools.com
3-14-22 (REV:03)
 Remove the battery pack from the rotary tool.
 Engage the spindle lock and remove accessories and quick-change
collet according to the rotary tool operator's manual.
 Hold the collar firmly, then turn it counterclockwise to loosen and
remove.
 Install the adaptor onto the rotary tool's shaft.
 Slide the collar of the flex shaft over the adaptor and onto the
threaded end of the tool.
NOTE: The square shaft inside the flex hose inserts into the square
hole in the adaptor.
 Turn the collar clockwise and tighten securely.
 Engage the spindle lock and thread the quick-change collet onto
the rotary pen.
 Install accessory into quick-change collet. Refer to the Installing/
Removing Accessories in the rotary tool operator's manual
NOTE: Ensure collet and accessory are secure.
 To start bit rotation, hold the rotary pen in front and away from you
and turn the rotary tool on.
 Lower the rotary pen gradually until the accessory contacts the
workpiece.
 When finished, turn off the rotary tool.
NOTE: For organic material, a flex shaft accessory is required. Proper
cleaning and sanitizing is required after use. Any material includ-
ing organic material cut or altered by this tool is not intended nor
suitable for human consumption.
Fig. 1
C
B
A - Threaded outlet (raccord fileté, salida con rosca)
B - Flexible shaft (arbre flexible, tubo flexible)
C - Square shaft (tige carrée, vástago cuadrado)
Fig. 2
A
A - Collar (collier, collar)
B - Rotary tool (outil rotatif,
herramienta giratoria)
Fig. 3
A - Square shaft (tige carrée, vástago cuadrado)
B - Adaptor (adaptateur, adaptador)
C - Flexible shaft (arbre flexible, tubo flexible)
Fig. 4
B
A - Rotary tool (outil rotatif, herramienta giratoria)
B - Rotary pen (stylo rotatif, lápiz giratorio)
A
Fig. 5
B
B
A - Quick-change collet (collet à changement rapide, portabroca de cambio
rápido)
B - Accessory (accessoire, accesorio)
C - Rotary pen (stylo rotatif, lápiz giratorio)
A
B
C
C
A
A
