Connecting the condensate drain
The unit is supplied with a standard 32 mm drain with a threaded end� There is an extra 32 mm diameter by 20 cm connecting pipe
in the packaging� Condensate must be drained frost-free and with a slight fall� The condensate hose must not have any sharp
bends�

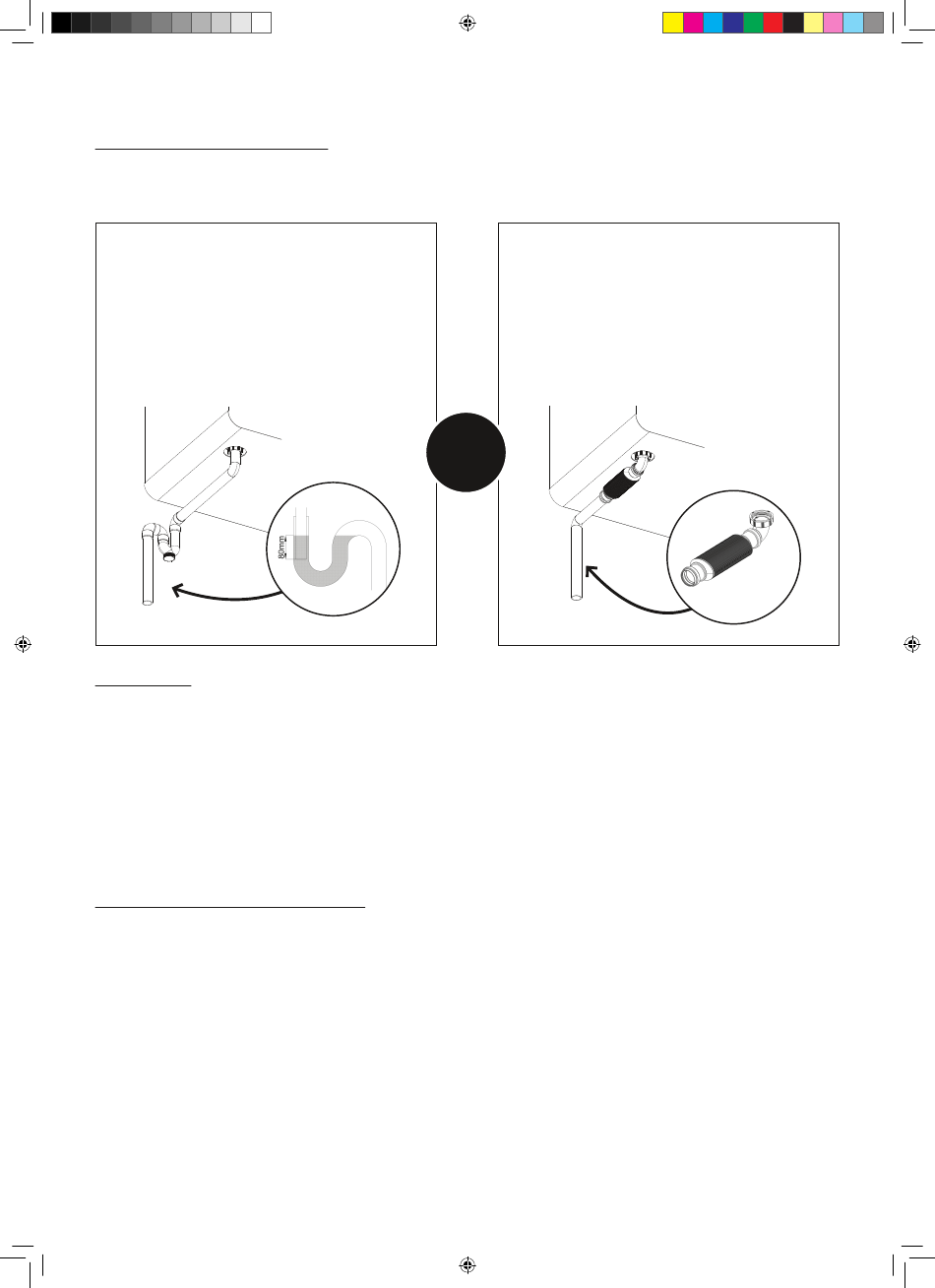

Standard trap
(not included in the supply)
When using a standard trap connection, a water seal
of at least 80 mm must be provided� It also requires
to be filled with water before start-up. This is to
prevent an air leak from occurring, preventing drain
smells in the ventilation and to obtain a water seal�
Next steps
After these steps, you can proceed with the following steps in order to complete the installation:
• Pairing control components with the DucoBox Energy Comfort (Electrical system, see page 191)�
• DucoBox Energy Comfort air-side calibration (see page 193)�
• A timer program will need to be set if there are no CO
• Optional: changing settings� The factory settings will suffice in most cases� However, it is possible to configure settings such as
the Bypass and comfort temperature to suit the occupants' wishes (see page 198)�
The DucoBox Energy Comfort will be ready for use after that�
In order to avoid contamination in ductwork it is advisable not to put the unit into operation until the house is occupied� This is to
prevent dust from the building phase getting into the ductwork and the unit�
What happens in a power cut?
If the power supply to the DucoBox Energy Comfort fails, it will retain all its settings� Once power has been restored, the DucoBox
Energy Comfort will start up again and run� The correct time will need to be set again if the DucoBox Energy Comfort is without
power for more than (around) 8 hours�
190
L2000782 Installation guide for DucoBox Energy Comfort (Revision C | 22.10.2021)
2_IM Energy Comfort.indb 190 2_IM Energy Comfort.indb 190
(not included in the supply)
You should preferably use this Duco flat diaphragm
trap, since it saves space and is less prone to air
leaks� It can be fitted 'dry' and it has the advantage
that it cannot dry out in hot weather�
OR
and/or humidity sensors fitted in the system (see page 198)�
