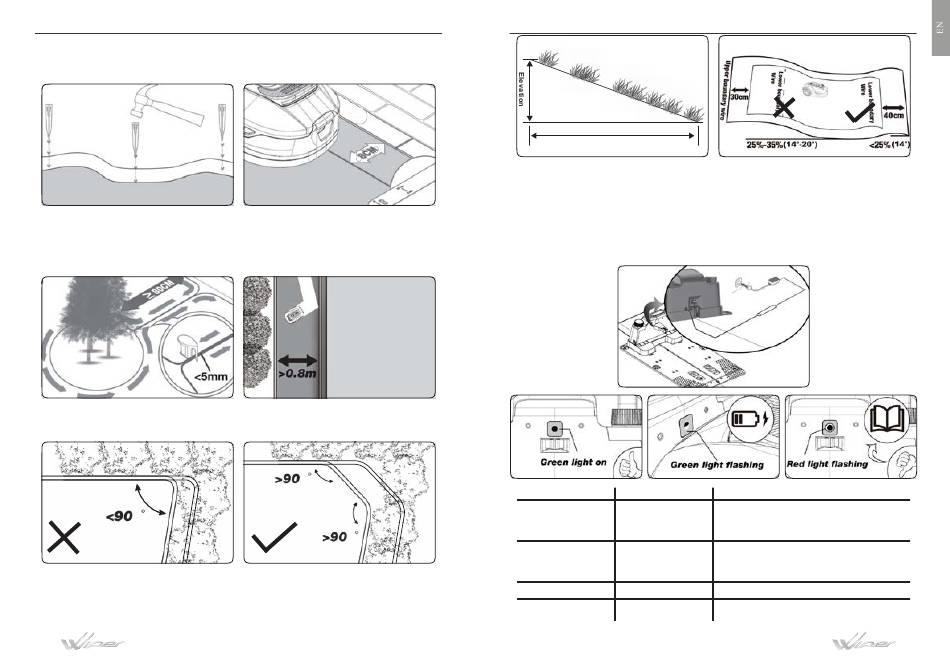

2.2 If an obstacle is level with ground and safe for l a w n mower to run over, such as a
driveway or sidewalk, then only 8cm of space is needed between it and the boundary wire.
6
2.3 Island setting and narrow channel size requirements
NOTE: if you do not want lawnmower to go your lawn area. such as flowers, shrubs, tree
and so on, you can laying the boundary wire set island. As shown in the figure 8, the
lawnmower can pass through a narrow passage 0.8 m wide.
8
2.4 Ensure the boundary wire is perfectly straight in each corner, and all
angles formed by the boundary wire are 90°or larger.
10
<90。
2.5 Slopes
NOTE: your lawnmower has the ability to safely climb slopes up to 35% (20°) so just
avoid areas steeper than this.
How to calculate the slope of your lawn:
17
20
7
9
11
>90。
>90。
12
35cm
MAX.35%slope (20°)
100cm
Length
The boundary wire on slopes as shown in the figure 12,13.
3. Connect charging base to the power source
The power supply Plug in the voltage socket, if you laying boundary wire is right
the charging base LED light turn on and it always bright green, LED status in the
grid below to make sure the connection is ok.
15 16
LED light status status
Not turn on There is no power
Boundary wire is connected
Green light on rig h t; mo w er is fu lly
charged
Green light flashing charging
B o u n d a r y w i r e i s n o t
Red light flashing
connected; OR boundary
wire is breaking
13
14
17
Action
Confirm that the power cord is connected properly
to the charger and that the charger is connected to a
suitable power supply.
NA
NA
Check the two ends of boundary wire connected the
wire terminal is reliable.
Check the boundary wire is not break.
18
21
