12.1

Assembly

12.1.1

ZI-MD500HST

ZIPPER MASCHINEN GmbH www.zipper-maschinen.at

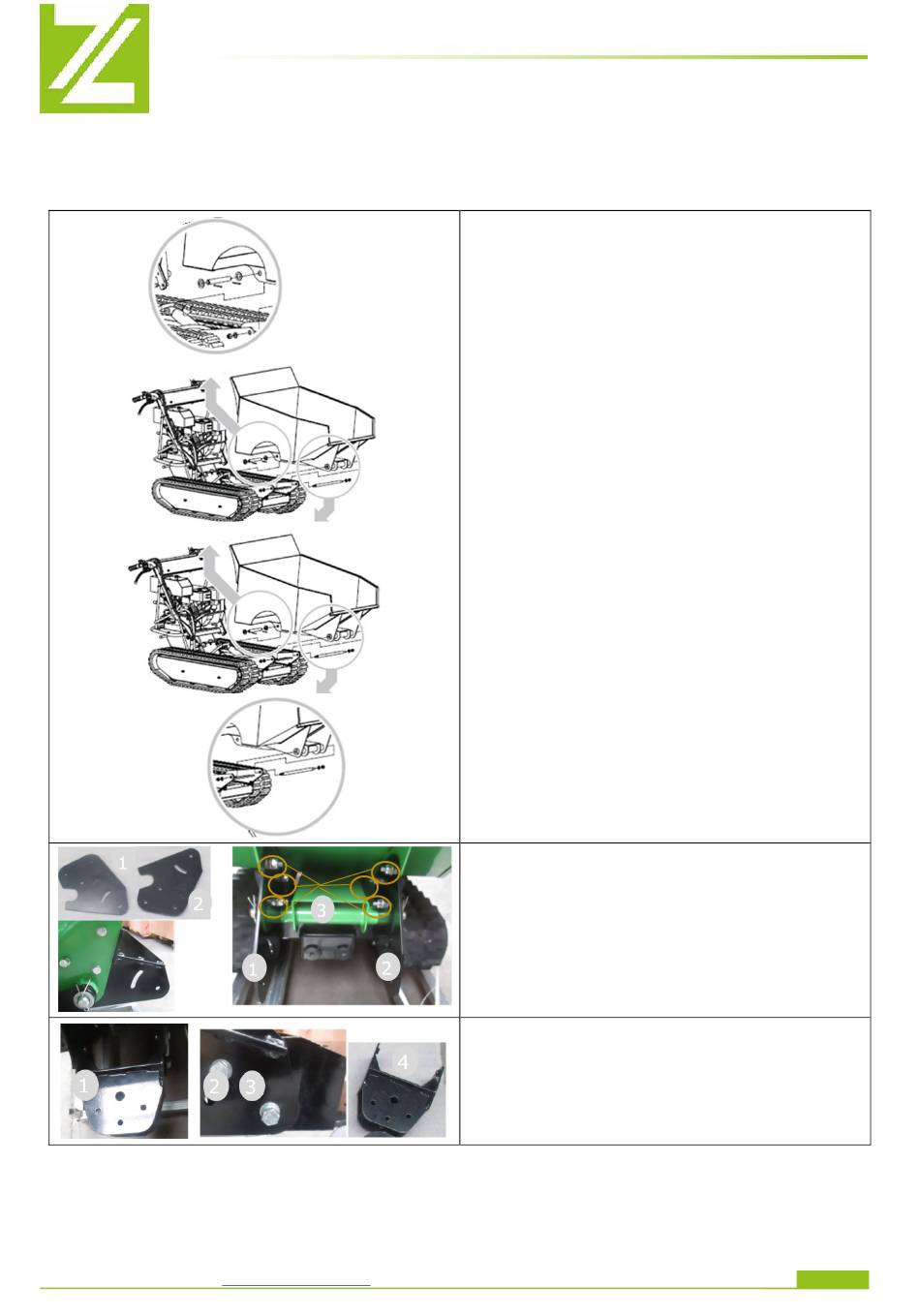

• Position the bottom panel inside the mount-
ing bracket.
• Align the holes with the mounting bracket.
• Insert a long pin through holes and secure
each side with a flat washer and cotter pin.
Snow blade:
• Mount the mounting brackets (1) & (2) to the
blades using M10×25 hex bolts, washers and
nuts (3).
• Mount the bracket (4) to the mounting
brackets (1) & (2) using in total four M10x25
hex bolts and washers.
