Turny Evo Getting seated

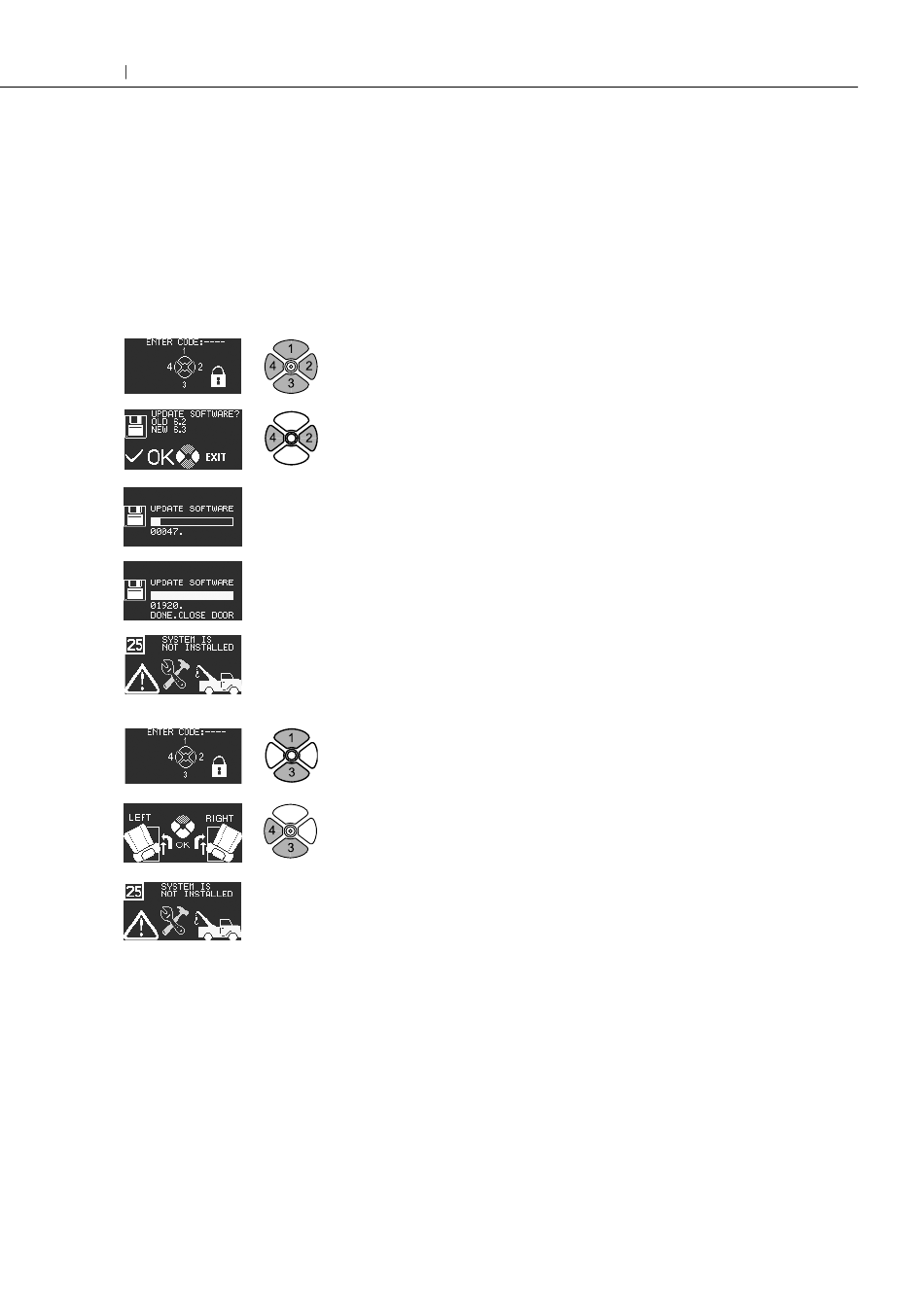

11. Update the software
To update the software in the unit a new hand held control with the new program
version is required. Open the car door where Turny Evo is installed and ensure that
the hand held control lights up. Replace the existing hand held control with the new
one. The door must be open until step 3 below.
1
2
3
4
5
6
7
8
Activate the programming menu. Hold down the yellow button in the middle of
the hand held control until the screen "enter code" is displayed. Then enter the
code 4, 3, 2, 1
(Screen 2 comes up)
Press 2 to undo and cancel.
Press 4 to commence updating.
Updating in progress.
Updating is finished.
Close the door and open again.
If Turny Evo is installed on the right side of the car, it is now possible to start pro-
gramming movement paths, see chapter 10. If Turny Evo is installed on the left side
of the car you must inform the system about this, see next step below.
Activate the programming menu. Hold down the yellow button in the middle of
the hand held control until the "enter code" screen is displayed. Then enter the
code 1, 1, 1, 3
(Screen 6 comes up)
Press 4 for "continue" installation.
Press 3 for "OK".
(Screen 7 comes up)
Start programming of movement paths, see chapter 10. Note that the choice of
installation "left" is only saved if programming is done in direct connection to the
choice. If this is not done in direct connection you must go in and select the "left"
installation again.
(Screen 4 comes up)
