8. Blade Assembly.

WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble
the blades. If screws are overtightened, blades
may crack and break.
Locate 18 blade attachment screws/lock
washers in one of the hardware packs. Hold
blade plate up to one of the blades, aligning
holes in blade plate with holes in blade as
shown. Place blade arm on UNDERSIDE of blade
aligning holes in blade arm with holes in blade
and blade plate as shown. Insert 3 blade
attachment screws/lock washers from TOPSIDE
of blade plate with fingers first and then
tighten screws securely with a Phillips
screwdriver. Repeat procedure for remaining
blades.
Locate blade arm screws/lock washers in
hardware pack. Place blade arm on motor
plate, aligning blade arm holes and pegs with
motor screw holes and alignment holes for
pegs. Attach blade arm with blade arm
screws/lock washers. Before securing screws
permanently, repeat with remaining blade
arms. Securely tighten all screws.
NOTE: Tighten blade arm screws twice a year.
NOTE: When operating the fan in a covered
patio location, it is possible for high wind gusts
to cause the fan to stop briefly. It will then emit
a warning beep for 60 seconds and restart at
the same setting. If you wish to restart the fan
sooner, you may push the SPEED button during
the 60-second warning beep.

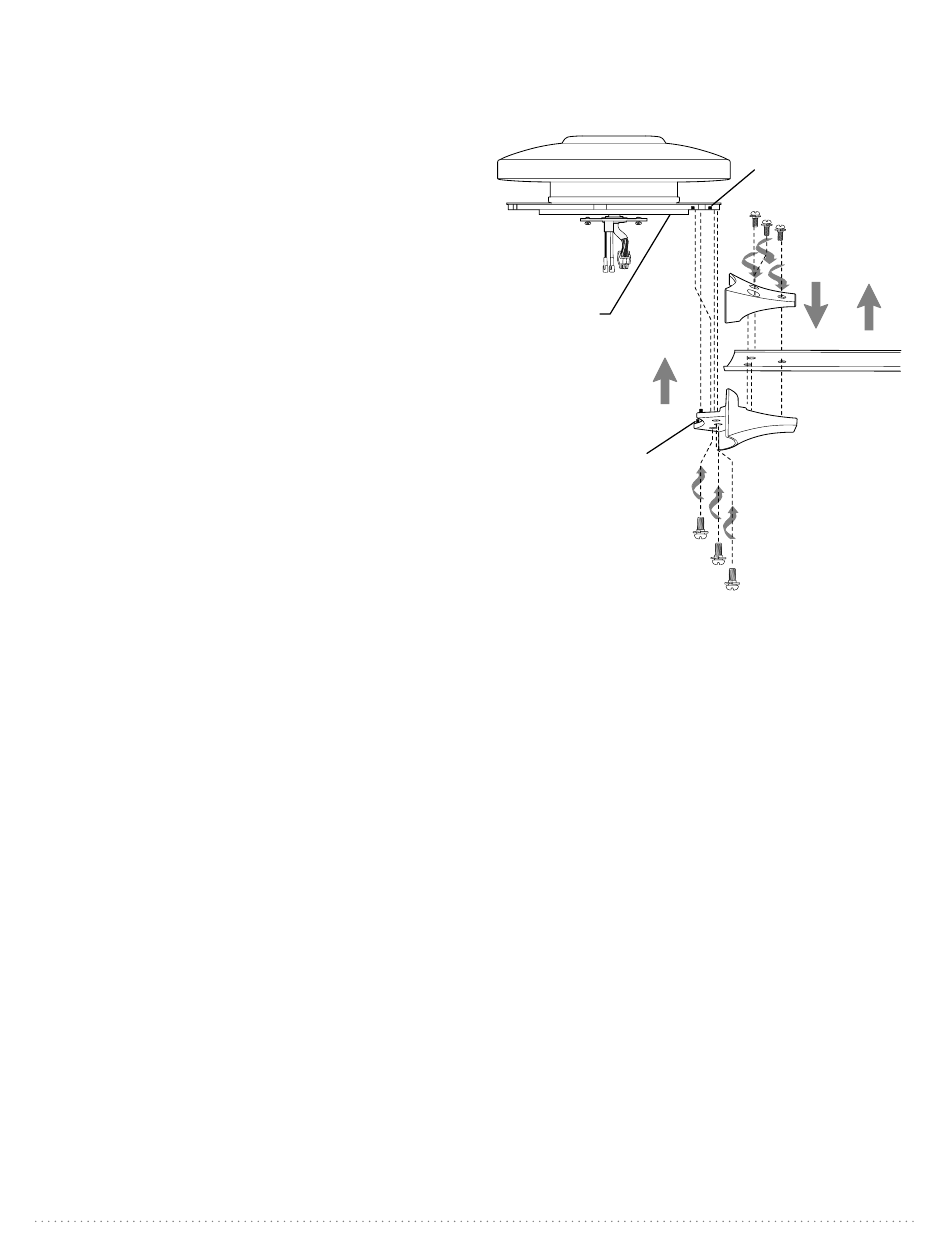

motor housing
