5. How to Wire Your Ceiling Fan
5.9
While inserting the Receiver fully into the Hanger
Bracket, turn Wires upward and carefully push Wires
into the Outlet Box, with the White and Green Wires
on one side of the Outlet Box and position the Black
and Blue Wires on the other side of the Outlet Box
(Figure 25) .
5.10

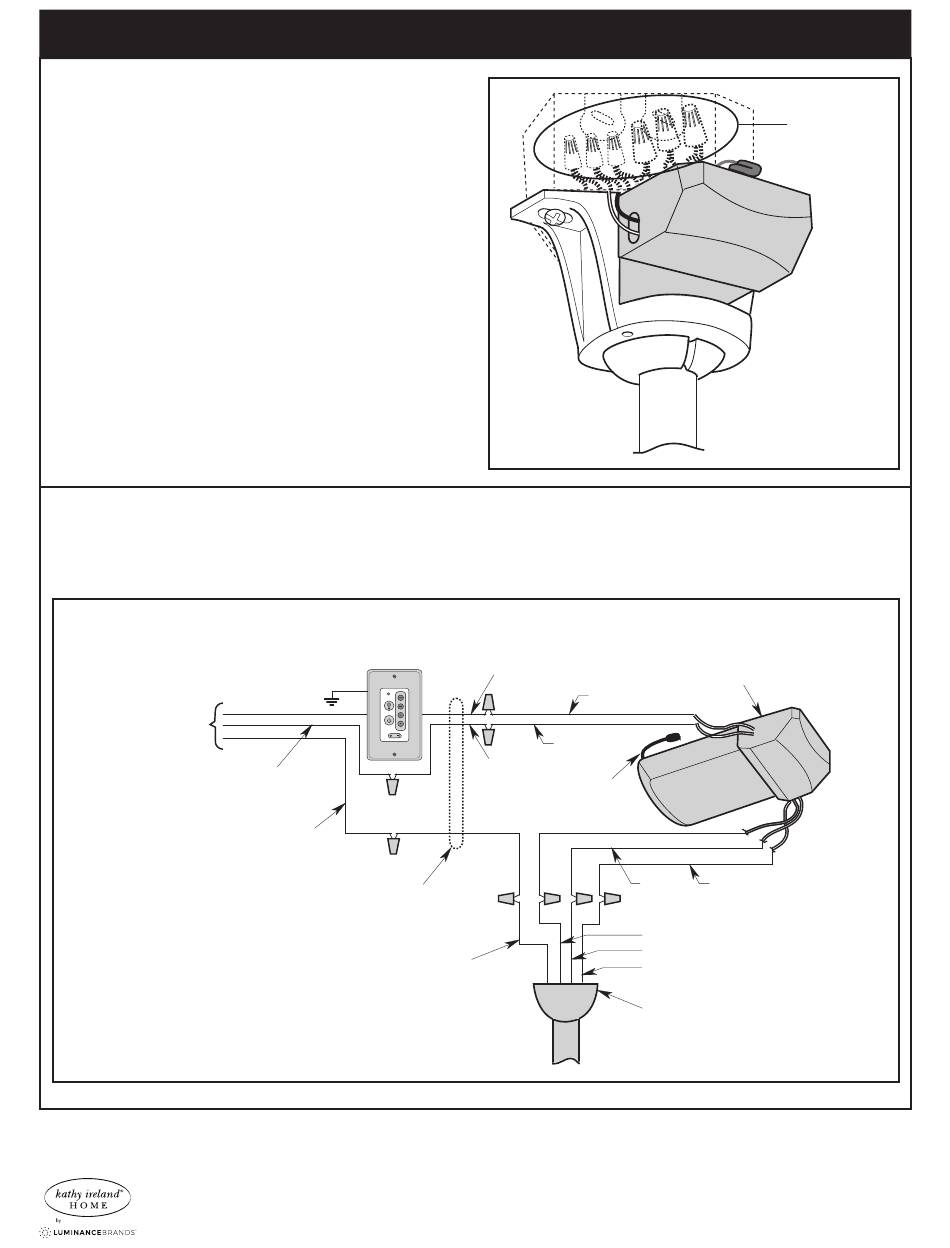

Wiring Schematic for reference (Figure 26) .
TO
120-VOLT
SUPPLY
Figure 26
STANDARD ON-OFF WALL
SWITCH OR OPTIONAL
WALL CONTROL
GND
BLACK
(HOT)
WHITE
GROUND
TWO-CONDUCTOR
CABLE
(WITH GROUND)
GREEN WIRE (GROUND) FROM
HANGER BALL AND HANGER
BRACKET
Figure 25
BLACK
BLACK
WHITE
WHITE
ANTENNA
BLACK or RED
BLUE
BLACK
BLUE
WHITE
HANGER BALL
16
(Continued)
WIRE
CONNECTORS
(Tucked Inside
Outlet Box)
RECEIVER
WHITE
ETL Model No.: CF370
