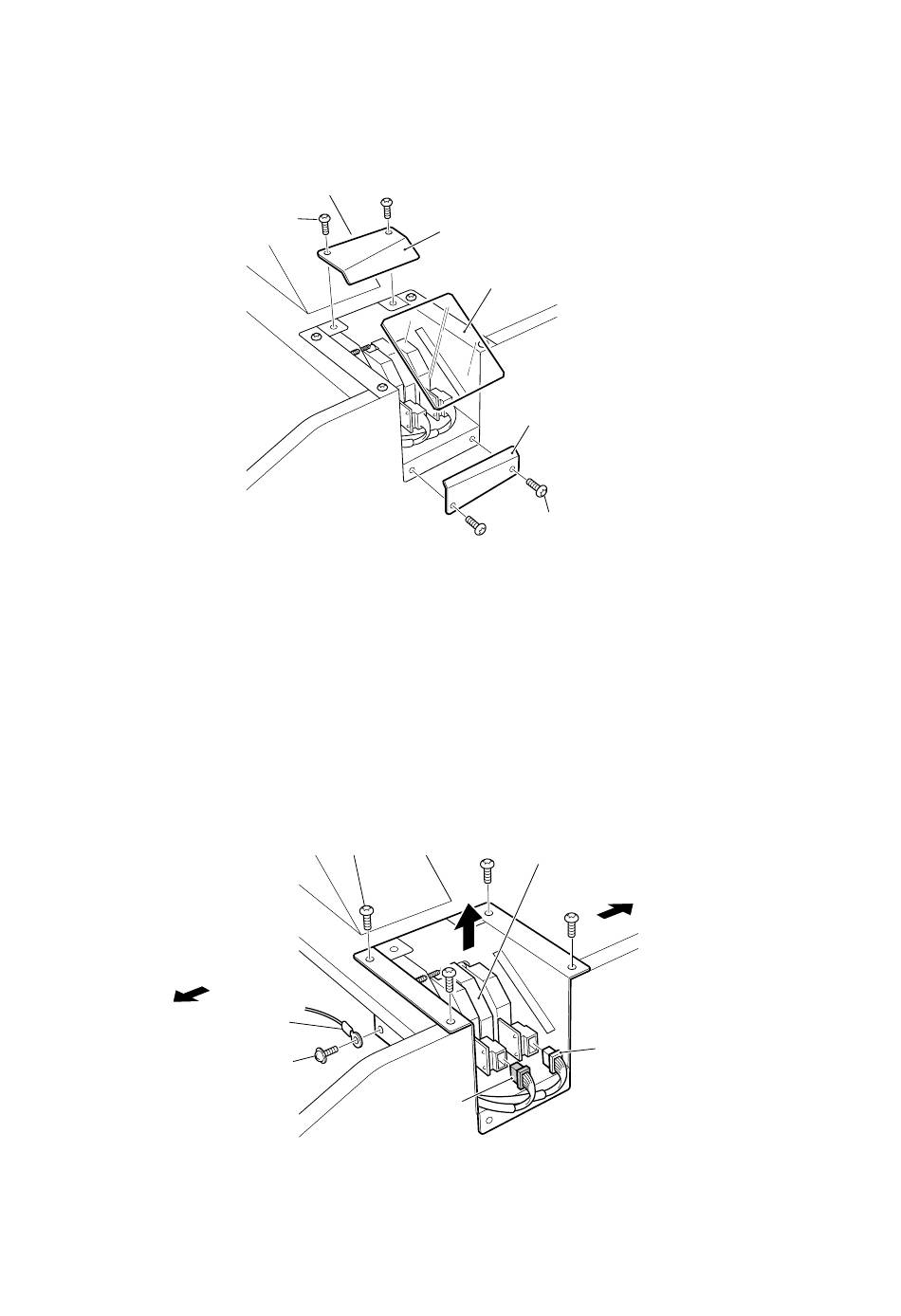

Removing the Sensor Assemblies
1.
Remove 4off security screw (M5x12) and remove both retainers (A and B).
2.
Remove the glass.
Security screw
(M5x12)
3.
Remove 1off cap screw (M4x6), and disconnect the Earth wire.
4.
Disconnect the two connectors.
5.
Remove 4off security screw (M5x12), and remove the Sensor Assy.
6.
Reassemble in reverse order.
Ensure that the white connector is on the projector side and the red connector is
on the player side. Incorrect connection causes malfunction.
Player side
Earth wire
Cap screw (M4x6)
Note: Ensure that the Sensor Level Check is performed when Sensors have
been moved or replaced.
Security screw (M5x12)
Connector
(red)
(see 6-2-3-2 page 51)
Page 78
Retainer (B)
Glass
Retainer (A)
Security screw
(M5x12)
Sensor Assy
Connector
(white)
Projector Side
