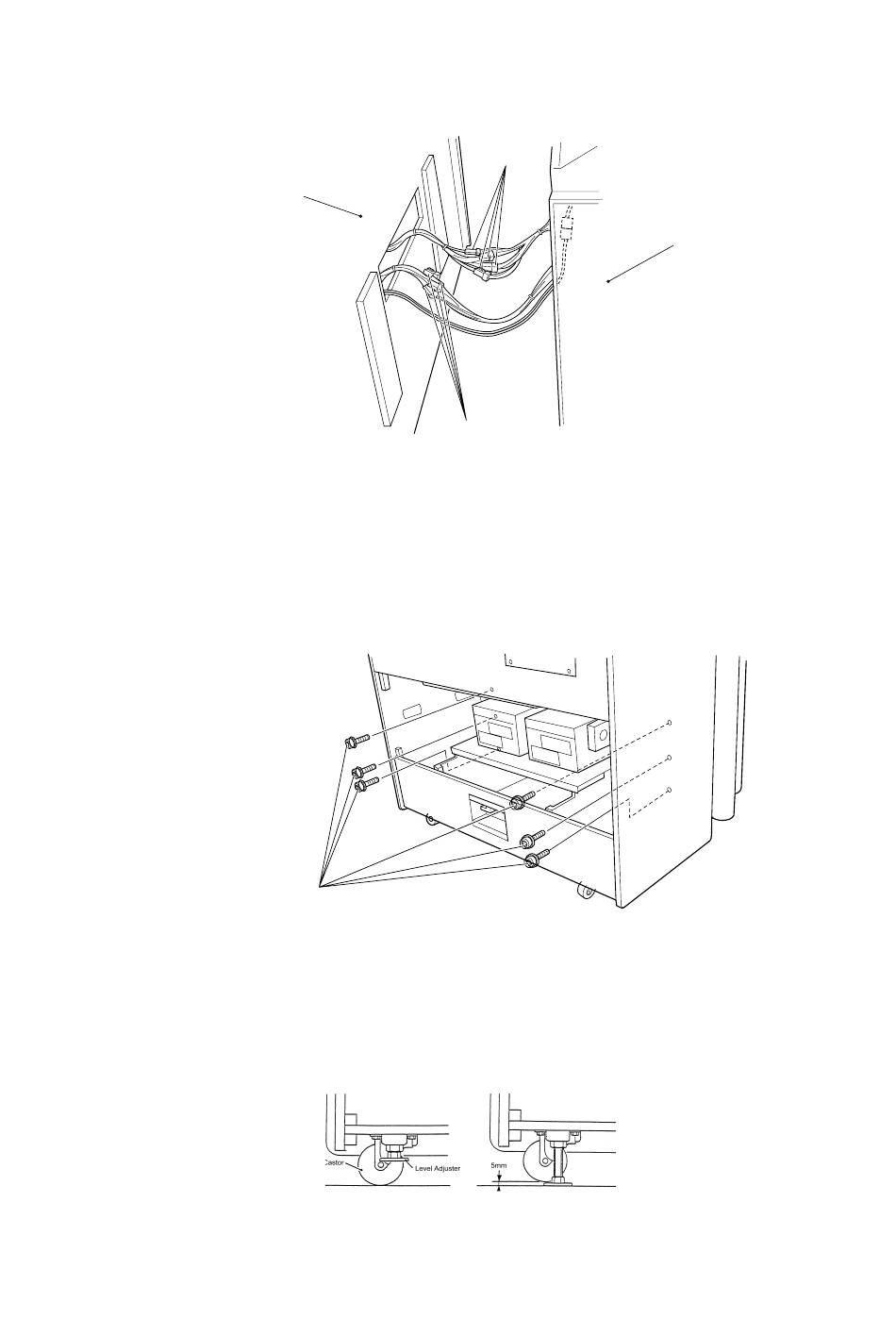

5-1 Fitting the Front assy to the Monitor assy

1. Place the Front assembly close to the Monitor assembly and connect the
connectors.
Front Assy
2. Push the Front assembly up to the monitor assembly completely, taking
care not to trap any wires.
3. Remove the rear door from the Monitor assembly.
4. Fit 6off hex head screws (M10x50) to retain the Front assembly to the
Monitor assembly.
Hex head screw (M10×50)
5. When the assembled game is in its final position, lower the eight (8) level
adjusters,(4off Monitor Assy and 4off Gun Assy), with a spanner so that
the machine is level and all castors are raised from the floor by approx.
5mm. Tighten the lock nuts with a spanner to ensure that the level
adjusters do not move.
Note: If the location site of this machine has a polished floor it is recommended
that rubber pads are fitted under the level adjusters to prevent the
machine sliding on the floor when in use.
Connector
Connector
Page 39
Control Assy
