7. Setting of Alarm Critical Value

Press MODE key enter the measurement mode of resistance or current. After
pressing down SET key for 3 sec, you can enter the setting function of alarm critical value.
At this point, the highest-digit begins to flash. First set the highest digit as indicated in
Figure 13 and Figure 14. Press MODE key to switch from high to low digits. As the current
figure flashes, press SET key to change the figures of "0, 1...9 "; After setting all the digits,
press down SET key for 3 seconds to confirm the alarm critical value currently set. A
successful setting would show the flashed alarm critical value, and then automatically
return to the measurement mode.

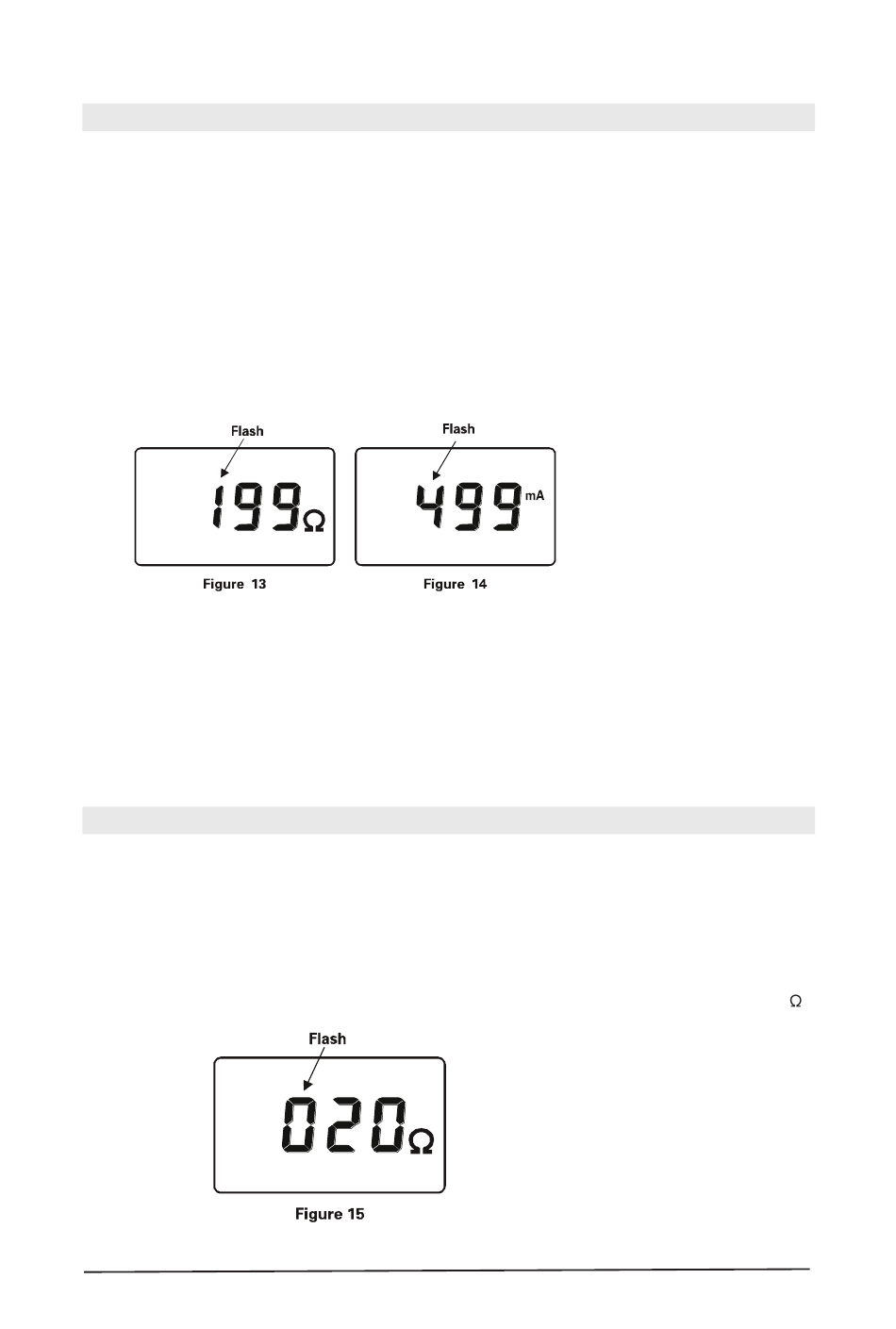

(Figure 13 Critical Value Setting of Resistance Alarm)
(Figure 14 Critical Value Setting of Current Alarm)
In the process of setting or After a successfully process, press POWER key can also quit
from setting functions of alarm critical value, return to the measuring state.
In the data access mode, it is required to press MODE key to switch to the measurement
mode, then the operation can be done to set the alarm critical value.

8. Access to Alarm Critical Value

Press MODE key to enter the mode of resistance or current measurement. Press down
SET key for 3 sec, you can access to check the alarm critical value, which would flashes
in high-digit. The value accessed was set in the last time. And again press down SET key
for 3 sec or POWER key to quit from the access state and return to the measuring state.
As indicated in Figure 15, the alarm critical value of resistance set in the last time is 20 .
