. Symbol of low battery voltage: when the battery voltage is lower than 5.3V, the
symbol shows. At this time, it cannot guarantee accuracy of the measurements. Batteries
should be replaced.
. "OL " symbol indicates that the measured resistance has exceeded the upper limit of
the Meter.
. "L0.01 " symbol indicates that the measured resistance has exceeded the lower limit
of the Meter.
. "OL A" symbol indicates that the measured current has exceeded the upper limit of the
Meter.
. Alarm symbol: when the measured value is greater than the critical value of alarm
setting, the symbol flashes.
. Symbol of full data storage: memory is full of data units of 50, and can no longer
continue to store data.
. Symbol of access to data: to display in an access to data, also including the
number of data.
. Noise signal: the symbol shows in the measurement of grounding resistance at a
greater interference current in the loop. At this time it cannot guarantee accuracy of the
measurements.

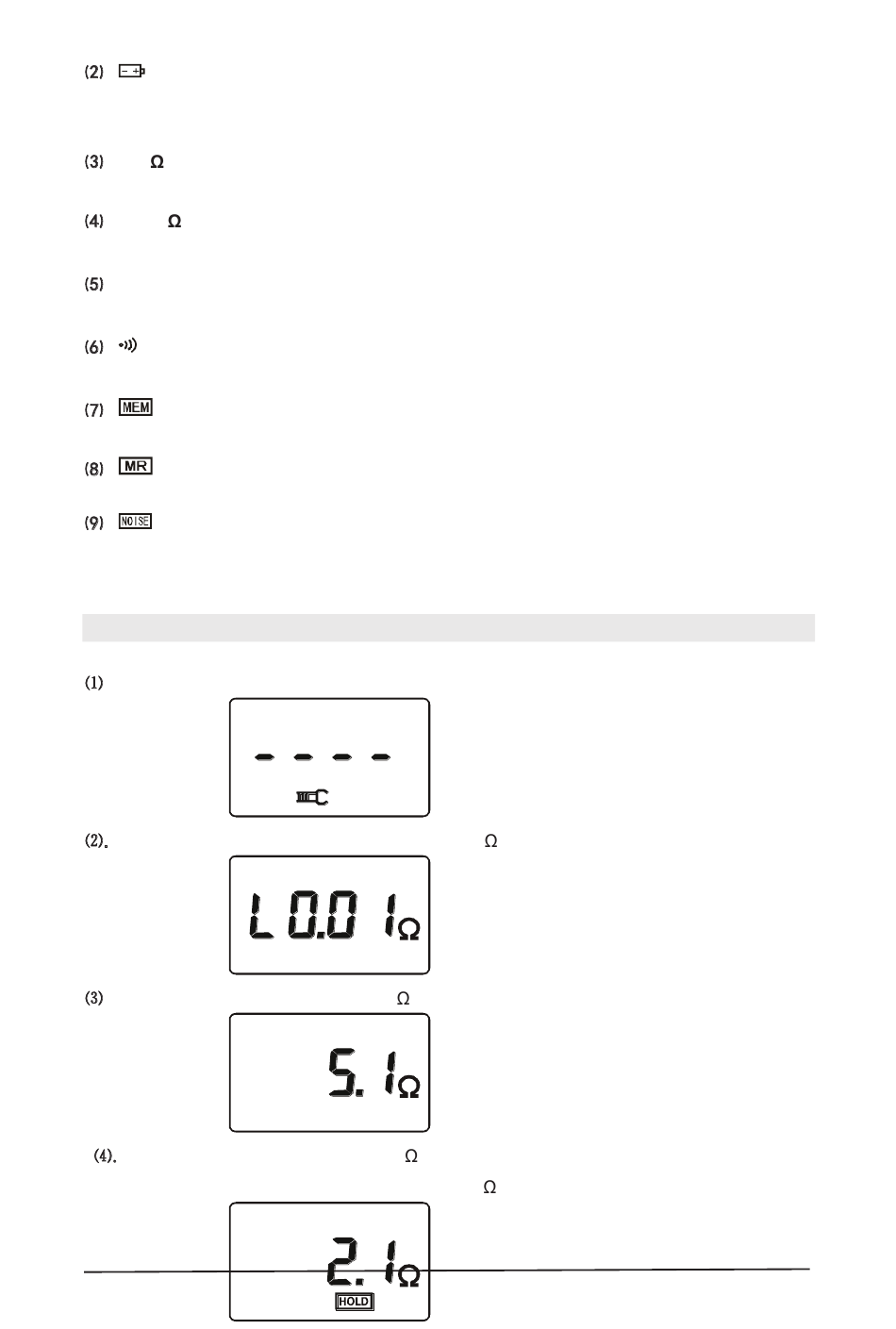

3. Examples Illustrated
. ---Jaw is in open state, and cannot measure
---Measured loop resistance is less than 0.01
. ---Measured loop resistance is 5.1
---Measured loop resistance is 2.1
---Lock the current measurement value: 2.1
