INSTALLATION INSTRUCTIONS

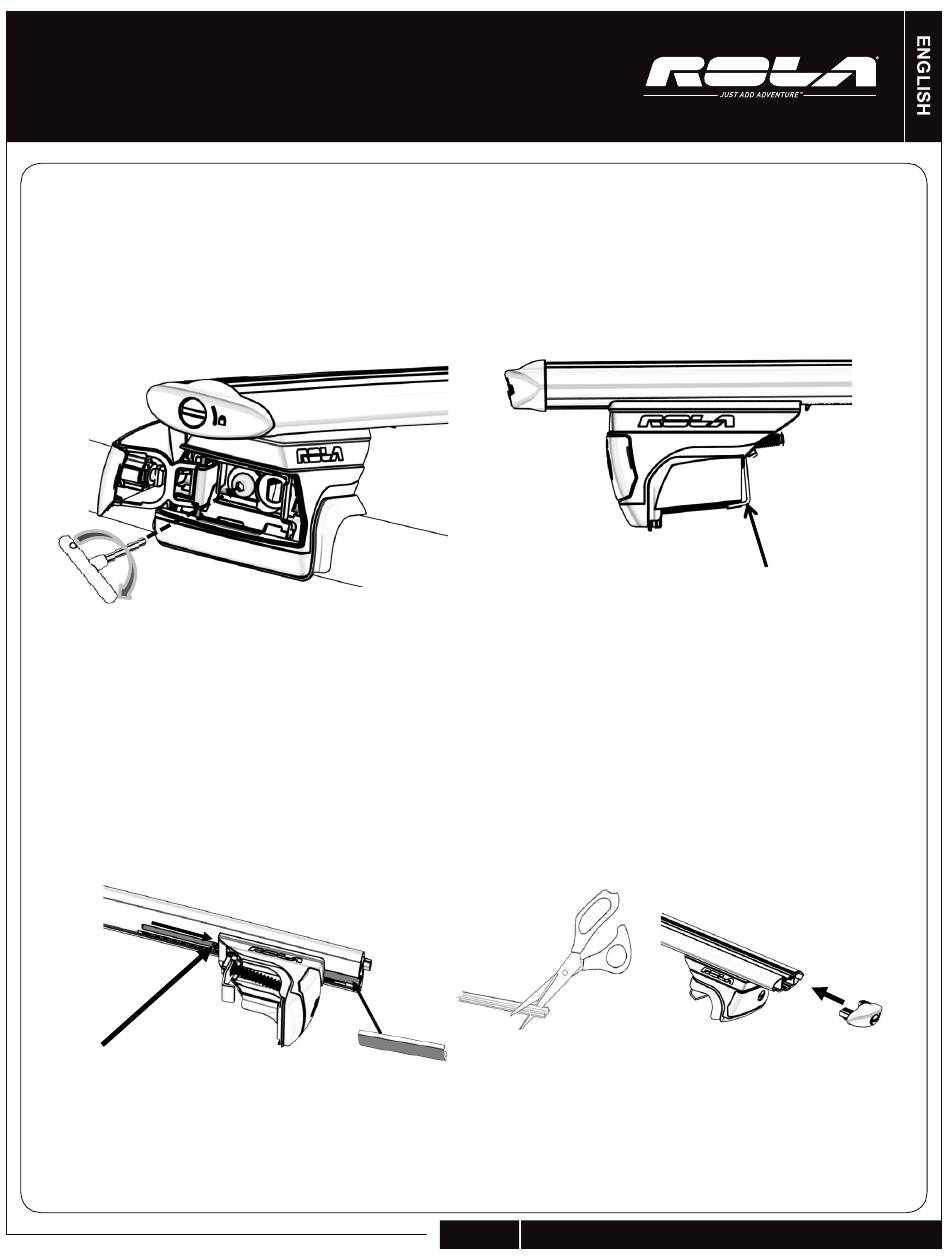

6. Turn the "T" wrench in a clockwise direction to tighten the end support to the vehicles side rails.
Fig. G. Must be firmly turned (equivalent to 4Nm or 35 in/ lbs.) to achieve a positive and tight fit.
Insure the strap is properly fit on the rail or bracket. Repeat this procedure on all end supports.
Note: See appendix A for other rail mounting configurations
Fig. G
7. Slide the position slider tabs outboard until they touch the back of the RBE end supports
leaving no gaps. Slide the outer under-­cover into place and mark with a pencil for length,
remove and cut. Tip: Cut approx. 1/8" or 2mm longer than needed to avoid gaps. Slide
under-­covers into place. Replace the end caps and lock in place. Fig. H.
Fig. H
Position slider tab.
Locking strap firmly pressed against
and engaged on the vehicle's rail
Cut outer under-­cover &
slide into place.
PAGE 9 59974N Rev A • Questions? (800) 234-­6992 • ROLAProducts.com
Slide end caps in
place & lock.
