green light
B1
B2
B3
Charging indicator
This charger is designed to detect some
problems that can arise with battery packs.
Indicator lights indicate problems (see table
below). If this
occurs, insert a new battery pack to
determine if the charger is OK. If the new
battery charges correctly, then the original
pack is defective and should be returned to
a service center or recycling service center.
If the new battery pack displays the same
problem as the original Battery Pack, have
the charger tested at an authorized service
center.
Light ON/OFF flash Status
Red on
Red flash - - - -
Green on
Green flash - - - -
40
red light
Charging
Defective
battery
Fully charged
Battery too
Hot/cold
OPERATION

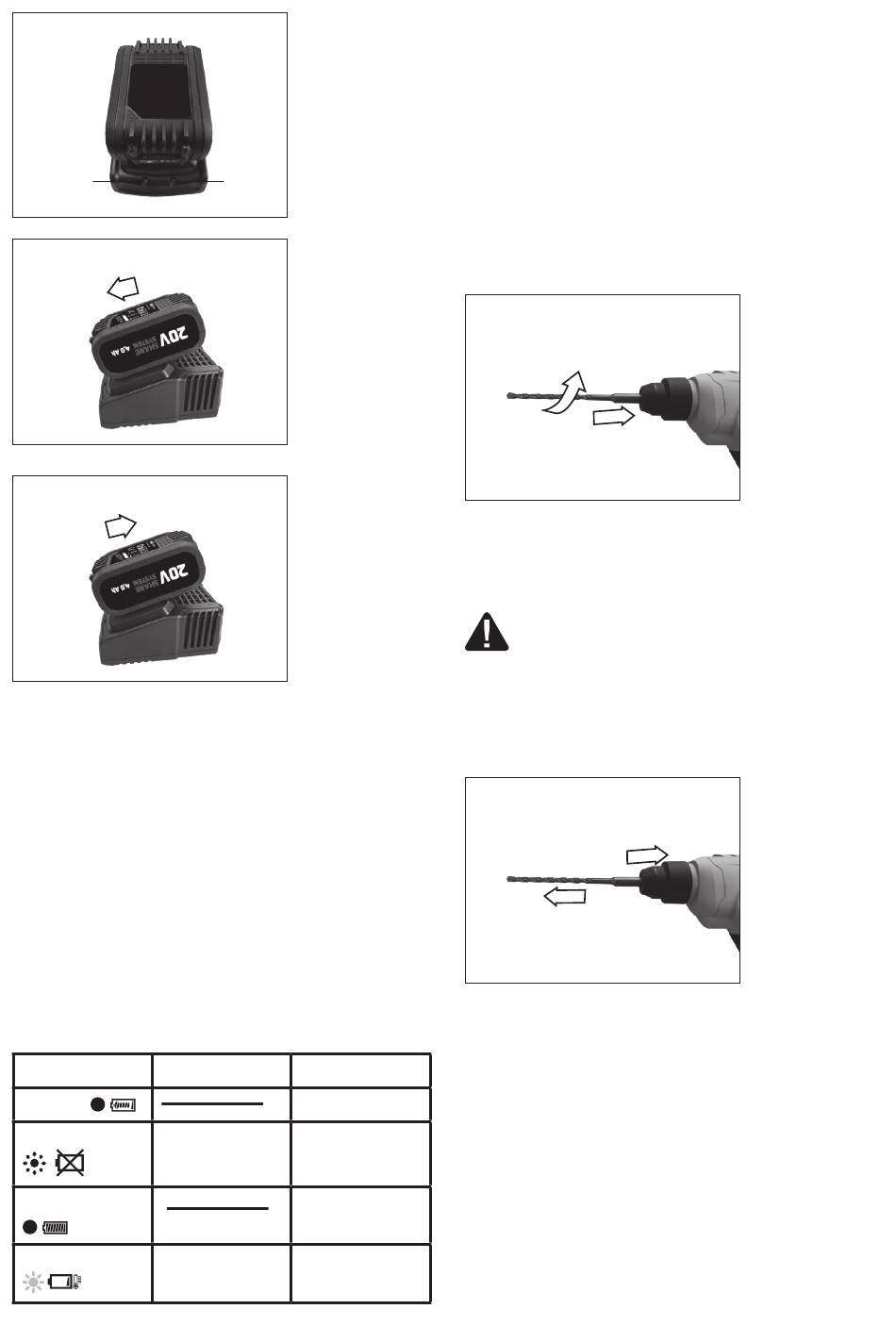

1. INSERTING AND REMOVING DRILL BIT IN
SDS
Take care that the dust protection cap (1) is
not damaged when changing tools.
— INSERTING (See FIG. C1)
Clean and lightly oil the bit before inserting.
Insert the dust-free bit into the bit holder with a
twisting motion until it latches.
The bit locks itself. Check the locking by pulling
on the tool.
C1
— REMOVING (See FIG. C2)
Retract back the bit holder locking sleeve (2) and
pull out the bit.
WARNING!Your new Rotary Hammer
generates powerful forces to get your job
done quickly and effectively. These forces may
cause inferior quality SDS bits to break and jam
in the chuck, We therefore recommend that only
high quality SDS bits be used with this tool.
2
C2
2. ON/OFF SWITCH WITH VARIABLE SPEED
CONTROL (See D)
Depress to start and release to stop your tool.
This tool has a variable speed switch (4) that
delivers higher speeds with increased trigger
pressure - speed is controlled by varying the
pressure applied to the switch.
