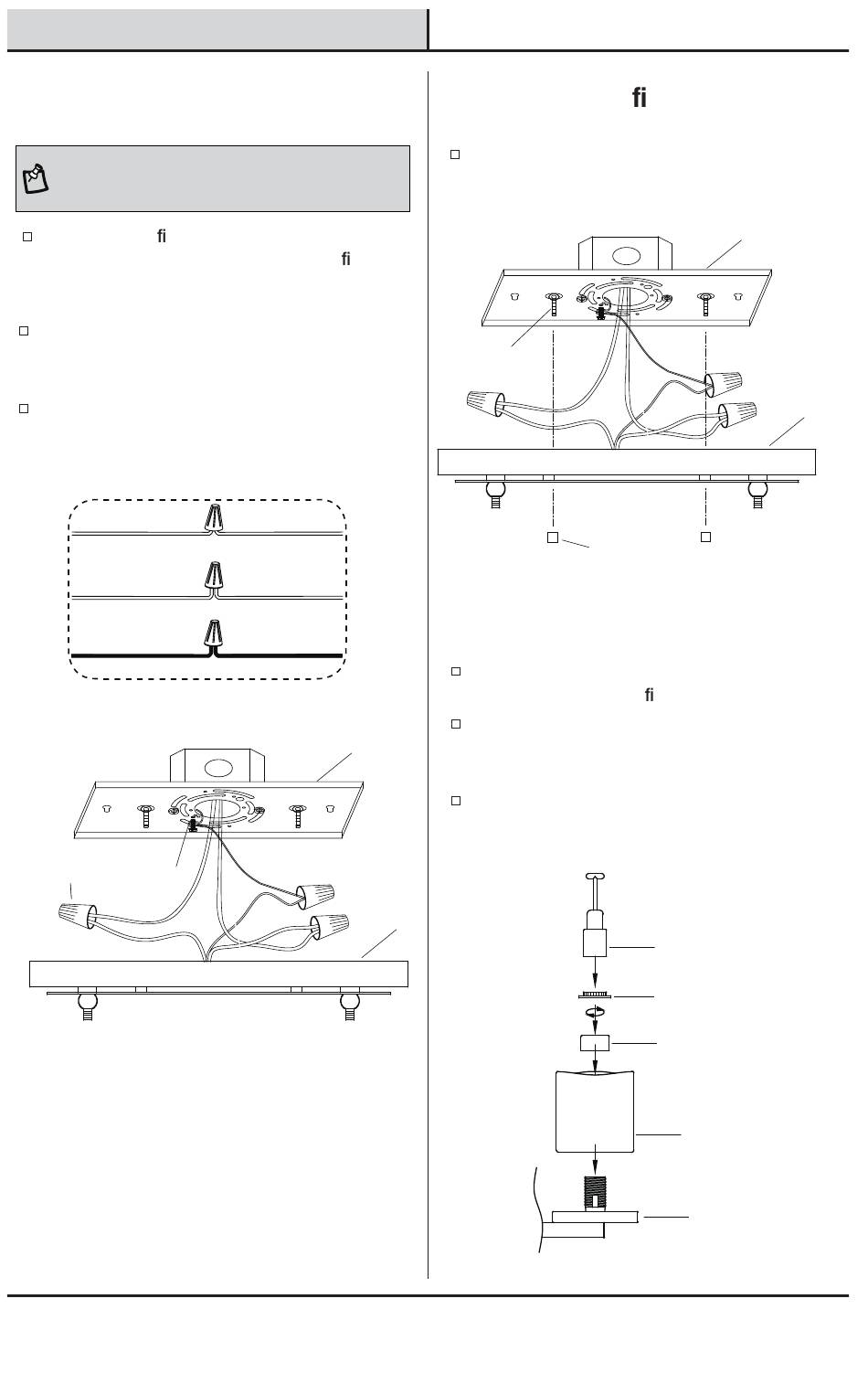

Installation (continued)
4
Connecting the wires
NOTE: Always use wire nuts (EE) or marrettes (included) to
connect wires and push all excess wires and connections back
into junction box.
Push all slack xture wire through the canopy (A)
and into the outlet box. Trim the excess xture
wire, leaving a minimum of 6 in. hanging out of
the outlet box.
Connect the ground wire from the branch circuit
to the ground screw (DD) on the mounting plate
(FF).
Connect the chandelier cable as follows:
WHITE WIRE
FROM HOUSE
BLACK WIRE
FROM HOUSE
GROUND WIRE
FROM HOUSE
EE
DD
RIBBED BROWN
FROM FIXTURE
SMOOTH BROWN
FROM FIXTURE
GROUND WIRE
FROM CANOPY
FF
A
5
Installing the xture body
Install the canopy (A) to the mounting plate (FF)
by securing the two ball nuts (BB) to the two
screws (AA).
AA
6
Installing the glass shade
Remove the socket ring (MM) and glass holder (LL)
from the socket of the xture body (D) by hand.
Place the glass shade (C) and glass holder (LL) on
the socket. Secure with the socket ring (MM) by
using the socket ring tool (NN). Do not overtighten.
Repeat for the other glass shades (C).
6
FF
BB
NN
MM
LL
C
