OPERATING INSTRUCTIONS

Restore power to the ceiling fan and test for proper operation.
HI, MED, and LOW buttons:
These three buttons are used to set the fan speed as follows:
HI = High speed
MED = Medium speed
LOW = Low speed
OFF button:
This button turns the fan off.
The " " button: turns the light ON or OFF and also controls the brightness setting.
Press and hold button to set the desired brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release button to turn the light ON or OFF.
This control system is NOT designed to "Reverse" the rotation of the blades. To set the
fan blades in reverse, the reverse slide switch is located on the top of the motor housing.
Do not operate reversing switch while fan blades are in motion. Fan must be turned off
and blades stopped before reversing blade direction.
16 | KICHLER.COM

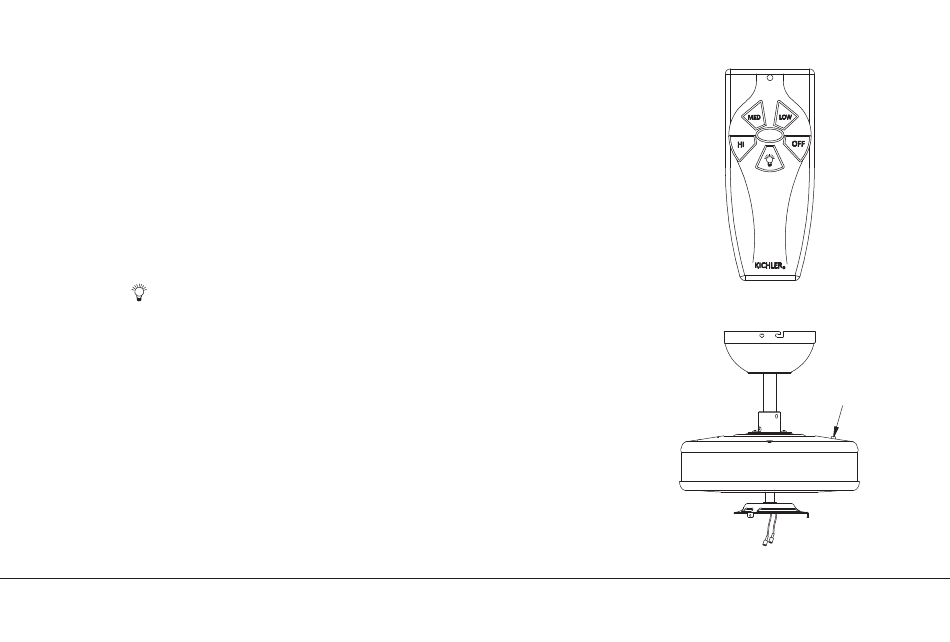

Fig. 19
Reverse slide switch
Fig. 20
