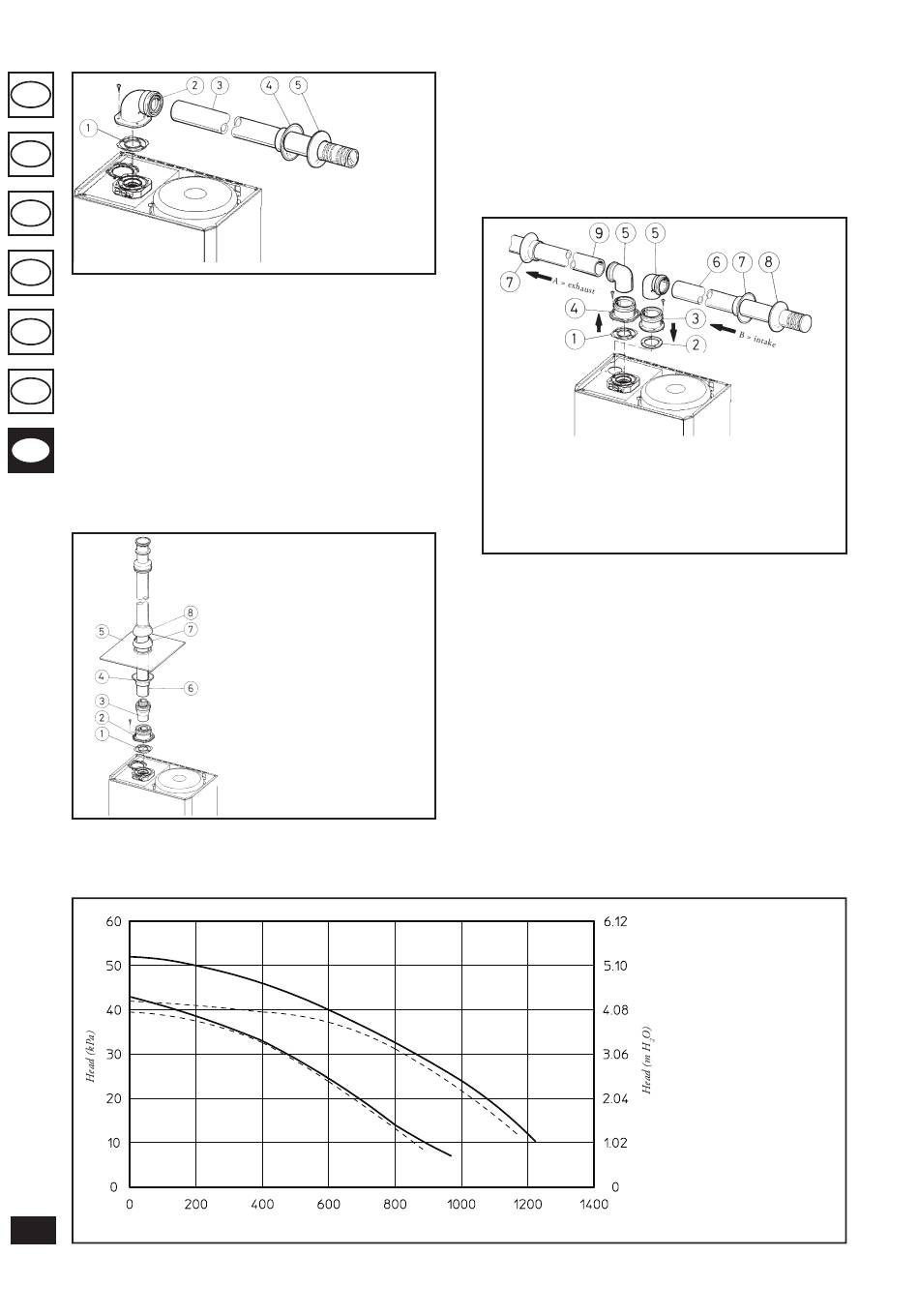

• Snap-fit couplings of concentric pipes or extensions and elbow fittings
Ø60/100. To install extension couplings on other flue extraction components,
proceed as follows: fit the concentric pipe or concentric elbow with the male
HU
section (smooth) on the female section (with lip-seal) of the previously installed
component to the end stop to ensure perfect sealing of the coupling.
Vertical kit with aluminium tile Ø 80/125. Kit assembly: install the concentric
RO flange (2) on the innermost hole of the boiler taking care to insert the seal (1)
supplied with the kit and tighten by means of the screws supplied with the boiler.
Fit the male section (smooth) of the adapter (3) coin the female section of the
concentric flange (2). Installing the imitation aluminium tile. Replace the tile
with the aluminium sheet (5), shaping it to ensure off-flow of rainwater. Position
IE
the fixed half-shell (7) on the aluminium tile and insert the intake/exhaust pipe
(6). Fit the concentric terminal Ø 80/125 with the male section (6) (smooth), in
the female section of the adapter (3) (with lip seal) to the end stop, ensuring that
washer (4) is already fitted to ensure sealing efficiency of all couplings.
Head available on system.
78
The kit comprises:
1 - Seal (1)
1 - Concentric 90° bend (2)
1 - Intake/exh. concentric pipe
Ø60/100 (3)
1 - Internal washer (4)
1 - External washer (5)
The kit comprises:
1 - Seal (1)
1 - Female concentric flange (2)
1 - Adapter Ø 60/100 for Ø
80/125 (3)
1 - Washer(4)
1 - Aluminium tile (5)
1 - Int./Exh. concentric pipe
Ø 80/125 (6)
1 - Fixed half-shell (7)
1 - Mobile half-shell (8)
A
D
Flowrate (l/h)
• Snap fit extension pipe fittings and concentric elbows. To install extension
couplings on other flue extraction components, proceed as follows: fit the
concentric pipe or concentric elbow with the male section (smooth) on the
female section (with lip-seal) of the previously installed component to the
end stop to ensure perfect sealing of the coupling.
Separator kit Ø 80/80. The separator kit Ø 80/80, enables the division of the
flue exhaust pipes and air intake pipes according to the diagram shown in the
figure. Combustion products are expelled from duct (A). Air is taken in through
duct (B) for combustion. Both ducts can be routed in any direction.
The kit comprises:
1 Seal (1)
1 - Flange seal (2)
1 - Female intake flange (3)
1 - Female exhaust flange (4)
• Assembly of separator kit Ø 80/80. Install flange (4) on the internal
hole of the boiler taking care to insert the seal (1) supplied with the
kit and tighten by means of the screws on the boiler. Remove the flat
flange on the outermost hole and replace with flange (3) inserting seal
(2) already fitted on the boiler and tighten with the screws supplied.
Joins bends (5) with the male section (smooth) in the female section of the
flanges (3 and 4). Fit the intake terminal (6) with the male section (smooth)
in the female section of the flange (5) to the end stop with the internal and
external washers inserted. Join the exhaust pipe (9) with the male section
(smooth) in the female section of the bend (5) to the end stop ensuring that the
internal washer is fitted and to ensure sealing efficiency of the couplings.
Circulating pump.
Zeus Mini series boilers are supplied with a built-in circulating pump with 3-
position electric speed control. The boiler does not operate correctly with the
circulating pump on first speed.
To ensure optimal boiler operation, in the case of new systems (single pipe and
modul) use the circulating pump at maximum speed. The circulation pump is
already fitted with a capacitor.
C
B
2 - 90° bend Ø 80 (5)
1 - Intake terminal Ø 80 (6)
2 - Internal washers (7)
1 - External washer (8)
1 - Exhaust pipe Ø 80 (9)
A = Head available on third
speed setting
B = Head available on second
speed setting
C = Head available on third
speed setting with by-pass
(optional) inserted
D = Head available on second
speed setting with by-pass
(optional) inserted
