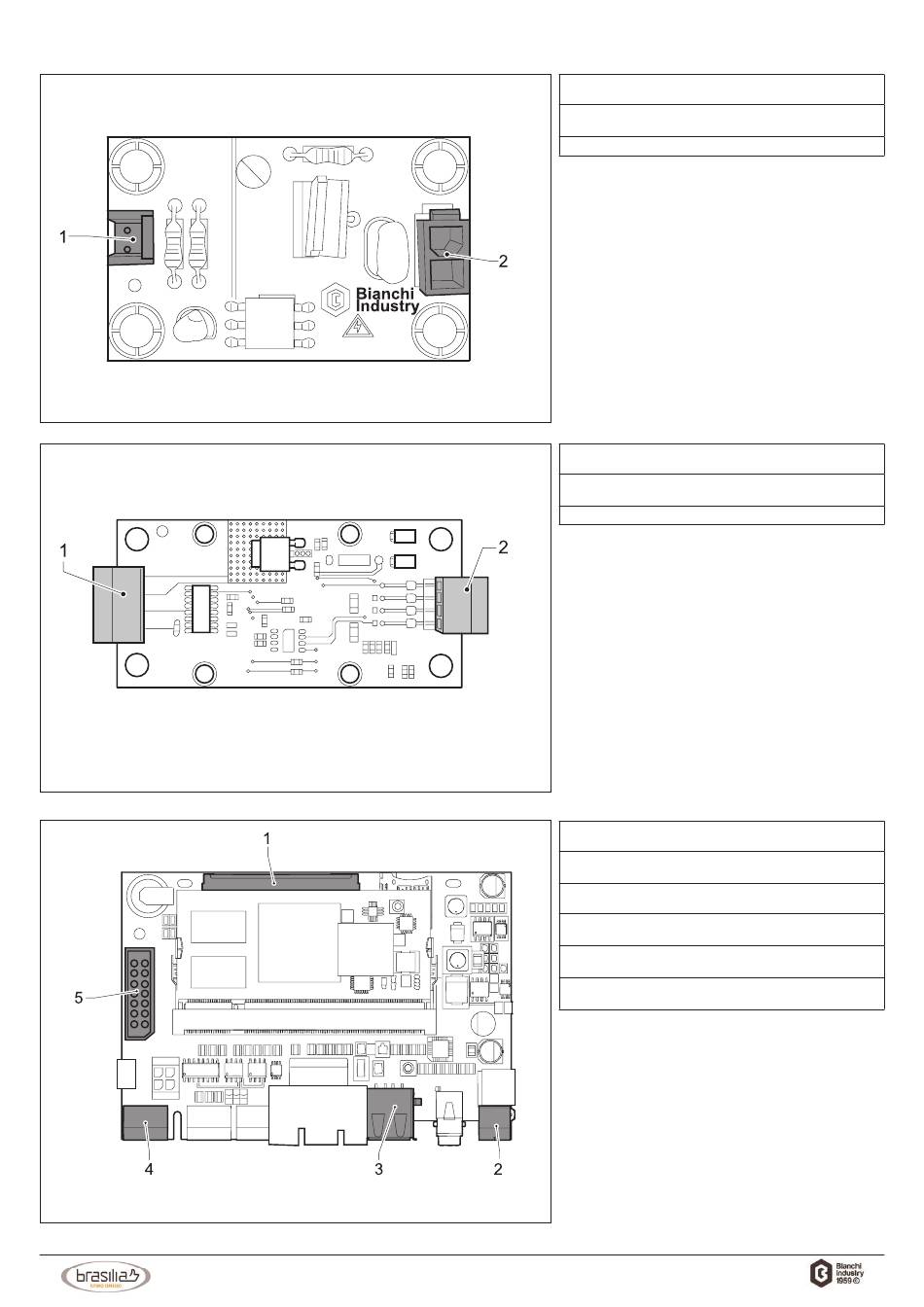

SCHEDA ESPANSIONE POMPA
PUMP EXPANSION BOARD
SCHEDA INTERFACCIA
INTERFACE BOARD
SCHEDA PC
PC BOARD
68
Scheda EXP pompa SF(CS) 0758xx
PUMP EXP board SF(CS) 0758xx
1) Ingresso attivazione TRIAC /
TRIAC activation input
2) Uscita TRIAC 230Vac / TRIAC 230Vac output
Scheda Interfaccia SF(CS) 0756xx
Interface board SF (CS) 0756xx
1) Interfaccia con Scheda PC
Interface with board PC
2) Interfaccia con CPU / Interface with CPU
Scheda PC
PC Board
1) Interfaccia LCD
LCD Interface
2) Alimentazione scheda 25Vdc
Supply board 25Vdc
3) Interfaccia USB
USB Interface
4) Interfaccia LIN-RS232
LIN-RS232 Interface
5) Interfaccia Touch
Touch Interface
