Other cables' shield termination can be made on the ground stud inside the enclosure (Figure
2-20).
2.5. Harsh Enclosure Cable Glands and Cable
Assignments
On the IND780 panel mount enclosure, cable shield terminations can be made using the strain
relief cable clamp provided on the back cover. Fold the shield braid back evenly over the cable's
insulation sheath and then fasten down the cable and shield with the clamp and screw onto the
back cover (Figure 2-19).
2.5.1.

Harsh Enclosure Cable Openings

Figure 2-21 and Table 2-1 show the uses and cable size limits of the various openings in the back
of the harsh enclosure. The pattern code is included for ease of reference.
64057253 | 14 | 08/2014

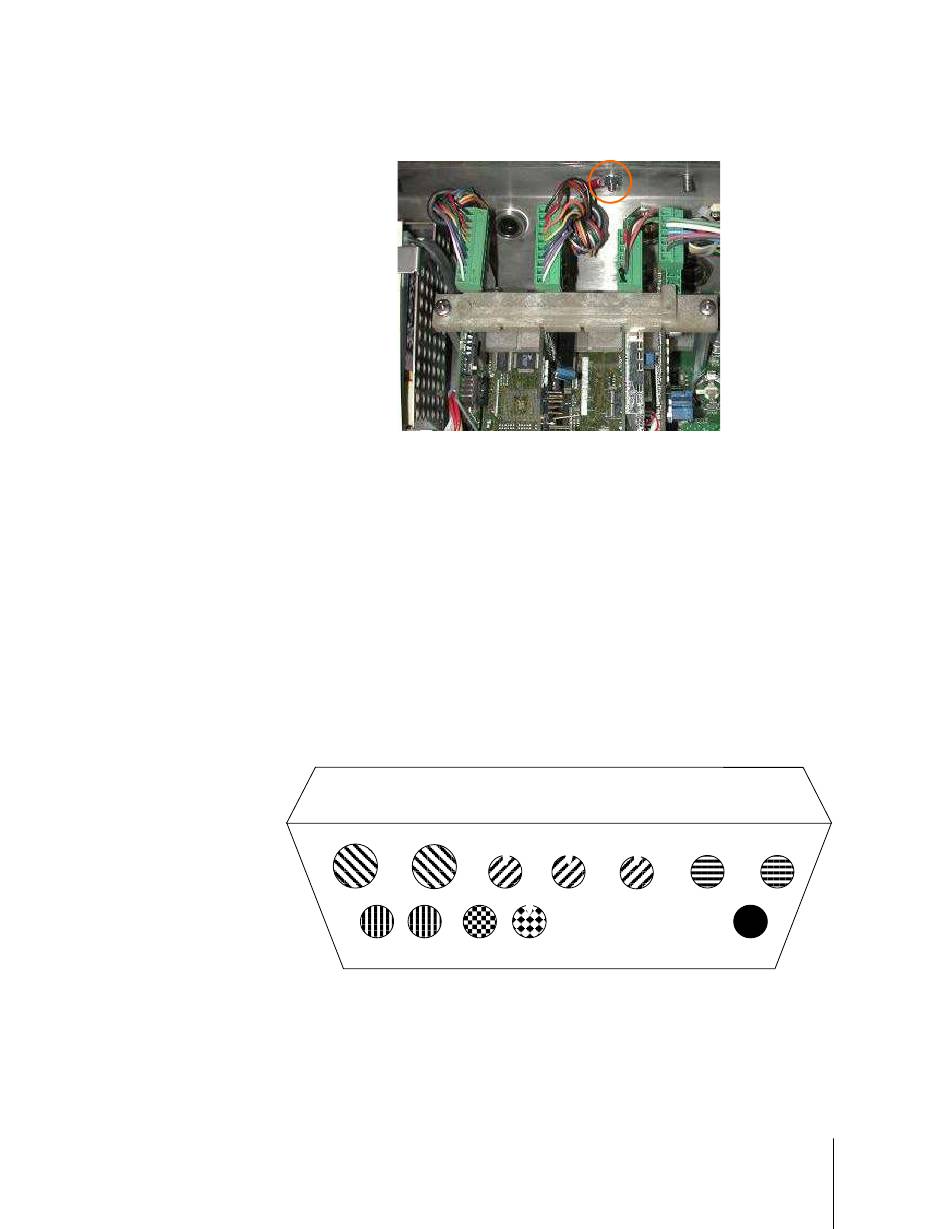

Figure 2-20: Shield Wire Termination, Harsh Enclosure
USB/Ethernet Ethernet/PDX
Scale 1
PLC 1 PLC 2 COM
Figure 2-21: Harsh Enclosure Cable Opening Assignments
Scale 3 Option 2
Scale 2
Scale 4
METTLER TOLEDO IND780 Installation Guide
Option 1
A/C
2-13
