English
inSTaLLaTion
Position your wheel in the lower leg dropouts. The hub should seat firmly in the dropouts. Be sure to
position the disc brake rotor in the caliper. Verify that neither the rotor, hub, nor rotor bolts interfere with
the lower legs. If you are unfamiliar with adjusting your disc brakes, see your brake manufacturer's
instructions.

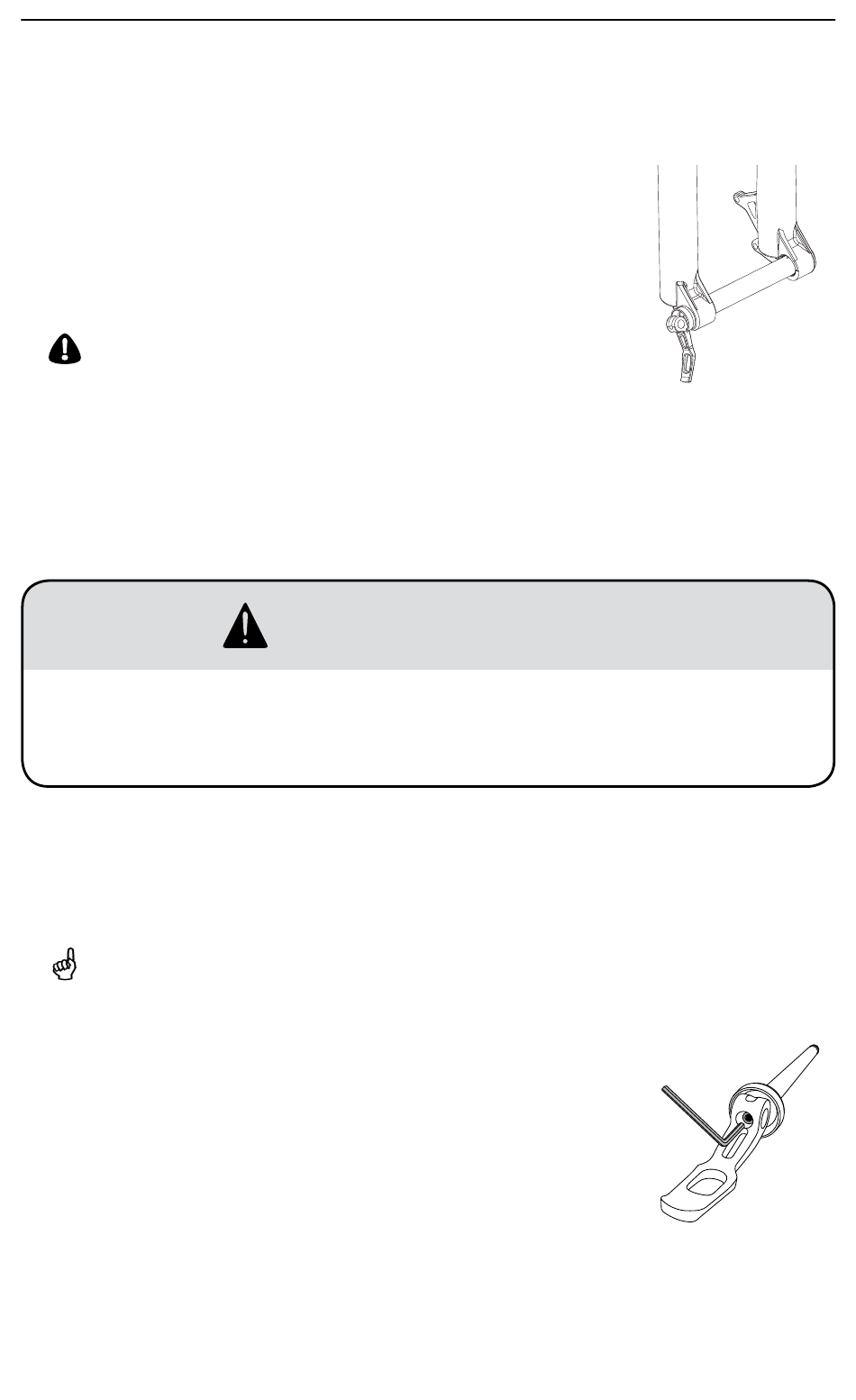

tigHten - maxle Lite
1. Place the Maxle lever in the open position. Ensure the lever engages with
the corresponding slot in the axle.
2. Slide the axle through the right side of the hub until it engages the threads
of the left drop out.
3. To tighten the axle into the dropout, position the quick release lever in the
slot on the axle flange and turn the axle lever clockwise until hand tight.
Never use any other tool to tighten the axle into the lower leg.
Over-tightening of the axle can damage the axle and/or the lower leg.
tigHten - maxle DH
1. Slide the externally threaded end of the Maxle DH through the drive side of the hub, until it engages
the threads of the lower leg dropout.
2. Use a 6 mm hex wrench to turn the
5.7 N·m (50 in-lb).
seCUre - maxle Lite
1. Lift the lever out of the corresponding slot in the axle and rotate to a point 180 degrees from where you
Dirt and debris can accumulate between the dropout openings. Always check and clean this
area when re-installing the wheel. Accumulated dirt and debris can compromise the security
of the axle, leading to serious and/or fatal injury.
want the lever to be located in the closed position.
2. To lock the axle into the lower leg, close the Maxle quick release lever.
3. The quick release mechanism is an "over-center cam", similar to the quick release found on many
bicycle wheels.
When closing the lever, tension should be felt when the quick release lever is in the horizontal
position (90 degrees to the lower leg), and the quick release lever should leave a clear imprint in
the palm of your hand. If resistance is not felt at the 90 degree position and if the lever does not
leave a clear imprint in the palm of your hand, tension is insufficient.
To increase tension, open the quick release lever and insert a 2.5 mm
hex into the tension adjuster located in the center of the lever cam.
Turn the adjuster clockwise one click and re-check lever tension.
Repeat until the quick release lever tension is sufficient.
