3 MAIN CONTROLS AND CONNECTIONS

3.1 The front panel

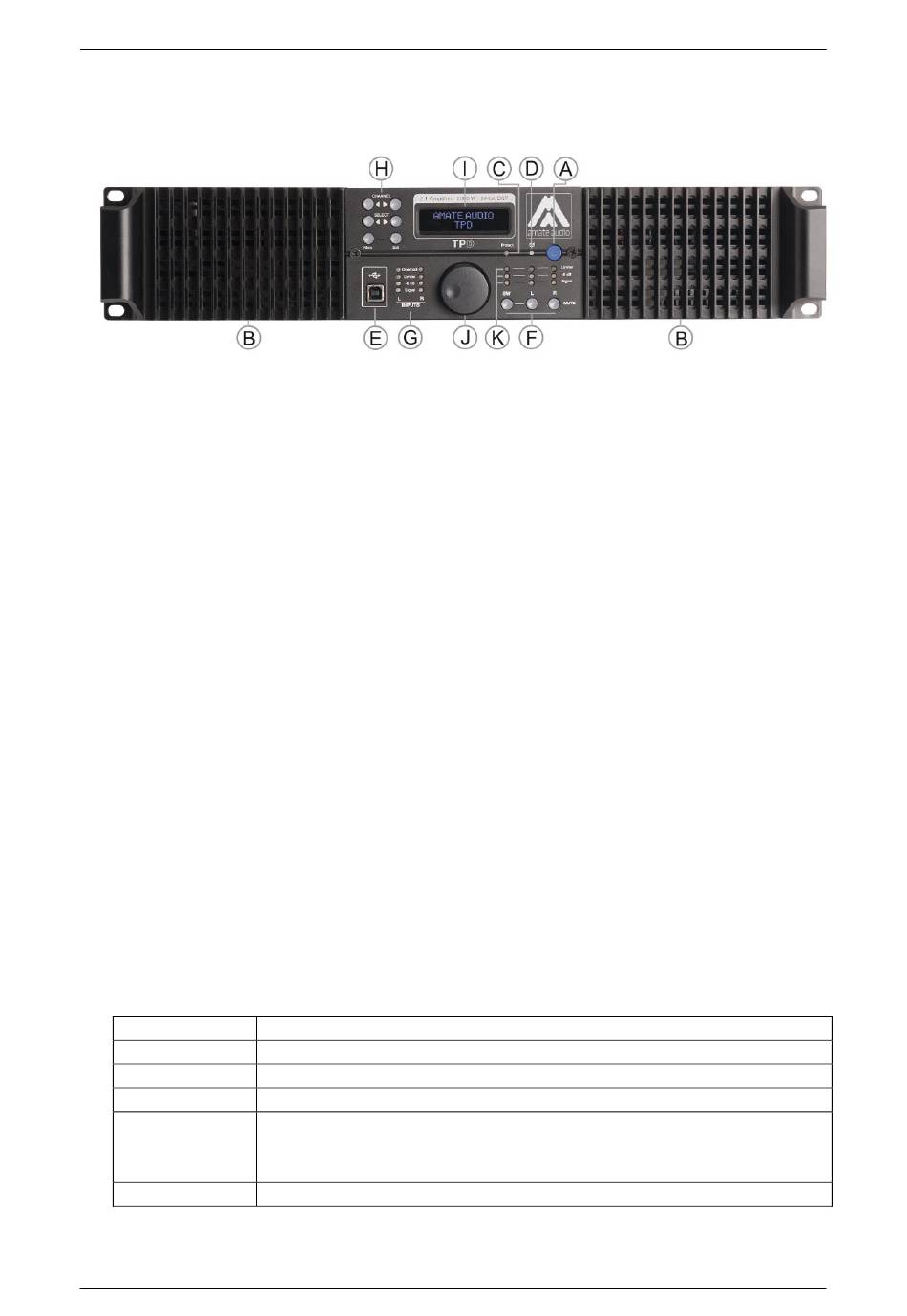

Fig. 1. Front panel view
A) Standby Switch – Press this switch to set the system in standby mode (red led
lit). Press again to set the unit in normal mode (white led lit).
B) Cooling outs – Forced air output for temperature regulation.
C) Protection – Led indicating the operation of any of the protection systems of one
or both channels. At power up (or recovering from standby or eco mode) it will
turn ON for a few seconds. If it does not turn OFF, indicates a problem of
malfunction of the amplifier.
D) EcoMode – Led is lit when the low power consumption mode is on (will
automatically happen after a few minutes without input signal). To wake up the
amplifier, signal must be fed to the inputs.
E) USB Connector – A standard type B USB connector for interface with a PC or
Mac. Software and driver must be installed prior to usage.
F) Mute keys – Press for Mute/Unmute the output channels. When a channel is
muted, this key will light up in red for indication.
G) Input signal LEDs - Show the current level of the Signal: Signal (-48dBu), -6dBu,
Limiter (orange), Overload (red). The Limiter led lights up if a gain reduction is
taking place (due to a programmed compressor). The Overload LED references
to the device's maximum headroom (+22dBu).
H) Menu Control keys - There are 6 menu keys, with the following functionality:
<Channel:
Channel>:
<Select:
Select>:
Menu:
Exit:
5
Choose previous channel for editing.
Choose next channel for editing
Select previous parameter for editing
Select next parameter for editing
This key has different functions depending on when it is used:
In the Main Screen: Access the System Menu.
-
In the Main Menu allows entering the System Menu.
-
Exit to the Main Menu
