Connection Diagram - Reolink Rlk12-500Wb4 Quick Start Guide

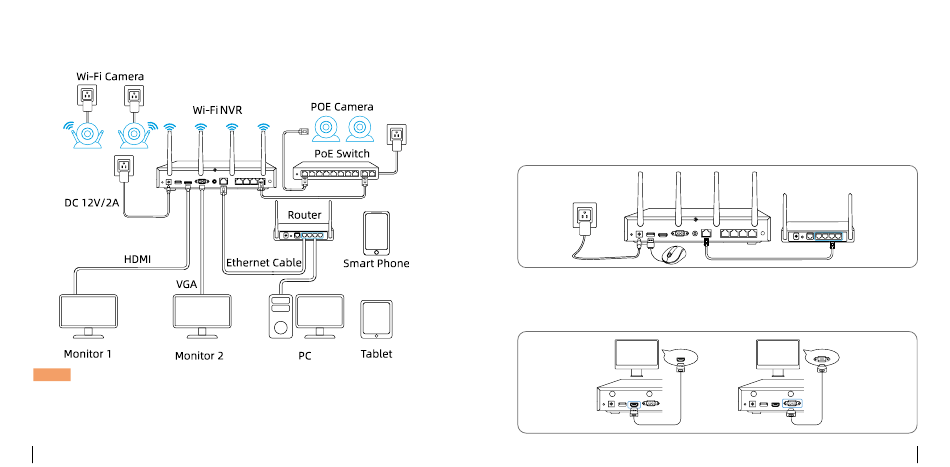

Network Topology Diagram
NOTE:
1.The NVR is compatible with both Wi-Fi and PoE cameras and allows the
connection of up to 12 cameras.
2.When connecting a PoE camera to the NVR, a power adapter is re-
7
quired to power the camera on.
3.To connect multiple PoE cameras, consider using a PoE switch for effi-
ciency.
4.It's recommended to directly sync Wi-Fi info from the NVR to the cam-
era for optimal stability.

Connection Diagram

NVR
1.Power on the NVR with the provided 12V power adapter.
2.Connect the NVR to your router with an Ethernet cable if you want
to remotely access your NVR via your smartphone or computer.
HDMI
Router
VGA
English 8
