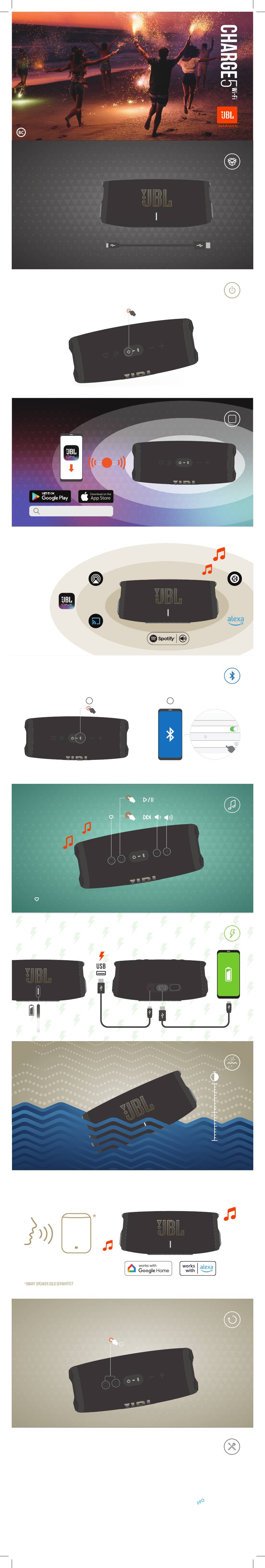

JBL Charge 5 Wi-Fi Quick Start Guide

quick
START
GUIDE
WHAT'S
IN THE
BOX
Power on
APP
JBL One
MUSIC STREAMING
Stream music through JBL One App or supported music services.
Bluetooth pairing
Play
Press to play the set playlist and speakers setting preset in the JBL One App.
Charging
100
%
50
%
20
%
WATERPROOF
DUSTPROOF
IP67
Works with Smart Home
Factory reset
TECH SPEC
Transducer:
Rated output power:
Frequency response:
Signal-to-noise ratio:
Battery type:
Battery charge time:
Music play time:
USB ports:
USB charge out:
Bluetooth version:
Bluetooth profile:
Bluetooth transmitter frequency range: 2.4GHz-2.4835GHz
Bluetooth transmitter power:
Bluetooth transmitter modulation:
PA_JBL_Charge 5 Wi-Fi_QSG_Global_PV_V12.indd 1 PA_JBL_Charge 5 Wi-Fi_QSG_Global_PV_V12.indd 1
Wi-Fi
Connect your Android™ or iOS device to the Wi-Fi network through the
JBL One app and follow app instructions to complete speaker setup*.
*The availability of features will vary between countries and not all features may be available in your country.
1
×1
Moment
Complete setup in the Google Home or Amazon Alexa app.
>10
(53 x 93)mm woofer, 20mm tweeter
30W RMS for woofer,
10W RMS for tweeter
60Hz - 20kHz
> 80dB
Li-ion polymer 52Wh
(equivalent to 3.69V/14100mAh)
6hours (5V/3A)
up to 20hours (dependent on volume level
and audio content)
USB Type A x1, USB Type C x1
5V/2A(maximum)
5.3
AVRCP 1.5 and A2DP1.3
less than 9dBm(EIRP)
GFSK, π/4-DQPSK, 8DPSK
2
ON
×1
×2
S
5G Wi-Fi transmitter frequency range: 5.15-5.35GHz, 5.470-5.725GHz,
5G Wi-Fi transmitter power:
5G Wi-Fi modulation:
5G Wi-Fi network compatibility:
2.4G Wi-Fi transmitter frequency range: 2.4GHz-2.4835GHz
2.4G Wi-Fi transmitter power:
2.4G Wi-Fi modulation:
2.4G Wi-Fi network compatibility:
Product dimensions (W x H x D):
Net weight:
Packaging dimensions (W x H x D):
Gross weight:
Maximum operation temperature:
APP
Settings Bluetooth
Bluetooth
DEVICES
JBL Charge 5 Wi-Fi
Connected
Now Discoverable
IP67
30 mins
1m
5.725-5.825GHz
<20dBm
OFDM, DSSS (Direct Sequence Spread
Spectrum), DBPSK, DQPSK, CCK, 16QAM,
64QAM, 256QAM, 1024QAM
802.11a/b/g/n/ac/ax
<20dBm
OFDM, DSSS (Direct Sequence Spread
Spectrum), DBPSK, BPSK, QPSK, DQPSK,
CCK, 16QAM, 64QAM
802.11b/g/n
223 x 97 x 94mm/8.8 x 3.8 x 3.7"
1.0kg/2.2lbs
257 x 131 x 120mm/10.1 x 5.2 x 4.7"
1.7kg/3.7lbs
45°C
