National Panasonic RX-5080F Instrucciones De Manejo página 2

Printed in Japan
RADIO FREQUENCY RANGE:
POWER REQUIREMENT:
POWER OUTPUT:
SPEAKERS:
FREQUENCY RANGE:
RECORDING SYSTEM:
TAPE SPEED:
PROGRAM TIME:
FAST FORWARD and
REWIND TIME:
TRACK SYSTEM:
JACKS:
INPUT;
OUTPUT;
OTHERS;
DIMENSIONS:
WEIGHT:

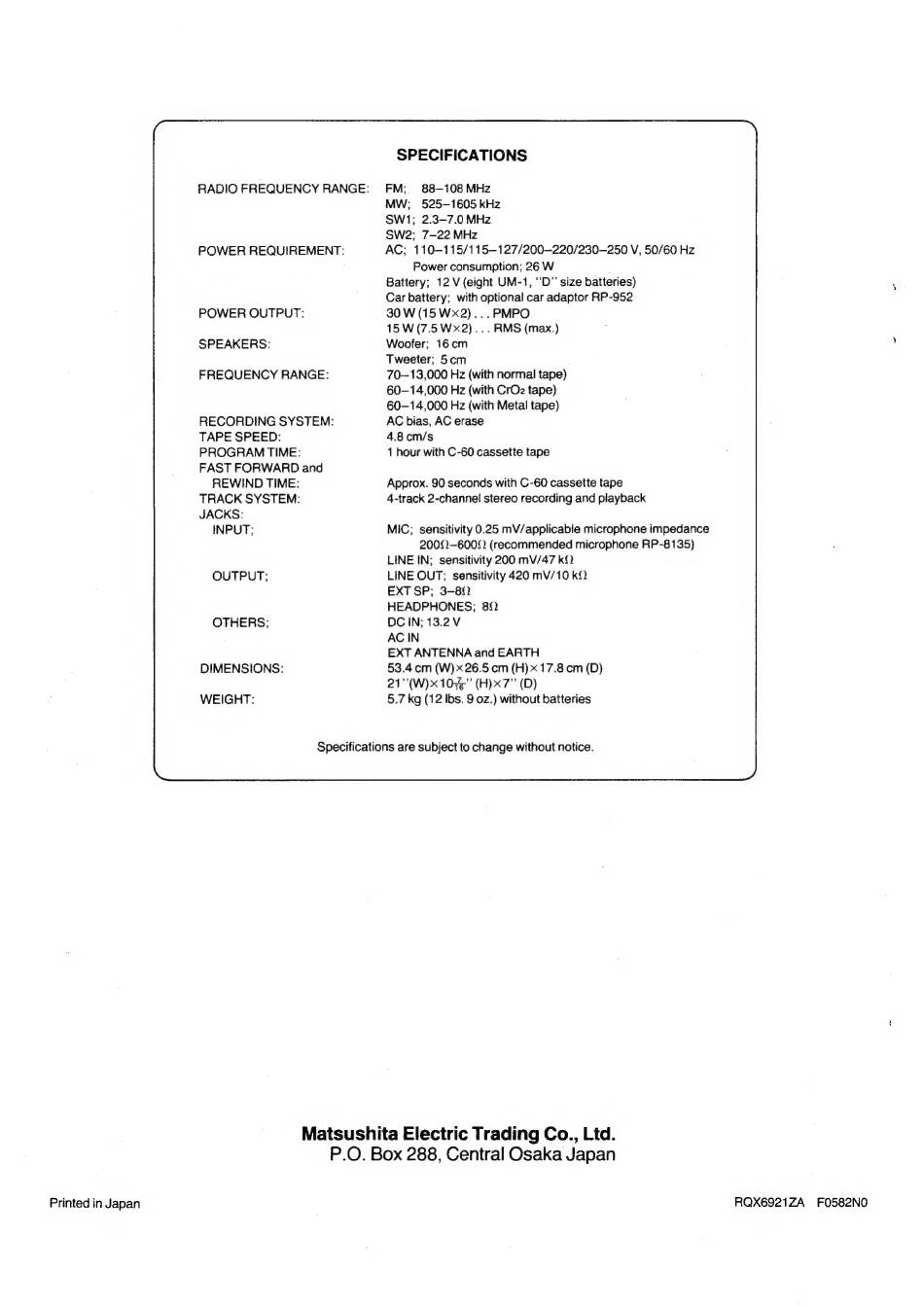

SPECIFICATIONS
FM; 88-108 MHz
MW; 525-1605 kHz
SW1; 2.3-7.0 MHz
SW2; 7-22 MHz
AC; 110-115/115—127/200-—-220/230-—250 V, 50/60 Hz
Power consumption; 26 W
Battery; 12 V (eight UM-1, ''D"' size batteries)
Car battery; with optional car adaptor RP-952
30 W (15 Wx2)... PMPO
15 W (7.5 Wx2)... RMS (max.)
Woofer; 16cm
Tweeter; 5cm
70—13,000 Hz (with normal tape)
60—14,000 Hz (with CrO2z tape)
60—14,000 Hz (with Metal tape)
AC bias, AC erase
4.8cm/s
1 hour with C-60 cassette tape
Approx. 90 seconds with C-60 cassette tape
4-track 2-channel stereo recording and playback
MIC; sensitivity 0.25 mV/applicable microphone impedance
2000-6002 (recommended microphone RP-8135)
LINE IN; sensitivity 200 mV/47 kf.
LINE OUT; sensitivity 420 mV/10 kQ
EXT SP; 3-802
HEADPHONES; 82
DC IN; 13.2 V
AC IN
EXT ANTENNA and EARTH
53.4 cm (W)x 26.5 cm (H)x 17.8 cm (D)
21°'(W)x 104% (H)x7"' (D)
§.7 kg (12 Ibs. 9 02.) without batteries
Specifications are subject to change without notice.
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
RQX6921ZA FO582N0
