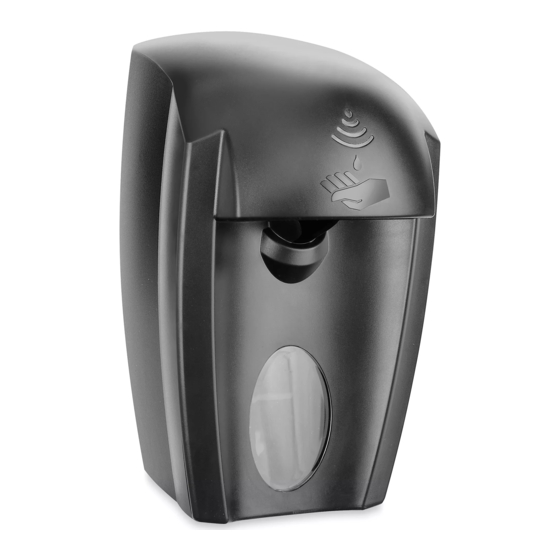

H-3415
AUTO FOAMING
SOAP DISPENSER
TOOLS NEEDED
Electric Drill Phillips Screwdriver
APPLYING DISPENSER LABEL
1. Peel label from
backing. The
adhesive is on the
FRONT of the label.
(See Figure 1)
2. Open dispenser.
Place label sticky side
down on the INSIDE of
the clear oval window.
(See Figures 2-3)
3. Close front of
dispenser.
(See Figure 4)
PAGE 1 OF 12
1-800-295-5510
uline.com
INSTALLATION
Figure 1
Figure 2
Adhesive Side
Dispenser Door
Dispenser Door
Opened
Opened
Figure 3
Label
Front
Figure 4
Pour le français, consulter les pages 9-12.
MOUNTING INSTRUCTIONS
For most applications, tape mounting is adequate.
For porous, textured or wallpapered surfaces, screw
mounting or a combination of screw and tape
mounting is recommended.
TAPE MOUNTING
IMPORTANT! Dispenser
opens to the front. For
ideal placement, the
dispenser should be
mounted 3" above
any countertop, fixture
or obstruction, and
2" below any cabinet,
fixture or obstruction.
(See Figure 5)
1. Clean the mounting surface
thoroughly using any type
of general purpose cleaner
and a paper towel.
(See Figure 6)
NOTE: Ensure surface is
completely dry before
proceeding.
2. Remove the protective
backing from the tape
pad on the back of the
dispenser. Make certain
that the mounting surface
is clean and dry. Carefully
position the dispenser to the
desired location and press
firmly to the surface for 30
seconds. (See Figure 7)
Para Español, vea páginas 5-8.
Figure 5
2"
11"
7.5"
3"
Figure 6
Figure 7
0324 IH-3415
