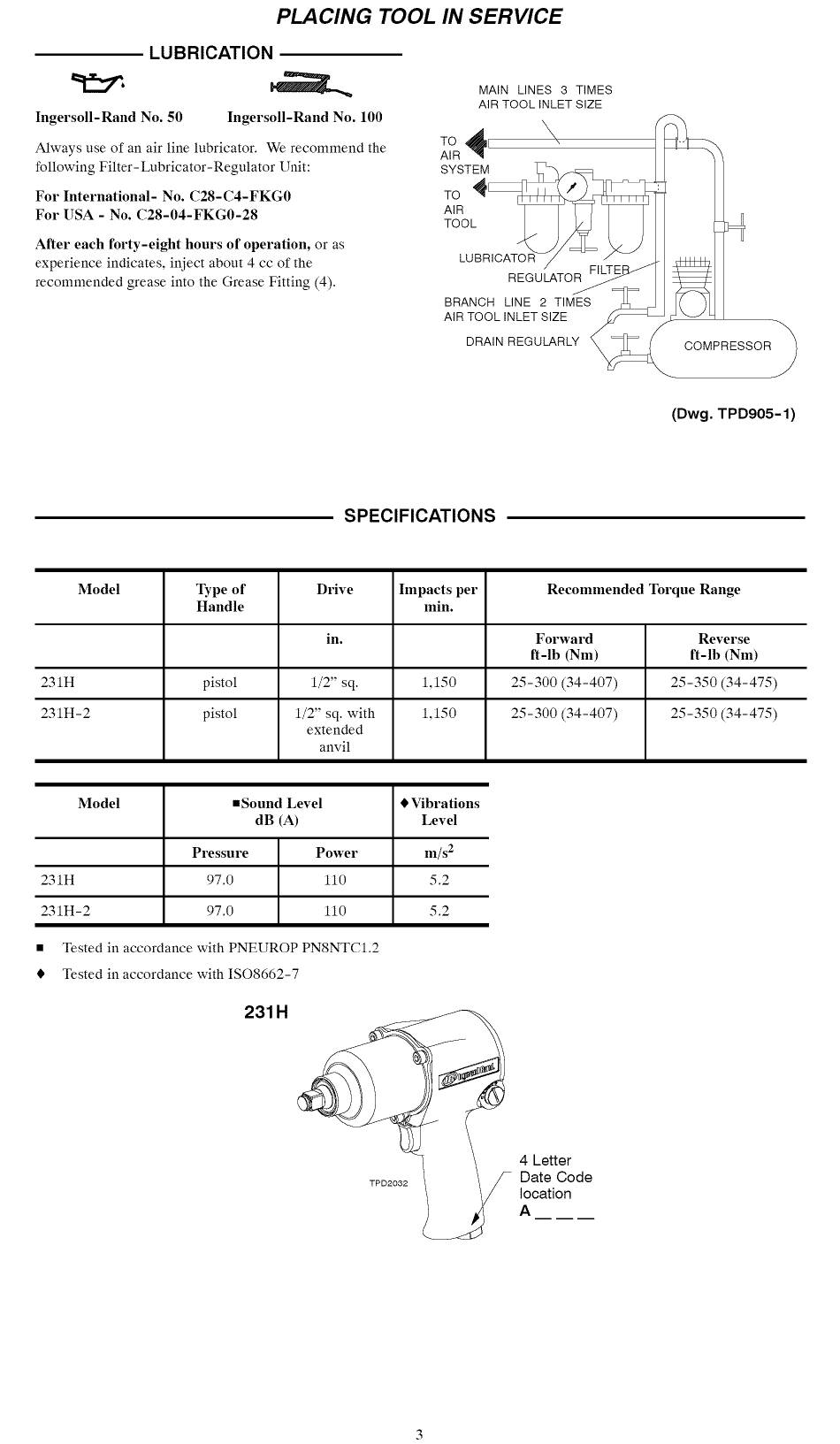

PLACING TOOL IN SERVICE
LUBRICATION
Ingersoll-Rand No. 50 Ingersoll-Rand No. 100
Always use of an air line lubricator. We recommend the
following Filter-Lubricator-Regulator Unit:
For International- No. C28-C4-FKG0
For USA - No. C28-04-FKG0-28
After each forty-eight hours of operation, or as
experience indicates, inject about 4 cc of the
recommended grease into the Grease Fitting (4).
MAIN LINES 3 TIMES
AIR TOOL INLET SIZE
TO 4L \'
AIR "_
SYSTEM
LUBRICATOR
REGULATOR
BRANCH LINE 2 TIMES
AIR TOOL INLET SIZE
DRAIN REGULARLY
COMPRESSOR_'_
J
(Dwg. TPD905-1)
SPECIFICATIONS
Model
Type of
Handle
Drive
hnpacts per
min.
in,
1/2" sq.
1/2" sq. with
extended
anvil
Recommended Torque Range
Forward Reverse
ft-lb (Nm) ft-lb (Nm)
231H pistol 1,150 25-300 (34-407) 25-350 (34-475)
231H-2 pistol 1,150 25-300 (34-407) 25-350 (34-475)
Model • Vibrations
Level
• Sound Level
dB (A)
Pressure Power
97.0 110
97.0 110
m/s 2
231H 5.2
231H-2 5.2
• Tested in accordance with PNEUROP PNSNTC1.2
• Tested in accordance with ISO8662-7
231H
TPD2032
4 Letter
Date Code
location
A
