Prerequisites:
– Memory card (SDHC, max 32 GB) is in-
serted in the slot of the unit
Press to switch the unit on
i
Start scanning:
On the touch screen, tap on Scan
i
Enter the patient data
i
Select the image settings and scanning mode
i

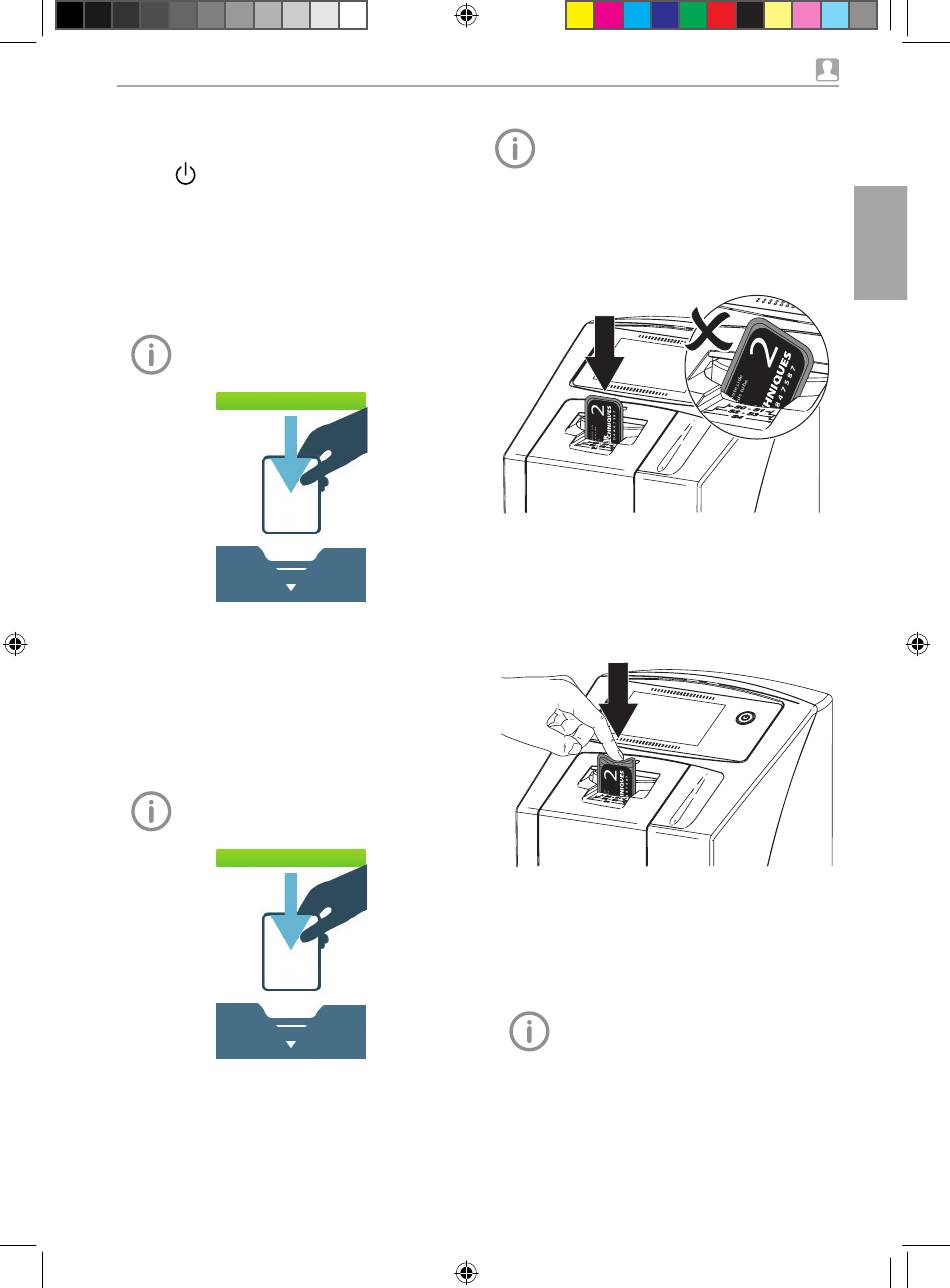

An animation on the touch screen prompts
for insertion of the imaging plate
Insert the imaging plate only once the
bar above the animation is green
Figure 6: Example of the animation
prompting for insertion of the imaging plate
Start quick scan:
On the touch screen, tap on Quick scan
i
Select the scanning mode
i
An animation on the touch screen prompts
for insertion of the imaging plate
Insert the imaging plate only once the
bar above the animation is green
Figure 7: Example of the animation
prompting for insertion of the imaging plate
2142100008L41 1708V002
OBJ_DOKU-0000002448-001-mehrere.indd 29
Scanning the PSP
In order not to mix up X-ray images, only
scan the X-ray images from the selected
patient
Place the barrier envelope with the PSP cen-
i
trally and straight onto the input unit The
opened side of the barrier envelope faces
down, the inactive side of the PSP faces the
operator
The feeder mechanism moves forward auto-
matically and takes hold of the barrier enve-
lope with PSP
Slide the PSP out of its barrier envelope
i
downwards into the device until the PSP is
automatically drawn in
The barrier envelope is held in place by the
feeder mechanism and is not transported
into the unit
Scanning progress is displayed on the touch
screen The image data is automatically
saved to the memory card
The touch screen only shows a pre-
view as an initial impression of the X-
ray image For purposes of diagnosis,
the X-ray image must be viewed on a
diagnostic monitor
After it has been scanned, the PSP is erased
and drops into the collection tray
Remove the empty barrier envelope
i
